Connecting The Telephone Line; Figure 2-2. Ice 5500 Power Socket - Hypercom ICE 5000 Hardware And Installation Operators Manual

Chapter 2
W
ARNING
Disconnect the AC electric power before replacing the printer module.
Do not use an adapter, a power extender adapter, a power extender cable, or an AC outlet that does not
have a ground connection.
Do not disassemble the AC adapter. Only a qualified service technician should service the adapter.
The AC adapter was designed for indoor use only. Do not expose to rain or snow.
Do not immerse in fluid.
The reliability of electronic equipment is significantly reduced when it is powered from an ungrounded
outlet. Power is connected to the terminal through a low-power AC adapter. Connect only one terminal to
each AC adapter.

Connecting the Telephone Line

Use the following procedures to connect a telephone line to the ICE 5000 or 5500 terminals.
Step-by-Step
To connect a telephone line:
1. Insert the telephone cable shipped with the ICE 5000 or 5500 terminal into a dedicated analog
modular telephone receptacle. The use of a different cable might result in improper operation.
2. Insert the other end of the telephone cable into the opening labeled LINE on the back panel of the
ICE 5000 or 5500 terminal.
2-2

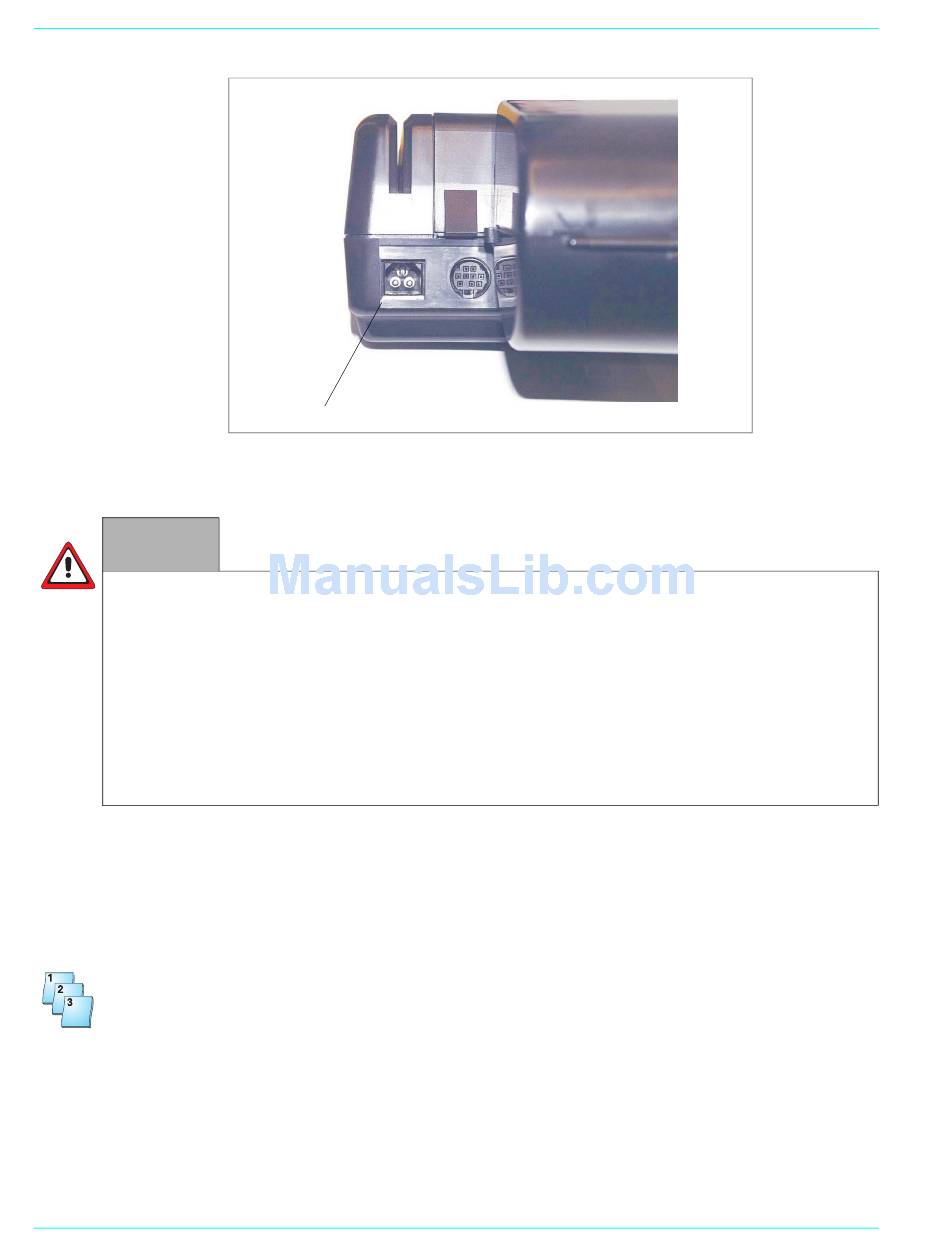

Power socket

Figure 2-2. ICE 5500 power socket

ICE 5000 and 5500 Hardware and Installation Operators Manual 940184-003, rev. B
