Connecting the Telephone Line

Use the following procedures to connect a telephone line to the ICE 5700 terminal.
Step-by-Step
To connect a telephone line:
1. Insert the telephone cable shipped with the ICE 5700 terminal into a dedicated analog modular
telephone receptacle. The use of a different cable might result in improper operation.
2. Insert the other end of the telephone cable into the opening labeled LINE on the back panel of the
ICE 5700 terminal.
3. Ensure that the telephone line cable latches are firmly locked into the jack on the ICE 5700
terminal and wall receptacle.
W
ARNING
Do not insert the telephone line into the PIN pad port.
940310-001, rev. A
Line port

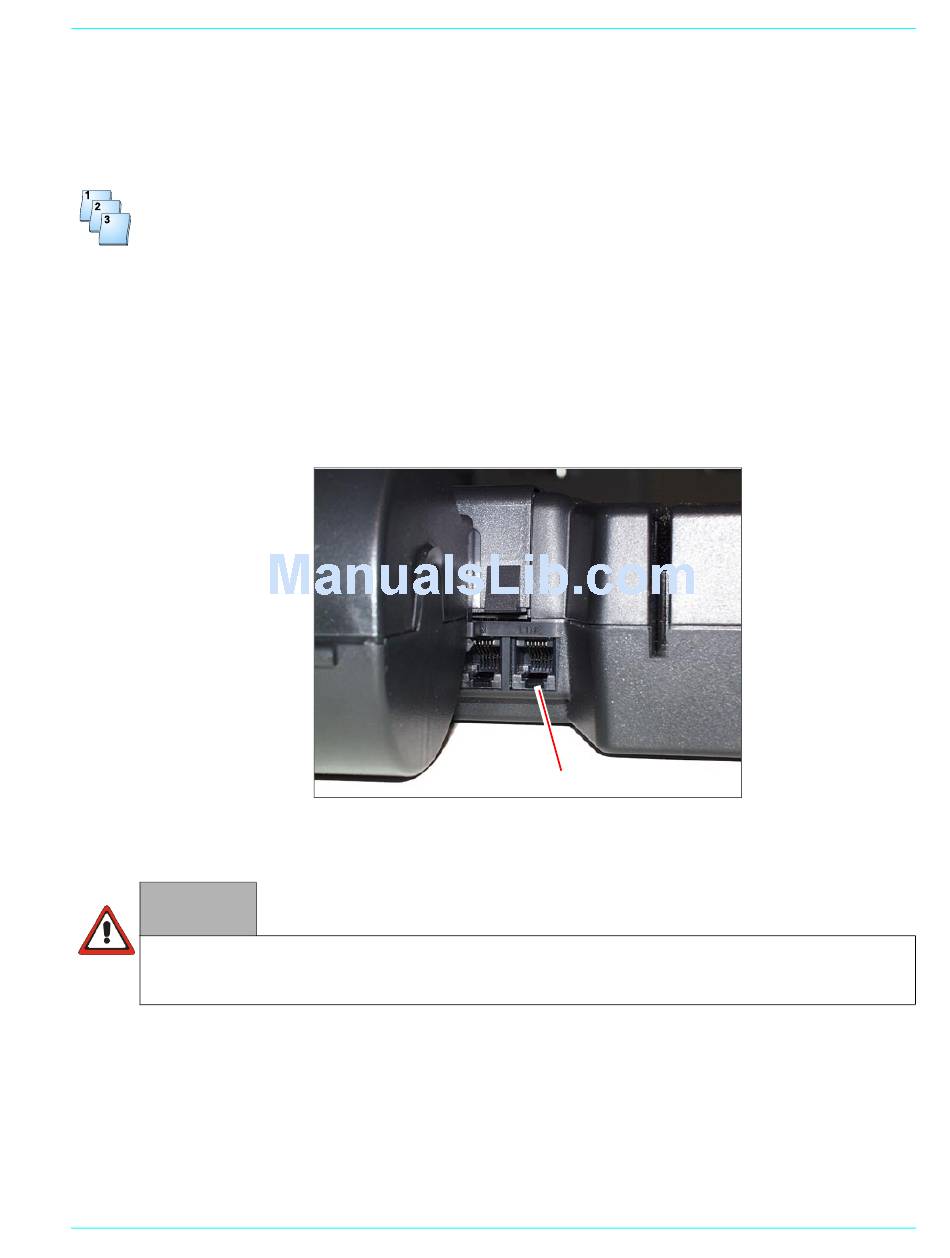

Figure 2-2. ICE 5700 line port

Hypercom Corporation
Installation Procedures
2-3
