Chapter 3

3. Place the end of the paper in the paper guide. The printer then automatically feeds the paper. If

the printer does not automatically feed the paper, proceed with step 4. Otherwise, proceed to step

4. Touch Press here for Menu on the terminal display.

5. Touch Other. The Main prompt appears.

6. Touch Setup. The Other prompt appears.

7. Touch Printer. The Printer prompt appears.

8. Touch Paper Feed. Continue to touch Paper Feed until the paper feeds through the printer tear bar.

9. Close the paper door.

3-6

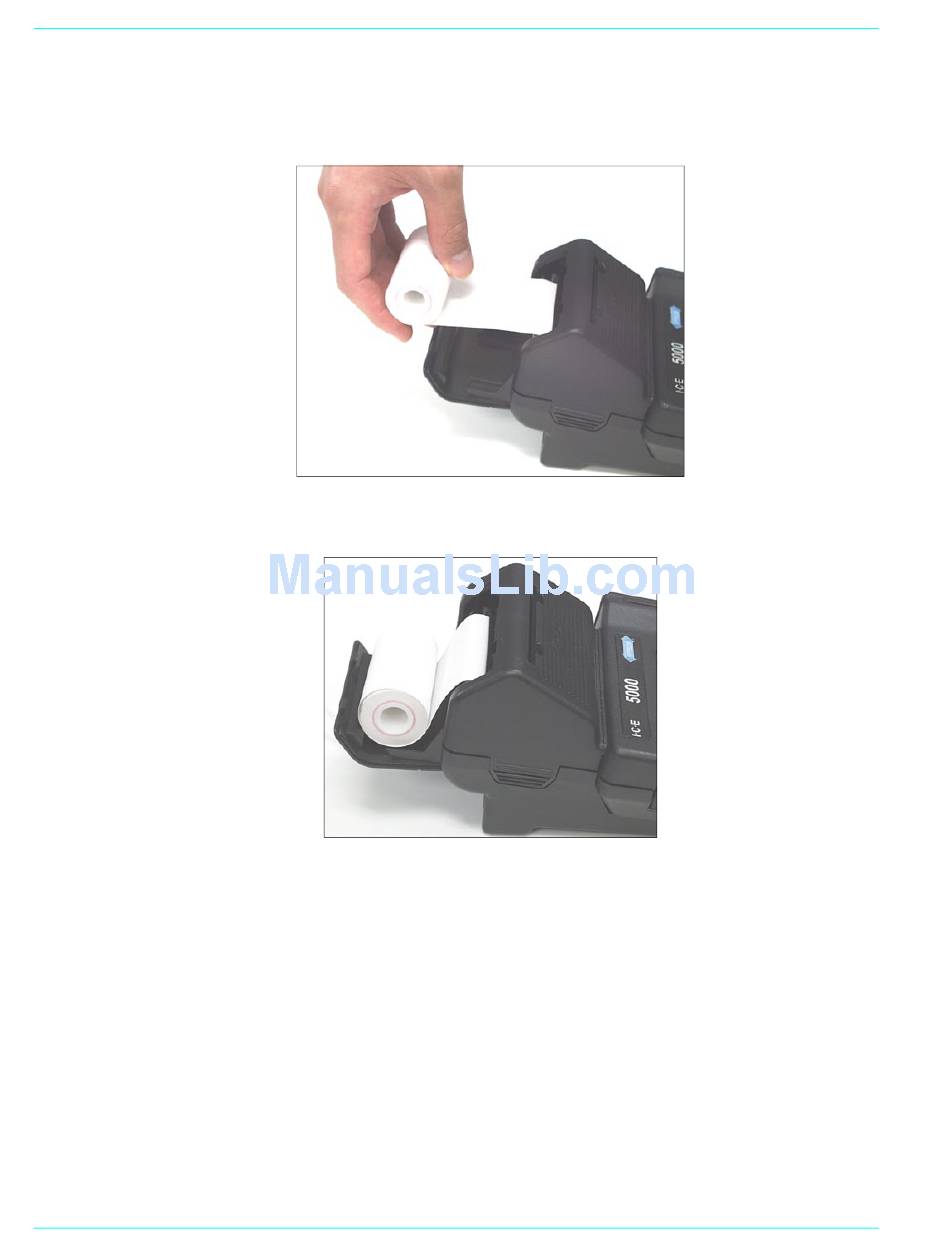

Figure 3-2. ICE 5000 printer paper installation

ICE 5000 and 5500 Hardware and Installation Operators Manual

940184-003, rev. B
