100BASE-TX Description

RJ-45 Connector Pin
Assignments
The 10BASE-T name indicates a signaling speed of 10 Mbps and twisted-pair
wiring. Base stands for baseband, which denotes a technique for transmitting
signals as direct-current pulses rather than modulating them onto separate
carrier frequencies.
A wiring topology using 10BASE-T specifies a wiring hub, cable arranged in a star
configuration, and unshielded twisted-pair cable. Each node has a separate cable
run that must not exceed 328 ft. (100 meters) from the node to the hub.
100BASE-TX is the IEEE 802.3u standard for Fast Ethernet signaling over
Category 5 UTP or STP wire at 100Mbps.
Based on an extension to the IEEE 802.3 Ethernet specification, Fast Ethernet
characteristics include:
A data rate of 100 Mbps
A broadcast architecture
A specific media-access control (MAC) scheme
A wiring topology using 100BASE-TX specifies a wiring hub, cable arranged in a
star configuration, and Category 5 UTP or STP wiring. Each node has a separate
cable run that must not exceed 328 ft. (100 meters) from the node to the hub.

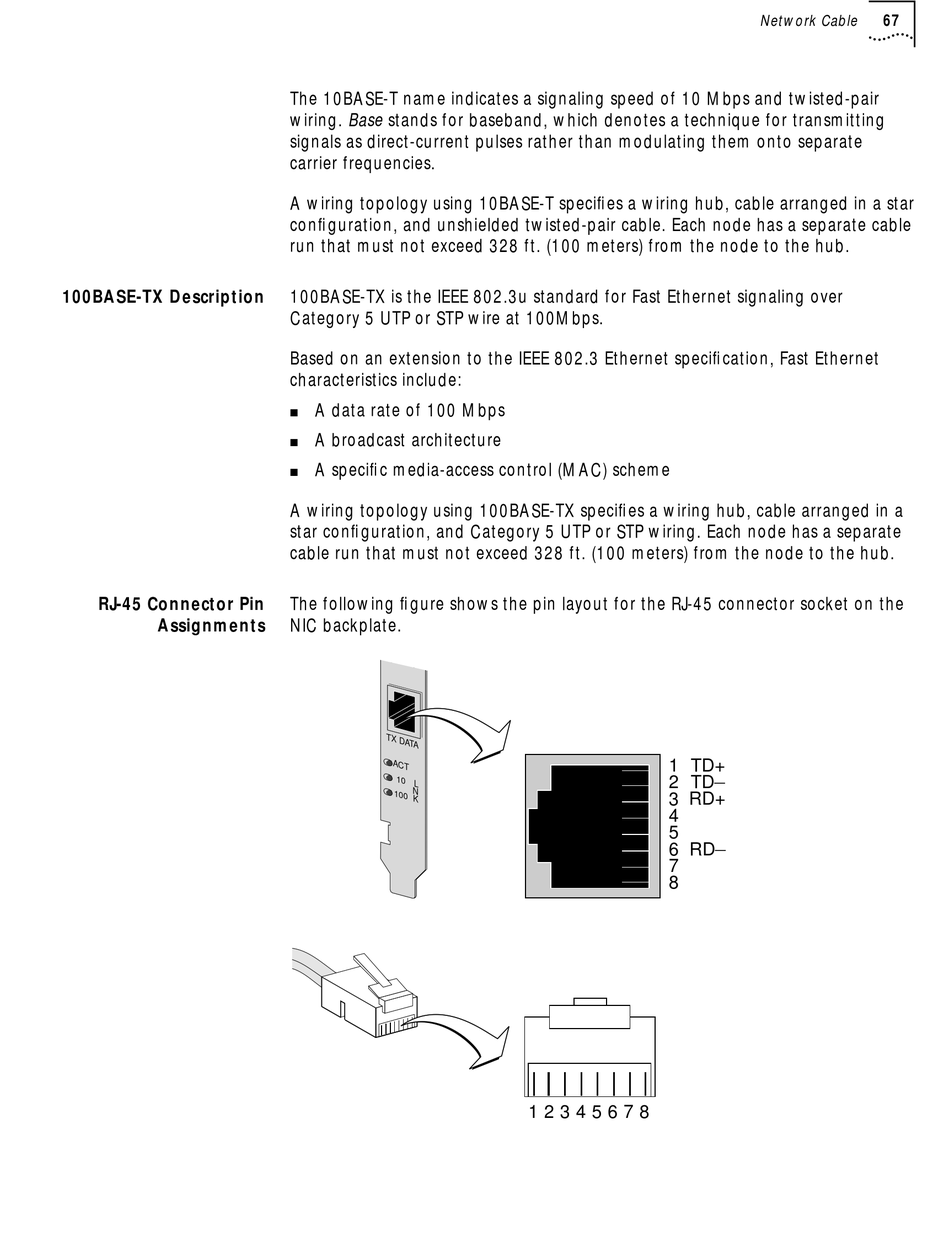

The following figure shows the pin layout for the RJ-45 connector socket on the
NIC backplate.
T X D
A T A
A C T
1 0
L
N
1 0 0
K
1 TD+
TD _
2
3 RD+
4
5
RD _
6
7
8
1 2 3 4 5 6 7 8
Network Cable 67
