FS-8700-72 Secutron Manual
3.
Hardware Connections

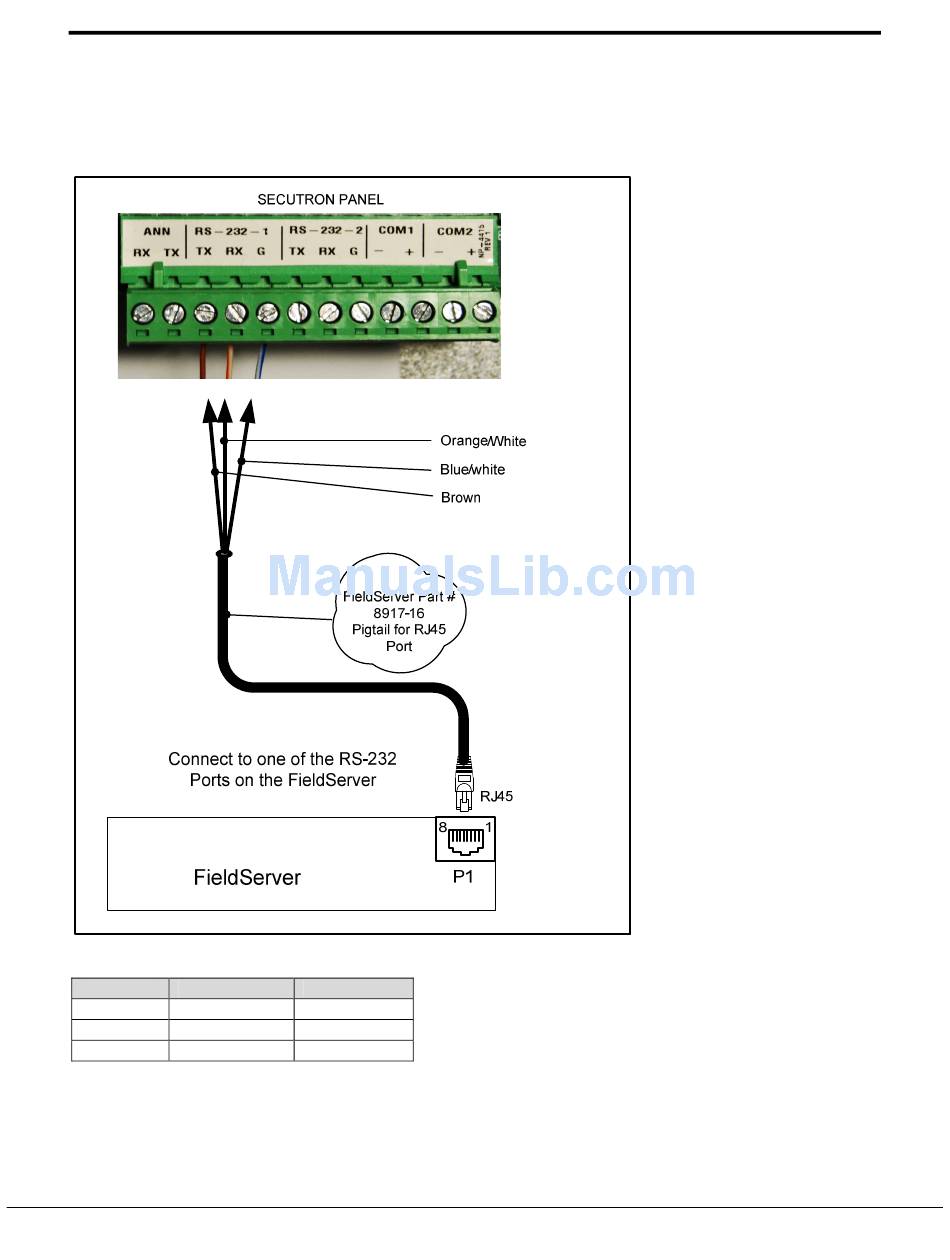

The FieldServer is connected to the panels as shown below.
Configure the panels according to manufacturer's instructions.
Connector Pinouts
RJ-45 Pin
From RJ-45
1
Brown
8
White/Orange
5
Blue/white
FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com
Tel: (408) 262-2299 Fax: (408) 262-2269 Toll Free: 888-509-1970 email: support@fieldserver.com
To Secutron
Tx
Rx
GND
Page 4 of 15
