(Supplement to the FieldServer Instruction Manual)

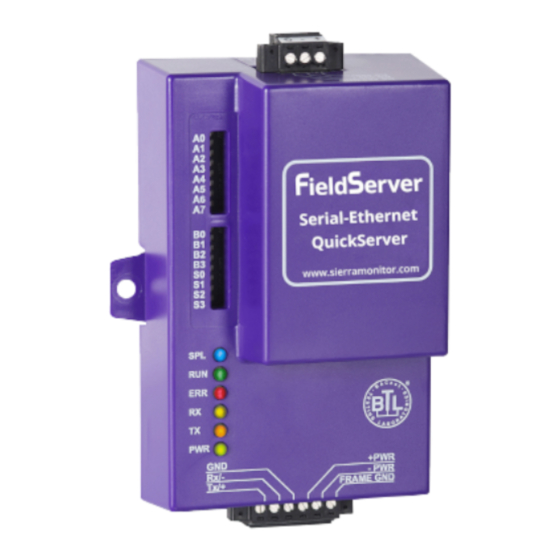

FS-8700-97 Lutron Machine
APPLICABILITY & EFFECTIVITY
Effective for all systems manufactured after November 2011
Driver Manual
Driver Version:
Document Revision:
A Sierra Monitor Company
1.04
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lutron Machine FS-8700-97 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FieldServer Lutron Machine FS-8700-97

Summary of Contents for FieldServer Lutron Machine FS-8700-97

  • Page 1 Driver Manual (Supplement to the FieldServer Instruction Manual) FS-8700-97 Lutron Machine APPLICABILITY & EFFECTIVITY Effective for all systems manufactured after November 2011 A Sierra Monitor Company Driver Version: 1.04 Document Revision:...

  • Page 2: Table Of Contents

    Appendix A.1. Map Descriptor Functions ... 24 FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: support@fieldserver.com Party Equipment ... 3 Table of Contents...

  • Page 3: Lutron Machine Description

    BACNet IP interface to a Lutron eLumen panel. The driver can be configured to represent zones or areas as used in the Lutron eLumen panel. The FieldServer acts as both Client and Server to provide BACNet objects to an external BACNet Client. In Server mode, the FieldServer collects data from the eLumen panel and holds the data ready for reads from an external BACNet Client.

  • Page 4: Hardware Connections

    FS-8700-97 Lutron Machine Manual HARDWARE CONNECTIONS The FieldServer is connected to the Lutron eLumen panel as shown in the connection drawing below: Configure the eLumen panel according to manufacturer’s instructions. CAT 5 CABLE FS-8915-10 FieldServer 120V 15A Dedicated Control Feed...

  • Page 5: Pinouts

    DB9M-08 White RJ45-04 DB9F-05 Black DB9F-07 Brown RJ45-08 DB9M-03 Green FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: support@fieldserver.com Page 5 of 24...

  • Page 6: Data Array Parameters

    Analog_Output , Uint16 Analog_Input , Uint16 FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: support@fieldserver.com , Data_Array_Length , 512 , 512 , 512...

  • Page 7: Configuring The Fieldserver As A Lutron Machine Client

    This section documents and describes the parameters necessary for configuring the FieldServer to communicate with a Lutron eLumen panel. The configuration file tells the FieldServer about its interfaces, and the routing of data required. In order to enable the FieldServer for Lutron eLumen communications, the driver independent FieldServer buffers need to be declared in the “Data Arrays”...

  • Page 8: Client Side Node Parameters

    Starting location in Data Array Function Function of Client Map Descriptor FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: support@fieldserver.com , Port , Node_Type , P1...

  • Page 9: Driver Related Map Descriptor Parameters

    Function Scan_Interval Rate at which data is polled FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: support@fieldserver.com Legal Values specified Descriptor” above Area Machine:...

  • Page 10: Map Descriptor Example 1 - Binary Output (Zone And Area Machine)

    ScriptB will be run when writing non-zero into the object ID FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: support@fieldserver.com Page 10 of 24...

  • Page 11: Map Descriptor Example 2 - Binary Input (Zone Machine)

    , Data_Array_Offset Zone_int_0 , Binary_Input FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: support@fieldserver.com Page 11 of 24 , Location , Function , Node_Name...

  • Page 12: Map Descriptor Example 3 - Binary Input (Area Machine)

    // Binary Input Object ID 2 off_scene , Uint16 FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: support@fieldserver.com Page 12 of 24 , Function , Node_Name...

  • Page 13: Map Descriptor Example 4 - Analog Output 1 (Area Machine)

    Length field in association with increasing offset into the Data Array. FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: support@fieldserver.com Page 13 of 24...

  • Page 14: Map Descriptor Example 5 - Analog Output 1 (Zone Machine)

     Fill in time values under Preload_Data_Value FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: support@fieldserver.com Page 14 of 24 , Function , Node_Name...

  • Page 15: Map Descriptor Example 6 - Analog Output 2 (Zone And Area Machine)

    Run_script_512 , Analog_Output , 512 FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: support@fieldserver.com Page 15 of 24 , Location , Function , Node_Name...
  • Page 16 , Uint16 Scr_lst_AO2_513 , Uint16 FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: support@fieldserver.com Page 16 of 24 , Preload_Data_Value , Location , 100...

  • Page 17: Map Descriptor Example 7 - Analog Input (Area Machine)

    , Analog_Input FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: support@fieldserver.com Page 17 of 24 , Data_Type , Object_ID , Length , Relinquish_Default , Data_Array_Low_Scale , Data_Array_High_Scale , Node_Low_Scale , Node_High_Scale...

  • Page 18: Map Descriptor Example 7 - Analog Input (Area Machine)

    , Analog_Input FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: support@fieldserver.com Page 18 of 24 , Data_Type , Object_ID , Length , Relinquish_Default , Data_Array_Low_Scale , Data_Array_High_Scale , Node_Low_Scale , Node_High_Scale...

  • Page 19: Map Descriptor Example 8 - Analog Input (Zone Machine)

    , Data_Array_Offset Zone_inta_0 , Analog_Input FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: support@fieldserver.com Page 19 of 24 , Function , Node_Name , Data_Type...

  • Page 20: Map Descriptor Example 9 - Multistate Output (Zone And Area Machine)

    The scripts per object element must be preloaded into the Data Array defined under “DA_Lut_List”: FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: support@fieldserver.com Page 20 of 24...
  • Page 21 Scr_lst_MSO_1 Uint16 Scr_lst_MSO_1 Uint16 FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: support@fieldserver.com Page 21 of 24 Preload_Data_Value Location , 110 , 210...

  • Page 22: Map Descriptor Example 10 - Binary Value (Zone And Area Machine)

    , Data_Array_Offset Zone_var_0 , Binary_Value FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: support@fieldserver.com Page 22 of 24 , Function , Node_Name , Data_Type...

  • Page 23: Map Descriptor Example 11 - Analog Value (Zone And Area Machine)

    Binary Value Map Descriptors in terms of the Sys_Var and Length fields to ensure system variable values will be stored correctly. FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: support@fieldserver.com Page 23 of 24...

  • Page 24: Appendix A. Useful Features

    This function is used to effect a single data write per trigger. The write only occurs when the Data Array is updated. The Server device writes to the FieldServer’s Data Arrays, and the Client device reads the data Passive_Client from the same Data Arrays.
