IP routing is enabled, RIP is active,
ICMP discovery is disabled.
Index Type
1 VLAN
Index Type
2 LIS
IP forwarding is enabled, RIP is active,
ICMP discovery is disabled.
Index Type IP address
1 VLAN 158.101.1.1
Index Type IP address
2 LIS 158.101.112.1
4 Advertisement Addresses:
158.101.112.200 158.101.112.203 158.101.112.204 158.101.112.205
atmArpServer
47-0000-00-000000-0000-0000-00cc-080001200054-ff
maxSvcCount
1PVC:
1/32
Defining an IP LIS
Interface
Top-Level Menu
system
interface
ethernet
route
summary
fddi
arp detail
atm
atmArpServer
define
bridge
multicast
modify
ip
udpHelper
remove
ipx
routing
addAdvertisement
appletalk
icmpRouterDiscovery
removeAdvertisement
snmp
rip
addPVC
analyzer
ping
removePVC
script
statistics
logout
IP R
OUTING

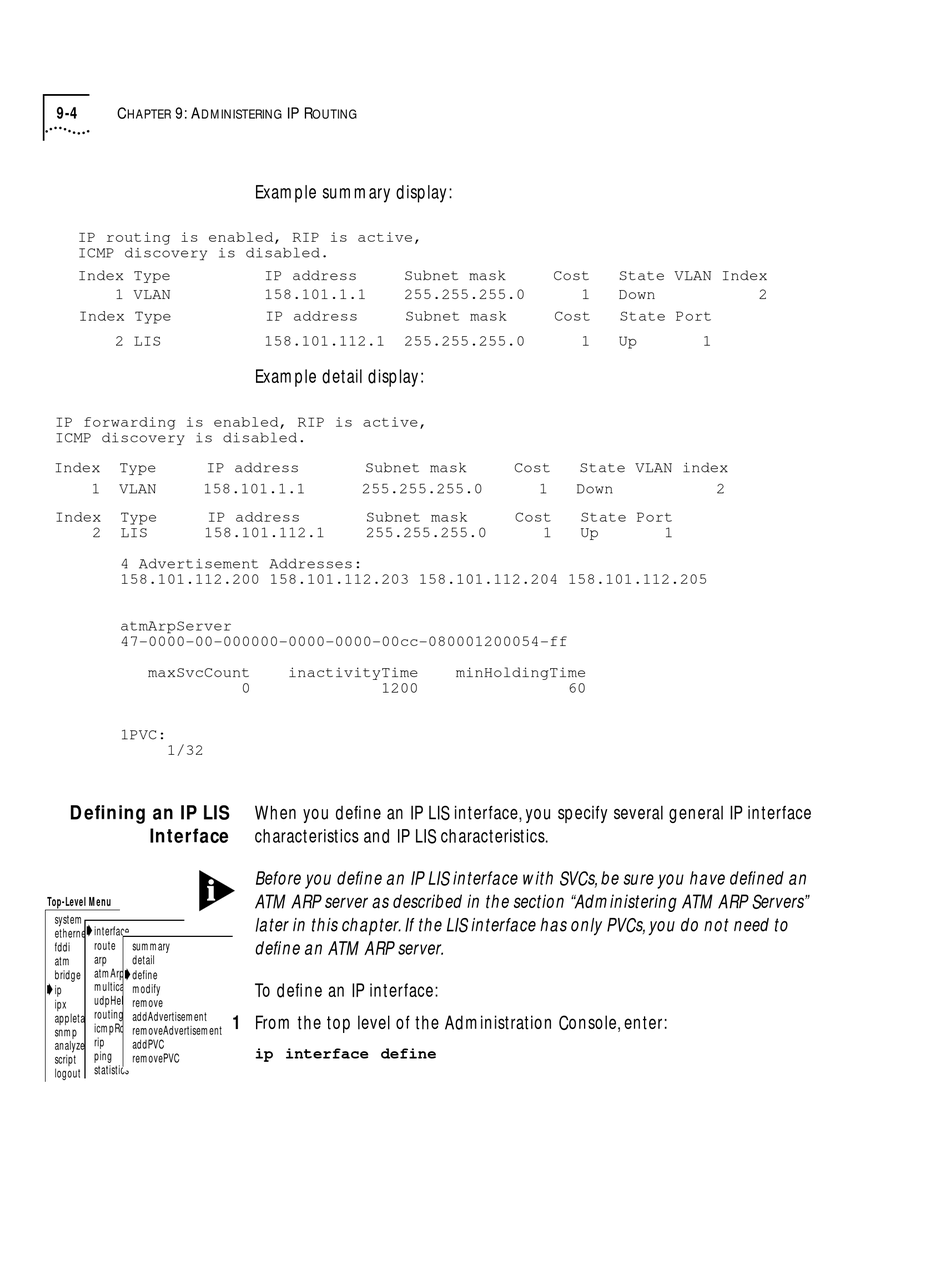

Example summary display:
IP address
158.101.1.1
IP address
158.101.112.1
Example detail display:
Subnet mask
255.255.255.0
Subnet mask
255.255.255.0
inactivityTime
0 1200
When you define an IP LIS interface, you specify several general IP interface
characteristics and IP LIS characteristics.
Before you define an IP LIS interface with SVCs, be sure you have defined an
ATM ARP server as described in the section "Administering ATM ARP Servers"
later in this chapter. If the LIS interface has only PVCs, you do not need to
define an ATM ARP server.
To define an IP interface:
1 From the top level of the Administration Console, enter:
ip interface define
Subnet mask Cost
255.255.255.0
Subnet mask Cost
255.255.255.0
Cost
1
Cost
1
minHoldingTime
60
State VLAN Index
1 Down
State Port
1 Up 1
State VLAN index
Down 2
State Port
Up 1
2
