2. Enter the following fields.
Enable LDAP
Server
Port
Base
Bind Name
SLC™ Console Manager User Guide

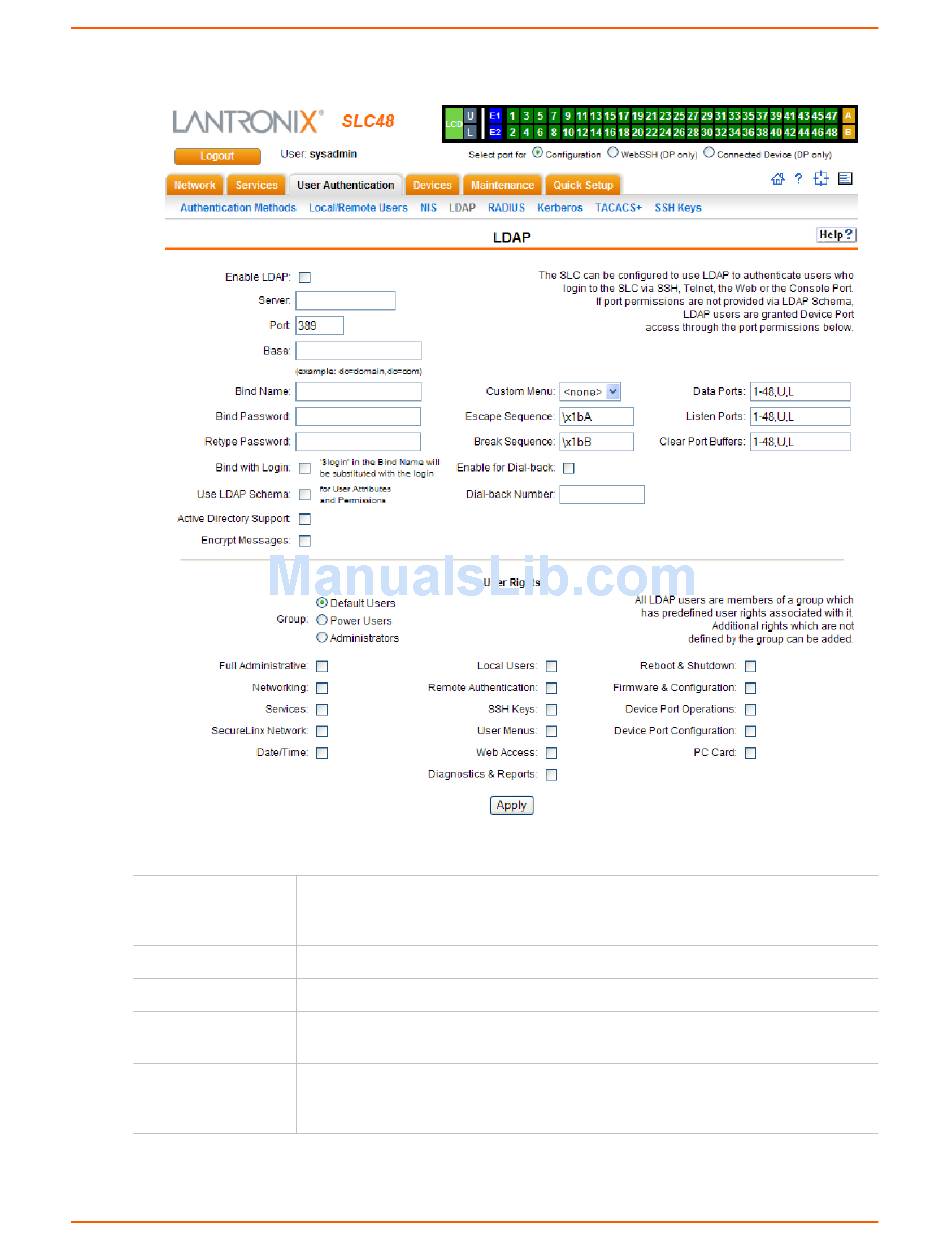

Figure 12-6 LDAP Page

Displays as checked if you enabled this method in the User Authentication
Methods page. If you want to set up this authentication method but not enable it
immediately, clear the checkbox.
Enter the IP address or host name of the AD server.
Enter the TCP port number of the AD server. The default is 389.
Enter the LDAP search base for your AD Domain (e.g., dc=company, dc=com).
Can have up to 80 characters.
Enter the Windows AD username that gets used for a non-anonymous bind to an
LDAP server. This item has the same format as LDAP base. An example is:
cn=administrator,cn=Users,dc=domain,dc=com
