6.3 The HOME Page

The following page appears when the web page is first opened or when it is refreshed:
VISA Name Using IP Address
For automation programming, VISA is a type of communication driver. For LAN instruments, the
IP address may be used in the VISA resource descriptor. See section 4.4.
VISA Name Using Hostname
For automation programming, an alternate VISA resource descriptor using the power supply
hostname. Refer section 4.5
RS-485 Address
This address only applies to a multi-drop chain of power supplies. The RS-485 address of the LAN
supply is also called the master supply.
Hostname
A unique name for a device on a network. The default hostname is described in section 4.5 and
it is configured in section 6.6.2. If the hostname is not registered with the network name server,
then the IP address will be shown here.
Auto-MDIX
The LAN will automatically detect if a patch or cross-over LAN cable is used.
Auto-Negotiate
The LAN will automatically adjust to the fastest speed available.
Logging In
To change power supply output or the LAN settings, a user must first log in.
Click the "Login" button at the bottom-left side of the web page and a window appears.
The only acceptable user name, "admin", is shown. By default, password is empty. Click "Login".
The password may be set or removed on the LAN -> Users web page.
A front panel LAN Reset will clear the password (see section 6.6.5)

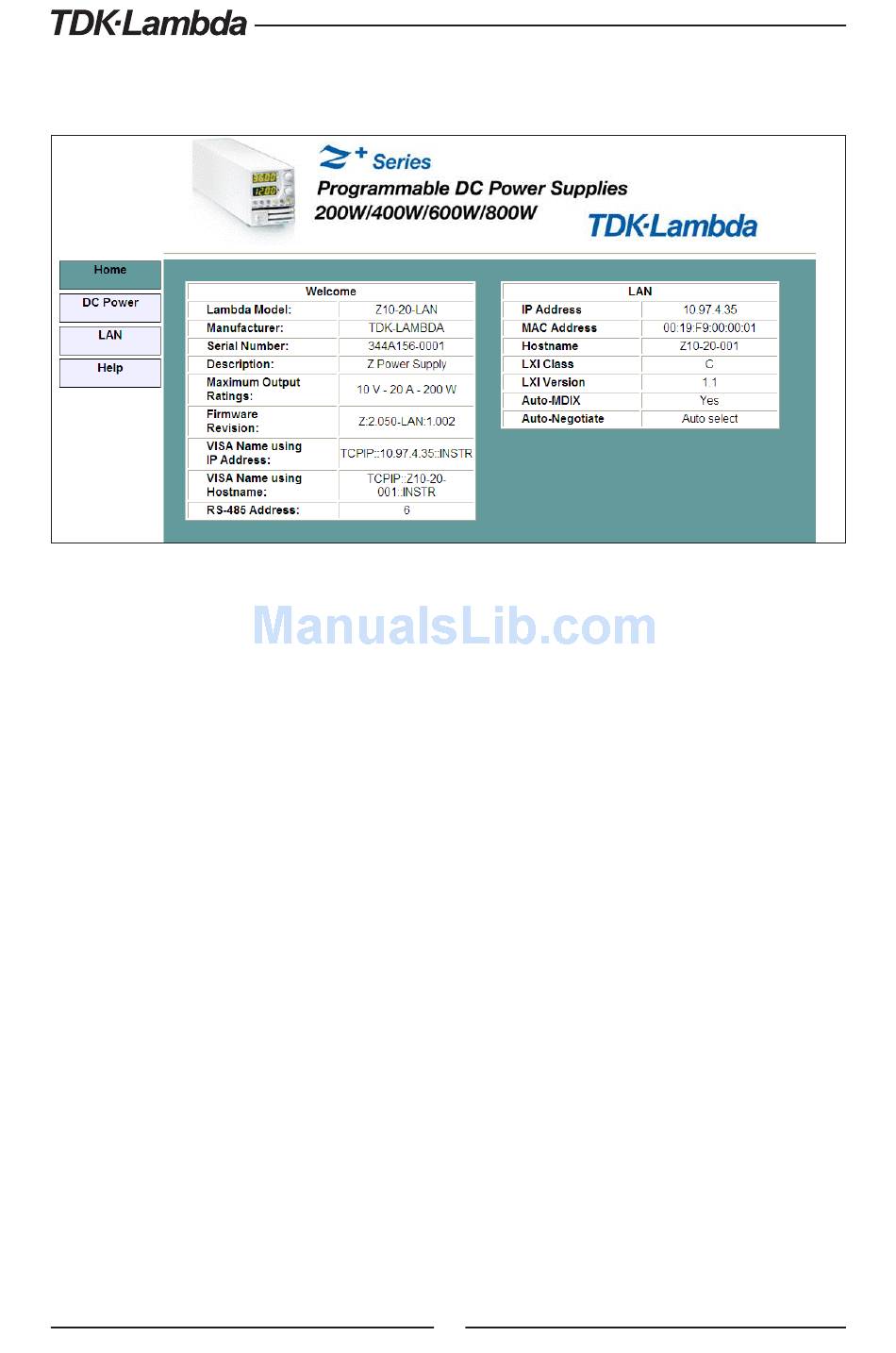

Fig.6-1: Web HOME Page
