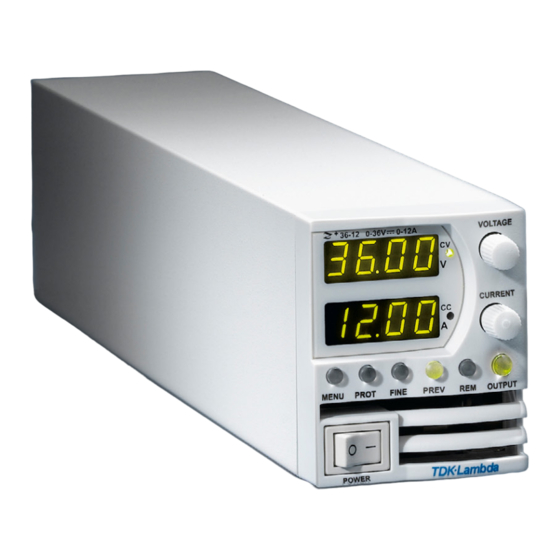

TDK-Lambda Z+ Series User Manual

Programmable dc power supplies 200w/400w/600w/800w in 2u built-in usb, rs-232 & rs-485 interface
Hide thumbs Also See for Z+ Series:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Series
Programmable DC Power Supplies
200W/400W/600W/800W in 2U
Built-in USB, RS-232 & RS-485 Interface
User Manual
Optional Interface:
LXI Compliant LAN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z+ Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TDK-Lambda Z+ Series

Summary of Contents for TDK-Lambda Z+ Series

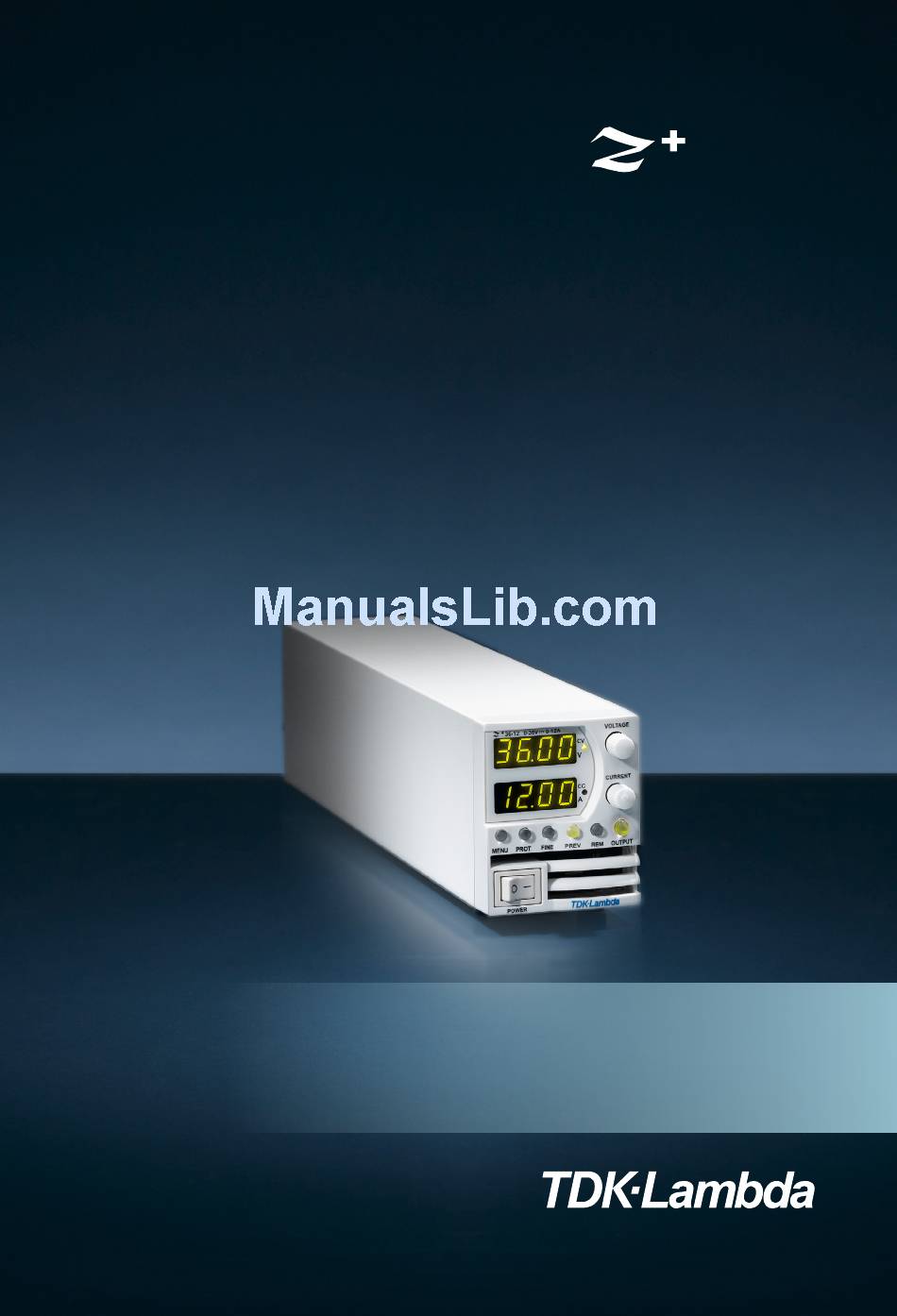

  • Page 1 Series Programmable DC Power Supplies 200W/400W/600W/800W in 2U Built-in USB, RS-232 & RS-485 Interface User Manual Optional Interface: LXI Compliant LAN...

  • Page 2: Power Supplies

    USER MANUAL FOR LAN Interface POWER SUPPLIES Manual Supplement Refer to the Z Technical Manual for information on installing the power supply, safety requirements, specifications, operating the front panel, using the serial RS-232/485 USB programming and the analog programming. IA710-04-02A...

  • Page 3: Table Of Contents

    Contents 1 GENERAL INFORMATION 1.1 Introduction ............................4 1.2 Feature Summary ..........................4 2 SPECIFICATIONS 2.1 Power Supply Specifications ......................5 2.2 LAN Specifications ..........................5 2.3. LAN Command Speed ........................7 3 SELECT THE CONTROL METHOD 3.1 Control Method Options ......................... 8 3.1.1 Select Local (Front Panel) Mode ........................8 3.1.2 Select Serial (RS-232 &...
  • Page 4 8 PROGRAMMING USING SOCKETS 8.1 Socket Description ........................... 25 8.2 Communicating Using Sockets ....................25 8.3 Controller Access: Single and Multiple Clients ..............25 8.4 Input Buffer Requirements ......................25 9 CONNECTING OVER WAN 9.1 View Web Pages Over WAN ......................26 9.2 Use Sockets Over WAN ........................

  • Page 5: General Information

    1 GENERAL INFORMATION 1.1 Introduction The Local Area Network (LAN) option for the Z series power supply allows the user to remotely program, measure and check status of the power supply. A computer web page browser can be used to operate the power supply through a built-in web page server.

  • Page 6: Specifications

    Accepts patch or cross-over cable connection Auto-Negotiate Selects fastest of 10Base-T or 100Base-T networks (10 or 100 Megabits per second) NETWORK CONFIGURATION MAC Address TDK-Lambda assigned: 00:19:f9:xx:xx:xx IP Address View or set from front panel DHCP Get address from network server. Leasing services Auto-IP Create own IP address: 169.254.xx.xx...
  • Page 7 Active Control GUI Program and read output settings Send Commands Send SCPI commands, read errors Help Link to TDK-Lambda web sites SUPPLY CONFIGURATIONS Local Control Supply may be run from front panel even if LAN is monitoring LAN Remote Control...

  • Page 8: Lan Command Speed

    2.3. LAN Command Speed The following communication speeds are typical values only. In addition to the variability in the Z LAN interface, there are timing variations within the controller and the network routing. The following speed specifications are subject to change without notice. VISA Drive Typical Command or query speeds: Most Commands and Queries...

  • Page 9: Select The Control Method

    3 SELECT THE CONTROL METHOD 3.1 Control Method Options The power supply with the LAN option installed, may be operated through four interfaces. This section describes how to enable each option. MODE MODE DESCRIPTION Control using an Ethernet connection LAN will disable the J4-IN serial port Local Control using the front panel encoders and buttons LAN can be used to measure and read Serial...

  • Page 10: Link Led

    LAN Option Rear Panel View The power supply rear panel, with the LAN option installed, is shown below. Fig.3-1: Rear Panel LAN Features 1. Link LED 2. Activity LED 3. RJ-45 Socket 4. LAN Status LEDS 3.1.4 Link LED LED embedded in the RJ-45 socket glows green when the connection is made to an active network. 3.1.5 Activity LED Amber LED blinks when any message packets are detected.

  • Page 11: Connect To Network

    4 CONNECT TO NETWORK 4.1 LAN Cable The LAN cable must be supplied by the customer. It may be a standard straight “patch” CAT-5 (or better) network cable or it may be a “crossover” cable where the pins are reversed on one end. The cable type is auto-detected by the power supply.

  • Page 12: Power-Up The Lan Power Supply

    4.3 Power-up the LAN Power Supply The Z power supply LAN option automatically detects if it is connected or disconnected from a network. It will also automatically look for a network server and it will retrieve or create an IP address.

  • Page 13: Hostname

    4.5 Hostname The hostname is a text address instead of a numeric address (for example: Z10-40-29B). This address mode is less common than the IP address because the hostname cannot be viewed from the front panel, and because a naming service (such as NetBIOS) must be running in the LAN computer.

  • Page 14: Lan Setup

    5 LAN SETUP 5.1 View the IP and MAC Addresses When the power supply is operating with the LAN enabled, the IP and MAC addresses may be viewed on the front panel by following these steps: To view the IP address: 1.
  • Page 15 The default LAN settings are: DHCP is enabled If DHCP fails to get a lease, the auto-IP settings will be obtained: IP address: 169.254.xxx.xxx Subnet mask: 255.255.0.0 Default gateway 0.0.0.0 DNS Server 0.0.0.0 Hostname: vvv-aaa-sn Description: “ Power Supply” One Client Only Controller Access Enabled Ping Server:...

  • Page 16: Web

    6 WEB PAGES 6.1 Benefit of Web Pages The Z web pages are useful for: • Reading the power supply model, identity, revision and LAN setup information • Configuring the LAN connection • Programming and reading the power supply DC output 6.2 Opening the HOME Page Once the rear panel LAN Status LED has turned green (see Section 4.3), you may open the Z page.

  • Page 17: The Home Page

    6.3 The HOME Page The following page appears when the web page is first opened or when it is refreshed: Fig.6-1: Web HOME Page VISA Name Using IP Address For automation programming, VISA is a type of communication driver. For LAN instruments, the IP address may be used in the VISA resource descriptor.

  • Page 18: Dc Power Page

    6.5 DC Power Page When the “DC Power” tab is clicked, the following web page opens. This page and its sub-menus allow you to operate the power supply and adjust its output settings. 6.5.1 DC Power ➔ Output Page When the “DC Power” tab is selected, the “Output” soft front panel (GUI) loads first. Refresh List When this button is clicked, the web page will scan to find connected Multi-drop power supplies and put the discovered addresses into the list box.

  • Page 19: Dc Power ➔ Protection Page

    6.5.2 DC Power ➔ Protection Page Under the “DC Power” tab, a “Protection” button is available at the top of the panel. When opened, the window allows you to view and set four protections. A. Over-Voltage Protection Limit B. Under-Voltage Limit C.

  • Page 20: Dc Power ➔ Utility Page

    6.5.4 DC Power ➔ Utility Page This page is used to send any SCPI command and see the response. It is a learning tool for SCPI operation and it allows commands which are otherwise not on the web pages. Type any SCPI message into the top text box. Then click the “Send and Read” button. For commands, there is no response.

  • Page 21: Lan ➔ Configure ➔ Modify Page

    Subnet Mask Displays the subnet mask assigned to the power supply through either DHCP, Auto-IP or Static IP. Default Gateway Address of the network router to allow the power supply to communicate outside of the local subnet. DNS Server Address of the server running the Domain Naming Service. This is used for hostname addressing. Hostname The power supply hostname may be used instead of the IP address to create a communication link.

  • Page 22: Lan ➔ Advanced Page

    TCP/IP Mode This selects how the power supply receives network settings. Select either: • DHCP Assigned / AUTO IP: If this mode is selected, the network server uses DHCP to assign the IP address, subnet mask, default gateway and DNS server. Since the server assigns these, they are disabled (gray) on the web page.

  • Page 23: Lan ➔ Advanced ➔ Modify Page

    LAN Keep-Alive If you are logged in this is how many seconds the web pages may be inactive (idle) before the power supply automatically logs you out. The default is 1800 seconds = 30 minutes. Ping Server ‘Ping’ is a network utility that allows the computer to verify communication with the LAN power supply.

  • Page 24: Lan ➔ Users Page

    Once a password is applied, it may be changed by using the same screen, but it can only be removed by performing the “LAN Reset” function from the power supply front panel or SCPI command. 6.7 HELP Page A Help tab is available. This page is a set of Internet links to TDK-Lambda’s website pages.

  • Page 25: Programming Using Visa Drivers

    7 PROGRAMMING USING VISA DRIVERS 7.1 VISA Description In the test and measurement industry, Virtual Instrument Software Architecture (VISA) is a popular framework that includes hardware drivers, configuration utilities and connection managers. A variety of communication busses are supported. VISA drivers are available from several instrument vendors.

  • Page 26: Programming Using Sockets

    8 PROGRAMMING USING SOCKETS 8.1 Socket Description The VISA drivers for the Z power supply with LAN are popular in the Test and Measurement world. However, some customers cannot use VISA because of installation or licensing issues or because the controller (i.e.: industrial PLC) does not support VISA. If you cannot use VISA drivers, then the Z with LAN offers socket connections.

  • Page 27: Connecting Over Wan

    8.5 Message Terminators When you are using a program that sends separate SCPI commands out through a TCP socket, the socket drivers may combine all the messages into one long packet. Therefore, it is necessary to add a terminator character to the end of each SCPI command. All SCPI commands must have a terminator character.

  • Page 28: Command Set

    10 COMMAND SET For the complete command set, please refer to Z Instruction Manual. 10.1 Lan Specific Commands 10.1.1 Read the Hostname The hostname may be read with this query Syntax: SYSTem:COMMunicate:LAN:HOST? Example: SYST:COMM:LAN:HOST? Response: The hostname string,up to 16 characters long Example: Z10-40-123 is a typical default hostname 10.1.2 Read the IP Address The IP address may be read with this query...

  • Page 29: Rs-485 Multi-Drop Commands

    11 RS-485 MULTI-DROP COMMANDS 11.1 Introduction The Z power supply LAN option allows you to control up to 29 other supplies which do not have the LAN option installed. All are controlled through one IP address from the supply with the LAN option.

  • Page 30: Connect And Configure The Rs-485 Supplies

    11.3 Connect and Configure the RS-485 Supplies The RS-485 linked power supplies are called the Slave supplies. They may be individually commanded and queried using the LAN port on the Master supply. 11.3.1 To Set Up an RS-485 Chain A. Set the supply into RS-485 mode as described in section 3.1.2 B.

  • Page 31: Selecting A Supply

    11.4.3 Selecting a Supply This command will select one power supply in a multi-drop chain. Subsequent commands and queries will operate only on that supply, until a new one is selected. At power-up, the LAN supply is automatically selected. Syntax: INSTrument:nSELect <nn>...

  • Page 32: Troubleshooting

    12 TROUBLESHOOTING Cannot See the IP Address, LAN Status LED Stays Red If “IP1-IP4” does not show, then LAN is not enable. To fix this: A. Switch the power supply AC OFF. B. Verify the LAN is selected (see section 3.1.3). C.
  • Page 33 Cannot View Web Pages Over a Peer-to-Peer Network If there is no gateway to a network, verify the proxy server is disabled in the web browser. With Microsoft Internet Explorer, open the browser and, on the toolbar, navigate: “Tools” ➔ “Internet Options…” ➔ “Connections” ➔ “LAN Settings…” and see the windows open: Verify the “Proxy server”...
  • Page 34 Web Page “Refresh List” Does Not Find Slave Supplies When you are using a LAN Multi-drop chain of supplies (see section 11), the web page Refresh List button should detect all the connected RS-485 slave supplies. If it does not: A.
  • Page 35 NOTES...
  • Page 36 NOTES...
  • Page 37 NOTES...
  • Page 38 Fax: +81-3-5201-7287 www.tdk-lambda.com CHINA TDK-Lambda UK Ltd. Kingsley Avenue Ilfracombe, Devon Shanghai Branch of Wuxi TDK-Lambda Electronic Co. Ltd. 28F, Xingyuan Technology Building No.418, Guiping Road, EX 34 8ES United Kingdom Tel: +44-1271-856666 Fax: +44-1271-864894 Shanghai, China 200233 E-mail: powersolutions@uk.tdk-lambda.com Tel: +86-21-6485-0777 Fax: +86-21-6485-0666 www.
