Apply
Click this button to save the new settings.
Close
Click this button to close the window.

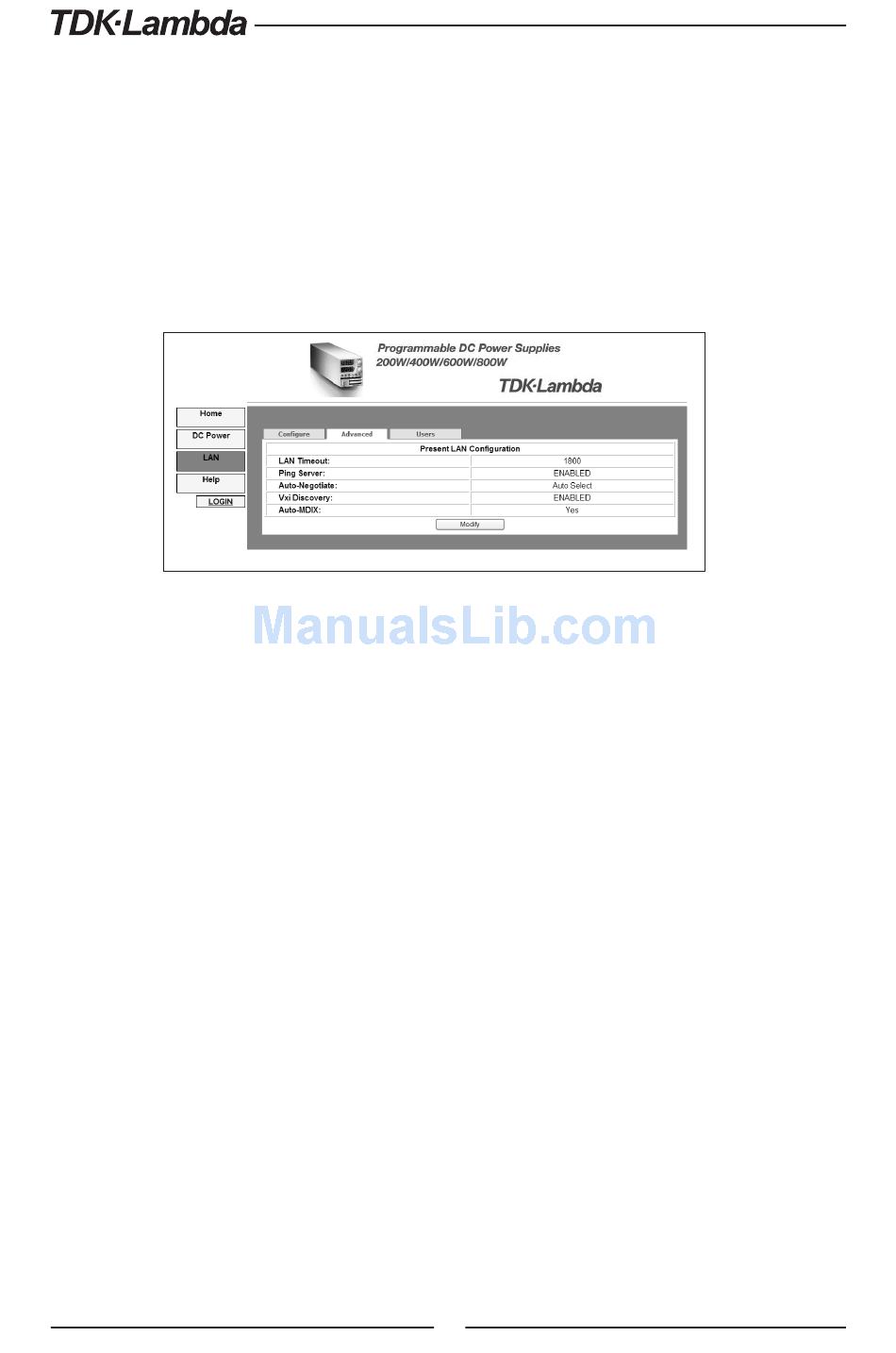

6.6.3 LAN ➔ Advanced Page
Click the "LAN ➔ Advanced" button to view and set four advanced LAN settings:
LAN Keep-Alive
If you are logged in this is how many seconds the web pages may be inactive (idle) before the
power supply automatically logs you out.
The default is 1800 seconds = 30 minutes.
Ping Server
'Ping' is a network utility that allows the computer to verify communication with the LAN power
supply. This service may be disabled in the "Modify" panel.
Auto-Negotiate
This shows the network speed that the LAN card is allowed to operate at.
VXI Discovery
This is a protocol which allows the network server to detect what instruments are connected to
the LAN. It may be disabled in the "Modify" panel for security reasons.
Auto-MDIX
This service is always enabled in the power supply. The power supply LAN connection will always
detect a patch or cross-over cable.
Modify
After logging in, click this button to open the window shown below.
6.6.4 LAN ➔ Advanced ➔ Modify Page
In the window below, you may enter new values for the LAN settings. Changes to these setting
will take place when the "Apply" button is clicked.
