TDK-Lambda Z+ series User Manual

TDK-Lambda Z+ series User Manual

Programmable dc power supplies 200w/400w/600w/800w in 2u built-in usb, rs-232 & rs-485 interface, optional interface: ieee488.2 scpi (gpib) multi-drop
Hide thumbs Also See for Z+ series:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Series
Programmable DC Power Supplies
200W/400W/600W/800W in 2U
Built-in USB, RS-232 & RS-485 Interface
User Manual
Optional Interface:
IEEE488.2 SCPI (GPIB) Multi-Drop

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z+ series and is the answer not in the manual?

Questions and answers

Related Manuals for TDK-Lambda Z+ series

Summary of Contents for TDK-Lambda Z+ series

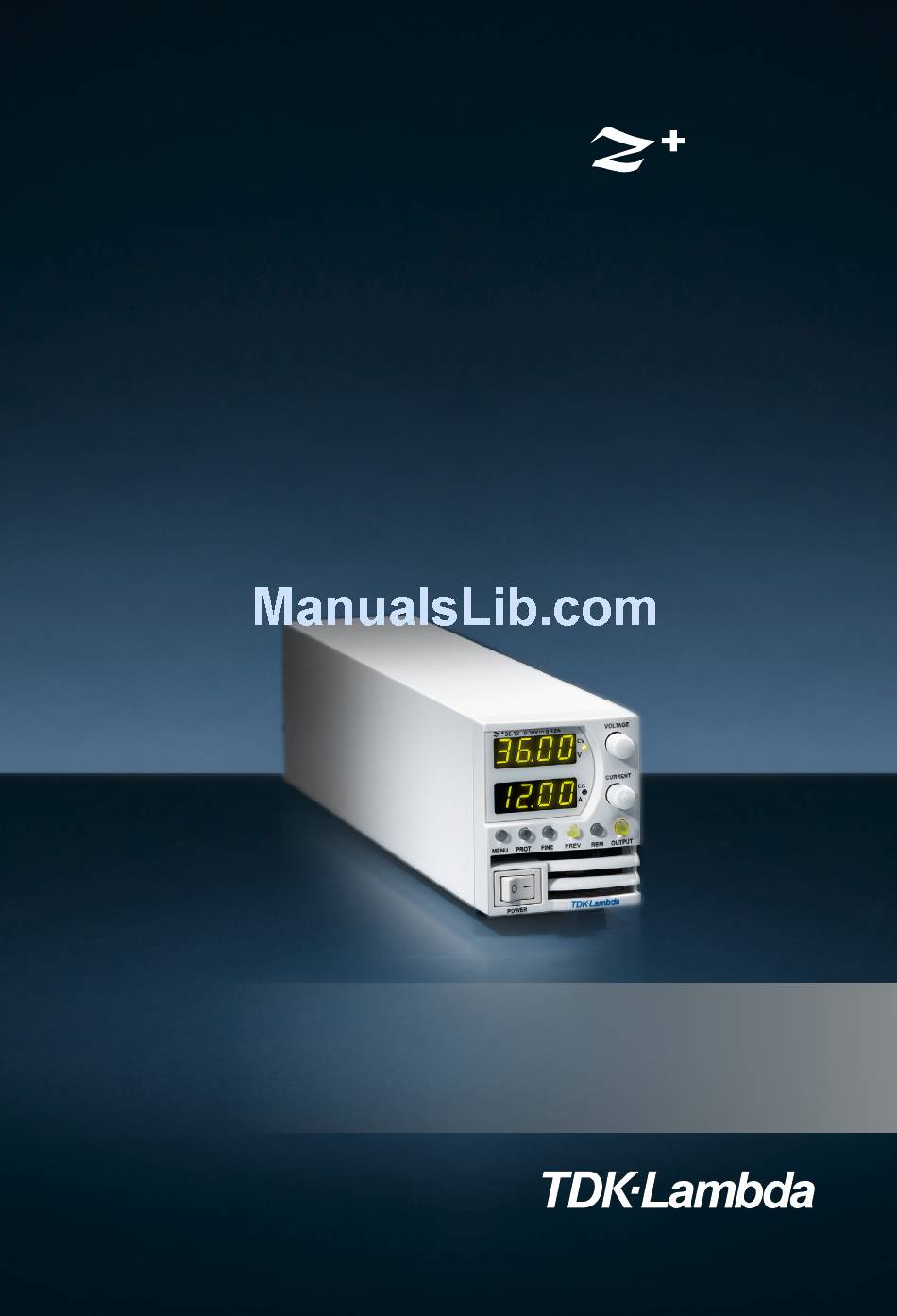

  • Page 1 Series Programmable DC Power Supplies 200W/400W/600W/800W in 2U Built-in USB, RS-232 & RS-485 Interface User Manual Optional Interface: IEEE488.2 SCPI (GPIB) Multi-Drop...

  • Page 2: Power Supplies

    USER MANUAL FOR IEEE Programming Interface POWER SUPPLIES Manual Supplement Refer to the Z Technical Manual for information on installing the power supply, safety requirements, specifications, operating the front panel, using the serial RS-232/485, USB programming and the analog programming. IA710-04-03A...

  • Page 3: Table Of Contents

    Table of Contents INTRODUCTION ......................3 SCOPE OF MANUAL .....................3 CHAPTER 1: THE IEEE-488.2 INTERFACE ..............3 CHAPTER 2: CONNECTION 2.1 Point to Point ............................4 2.2 Multi Drop ............................4 2.2.1 Selecting One Power Supply in a Multi Drop Chain ................4 2.3 Communication Cables ........................

  • Page 4: Introduction

    INTRODUCTION The internal factory installed General Purpose Interface Bus (GPIB) allows operation of the Z Power Supply from a computer via IEEE-488. The interface allows the user complete remote control of the Power Supply, including output voltage and current setting and monitoring, protection setting, trigger, waveform list operation, Power Supply status and SRQ reporting.

  • Page 5: Chapter 2: Connection

    CHAPTER 2: CONNECTION This section provides information on variable IEEE (GPIB) connection modes, communication cables and selecting communication parameters for operation via IEEE (GPIB) interface. It is possible connect to IEEE (GPIB) interface in two ways. 2.1 Point to Point One IEEE Interface can control only one Z Power Supply.

  • Page 6: Chapter 3: Configuration

    CHAPTER 3: CONFIGURATION 3.1 Configuration the IEEE Controller A typical IEEE controller is a personal computer with an IEEE interface card. Each card vendor supplies its own configuration instructions and interface software. Each time the software is executed, the controller is configured as follows: •...

  • Page 7: To Select The Address

    3.2.2 To Select the Address 1. Press REM button. The LED is illuminated. “Ad r" appears on Current display. 2. Press Current Encoder. Existing address mode appears on Current display. 3. Turn Current Encoder until desired address appears. 4. To select desired address press Current encoder. 3.2.3 To Select the Baud Rate 57600.

  • Page 8: Chapter 4: Programming Commands

    CHAPTER 4: PROGRAMMING COMMANDS Communication over the GPIB interface meets IEEE 488.2 standards and is Standard Commands for Programmable Instrumentation (SCPI) compliant. 4.1 SCPI Protocol Refer to section 7.10 of Z series User Manual 4.2 SCPI Common Commands Common commands are used to control instrument status registers, status reporting, synchronization, data storage, and other common functions.

  • Page 9: Scpi Subsystem Commands

    4.3 SCPI Subsystem Commands Subsystem commands control all Z functions. For a full command description refer to section 7.12 in Z series User Manual. Short list of Z series commands: OUTPut Enable/Disable output [:STATe] <bool> [:STATe]? Enable/Disable output query :PON Set power-on state in Safe or Auto start [:STATe] <bool>...
  • Page 10 :PROTection Set OVP value :LEVel <NR3> Set OVP value query :LEVel? : LOW Set UVP or UVL mode :STATe <CRD> Set UVP or UVL mode query :STATe? Set UVP|UVL value :[LEVel] <NR3> Set UVP|UVL value :[LEVel]? :CLEar Set arbitrary trigger control mode :MODE <CRD>...
  • Page 11 LIST :COUN <NR3> Set the number of times the list is executed before it is completed. Set the number of times the list is executed query :COUN? Specifies the output current points in a list. :CURR <NR3> Specifies the output current points in a list query. :CURR? Specifies the time interval that each point of a list is to remain in effect.

  • Page 12: Register Structure

    TRIGger [:START] Run trigger :DELay <NR3> Set trigger delay :DELay? Set trigger delay query :SOURce <CRD> Set trigger source :SOURce ? Set trigger source query WAVE Set the number of times that waveform is executed before it is :COUN <NR1> completed.

  • Page 13: The Summary Registers

    4.5 The Summary Registers The INSTRUMENT SUMMARY EVENT REGISTER, ISUM1 through ISUM3 (Refer to Fig.3-2), will record the address of the supply causing an SRQ. These are ‘EVENT’ registers and the bits will remain set until read by the STAT:QUES:INST:ISUMn command. (Refer to Table 4-1) Command Description STATus:QUEStionable...
  • Page 14 ADDRESSED COMMAND/QUERY 10 milliseconds GLOBAL COMMAND 20 milliseconds Table 4-2: Addition of Delay Fault Registers Syst:Err Queue Condition Enable Event SYST ERR? 0 , N o E r r 1 0 2 , S y n t AC Fail _ \_ 2 2 2 , D a t a Over Temperature _ \_...
  • Page 15 Fig.4‐2: Instrument Summary Register Tree for Multi Drop Mode...

  • Page 16: Chapter 5: Communication Example

    CHAPTER 5: COMMUNICATION EXAMPLE This section provides an example the National Instruments™ MAX program to communicate with the Z 1. Run National Instruments™ MAX (Measurement & Automation Explorer) program 2. Select “Devices and Interfaces” -> “GPIB0” press Scan for Instruments. Refer to Fig.4-1 Fig.5-1: Scanning for Instrument 3.
  • Page 17 4. Click Communicate with Instrument in the GPIB Explorer toolbar. NI-488.2 Communicator appears. Refer to Fig. 4-3 Fig.5-3: ID String Query 5. In the Send String box, *IDN? appears. Click Query. The ID string indicates the model, serial number, firmware version and the GPIB card firmware version. This will be shown in the text box below String Received.
  • Page 18 Tel: +81-3-5201-7175 www.us.tdk-lambda.com/lp Fax: +81-3-5201-7287 www.tdk-lambda.com CHINA TDK-Lambda UK Ltd. Shanghai Branch of Wuxi TDK-Lambda Electronic Co. Ltd. Kingsley Avenue Ilfracombe, Devon 28F, Xingyuan Technology Building No.418, Guiping Road, EX 34 8ES United Kingdom Tel: +44-1271-856666 Fax: +44-1271-864894 Shanghai, China 200233 Tel: +86-21-6485-0777 Fax: +86-21-6485-0666 E-mail: powersolutions@uk.tdk-lambda.com...
