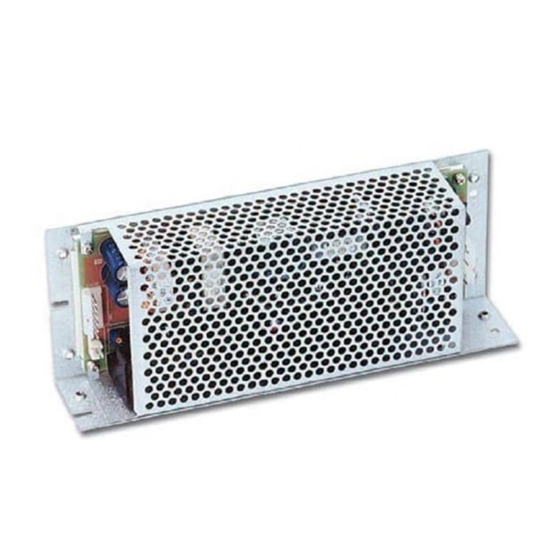

TDK-Lambda ZWD150PAF Series Instruction Manual

ZWD150PAF Series
Instruction Manual
BEFORE USING THE POWER SUPPLY UNIT
Pay attention to all warnings and cautions before using the unit. Incorrect usage could lead to an electrical
shock, damage to the unit or a fire hazard.
WARNING and CAUTION
·
Do not modify.
·
Do not touch the internal components, they may have high voltage or high temperature. You may get
electrical shock or burned.
·
When the unit is operating, keep your hands and face away from it, you may get injured by an accident.
·
This power supply is primarily designed and manufactured to be used and enclosed in other equipment.
Stick the WARNING label for users on the system equipment and describe the notice in the instruction
manual.
·
Never operate the unit under over current or shorted conditions for 30 seconds or more and out of Input
Voltage Range specification which could result in damage. There is no possibility of fire or burning.
·
Confirm that connections to input/output terminals are correct as indicated in the instruction manual.
·
This power supply is PC board type unit. Please hold the board edge while mounting, and do not touch the
component side. Please lift the power supply with a spacer when mounting the power supply on any sur-
face.
·
This power supply is capable of providing hazardous energy output(240VA), the end equipment manu-
facturer must provide protection to service personal against inadvertent contact with output terminals.
This terminal must not be user accessible.
·
Under single fault conditions in secondary circuits, the output(s) of this product may go non-SELV be-
tween parts of the secondary circuits and earth. It is therefore necessary to earth the output(s) to maintain
SELV between output(s) and earth. Alternatively, the output(s) may be considered hazardous and must not
be made user accessible in the end equipment.
·
Do not drop or apply shock to power supply unit.
TDK-Lambda
ZWD150PAF Series
INSTRUCTION MANUAL
PA573-04-01F
