Controller Access
The "One Client Only" setting is the default setting for the highest networking security. This setting
allows only one TCP socket to be open at a time and it disables the connectionless UDP sockets.
See section 6.6.2.
Modify
Click this button to open the window shown below

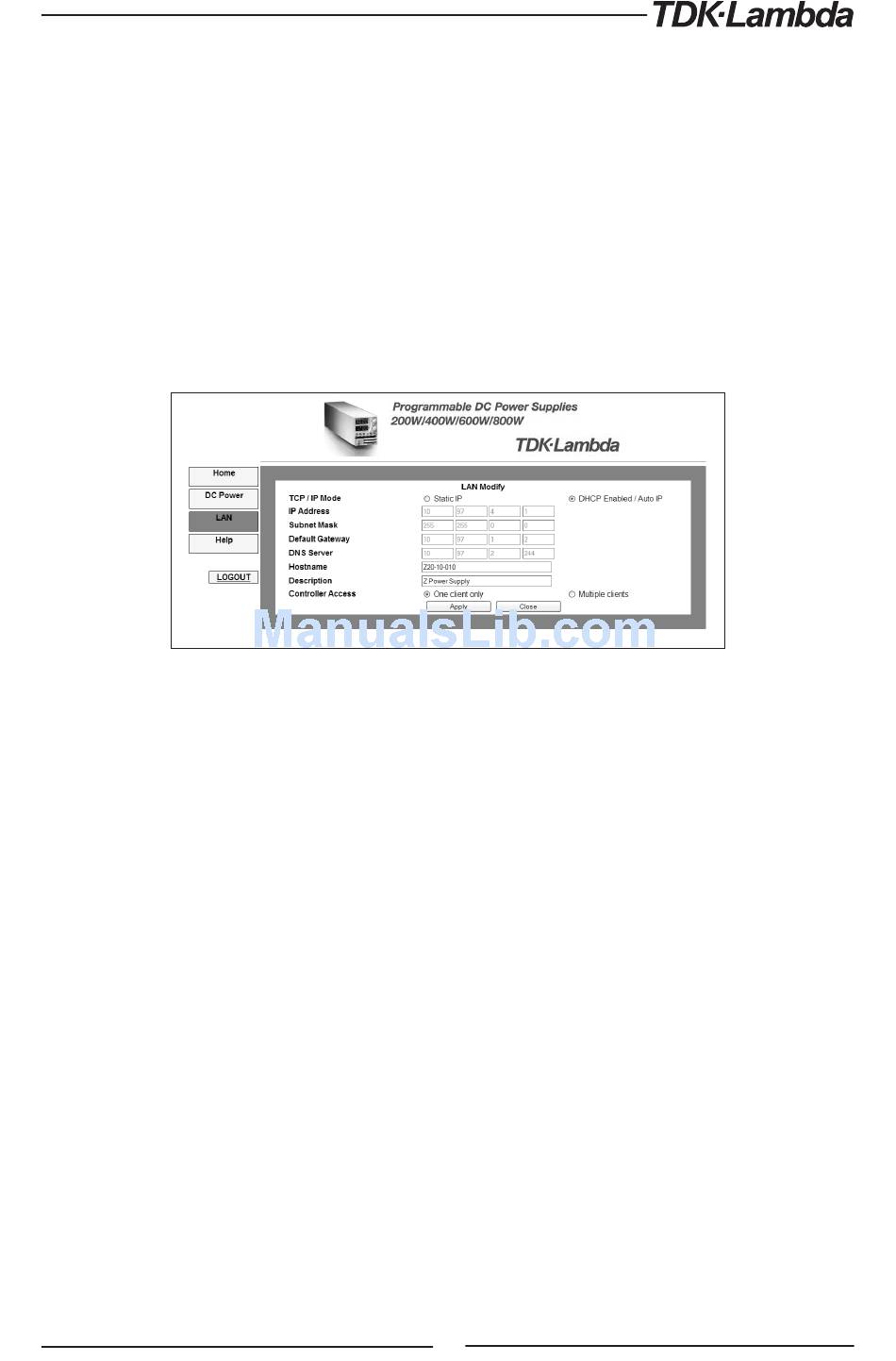

6.6.2 LAN ➔ Configure ➔ Modify Page
If you are logged in and clicked the "Modify" button on the "LAN ➔ Configure" window, the below
pop-up window appears. On this window, you may enter new values for the LAN settings. The
available fields depend on the selection of "DHCP Assigned / AUTO IP" or "Static IP". Changes to
these setting will not take place until the "Apply" button is clicked.
After changing the LAN settings, the web browser will ask to be closed. Re-open using the new address.
If the change causes a duplicate IP, the LAN Status LED and the front panel LED will blink and address
will revert to previous state. Press any front panel button to stop the blinking.
It may be required to reset the power supply after changing the LAN settings.
TCP/IP Mode
This selects how the power supply receives network settings. Select either:
•
DHCP Assigned / AUTO IP: If this mode is selected, the network server uses DHCP to assign
the IP address, subnet mask, default gateway and DNS server. Since the server assigns these,
they are disabled (gray) on the web page. If the server cannot make the assignment, the power
supply will revert to the Auto IP method described in section 4.4. In this mode, the user may
only change the hostname and description.
•
Static IP: If this mode is selected, the IP address, subnet mask and default gateway must be
entered in the window fields. The settings must be compatible with the requirements of the
network server. These settings do not change as the power supply is moved to different LAN
connections. In this mode, there is no hostname connectivity so the hostname and DNS server
fields are disabled (gray).
Controller Access
Select the security feature for One Controller Only or Multiple Clients. The multiple clients setting
is needed to allow more than one controller connection at a time and to enable UDP socket
connections.
NOTE:
NOTE:
21
