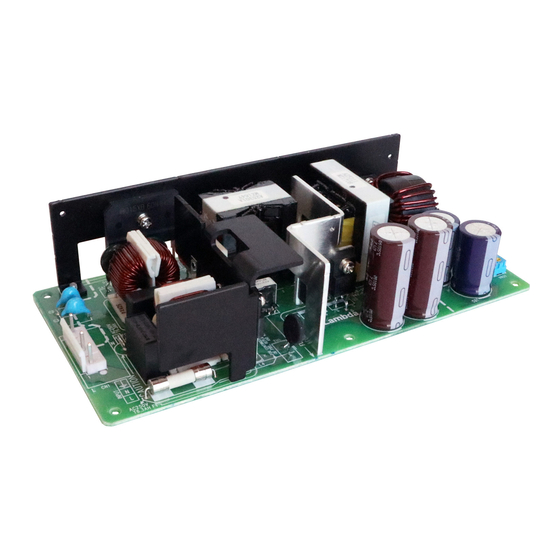

TDK-Lambda ZWS240RC Series Instruction Manual

BEFORE USING THE PRODUCT
Be sure to read this instruction manual thoroughly before using this product. Pay attention to all cautions and warnings before
using this product. Incorrect usage could lead to an electrical shock, damage to the product or a fire hazard.
DANGER
・Never use this product in locations where flammable gas or ignitable substances are present.
INSTALLATION WARNING
・When installing, ensure that work is done in accordance with the instruction manual. When installation is improper, there is
risk of electric shock and fire.
・Installation shall be done by Service personnel with necessary and appropriate technical training and experience. There is a
risk of electric shock and fire.
・Do not cover the product with cloth or paper etc. Do not place anything flammable around. This might cause damage,
electric shock or fire.
WARNING on USE
・Do not touch this product or its internal components while circuit in operation, or shortly after shutdown. You may receive a
burn.
・While this product is operating, keep your hands and face away from it as you may be injured by an unexpected situation.
・For products with no cover, do not touch them as there are high­voltage and high temperature parts inside. Touching them
might cause injury such as electric shock or burn.
・There are cases where high voltage charge remains inside the product. Therefore, do not touch even if they are not in
operation as you might get injured due to high voltage and high temperature. You might also get electric shock or burn.
・Do not make unauthorized changes to this product nor remove the cover as you might get an electric shock or might damage
the product. We will not be held responsible after the product has been modified, changed or dis­assembled.
・Do not use this product under unusual condition such as emission of smoke or abnormal smell and sound etc. Please stop
using it immediately and shut off the product. It might lead to fire and electric shock. In such cases, please contact us. Do
not attempt repair by yourself, as it is dangerous for the user.
・Do not operate and store these products in environments where condensation occurs due to moisture and humidity. It might
lead fire and electric shock.
・Do not drop or apply shock to this product. It might cause failure. Do not operate these products mechanical stress is
applied.
CAUTION on MOUNTING
・Confirm connections to input/output terminals are correct as indicated in the instruction manual before switching on.
・Input line, please use the wires as short and thick as possible.
・Mount this product properly in accordance with the instruction manual, mounting direction and shall be properly be
ventilated.
・Please shut down the input when connecting input and output of the product.
・Please check the connector is locked securely, and be careful the harness does not come off the connector after connecting.
CAUTION on USE
・Product individual notes are shown in the instruction manual. If there is any difference with common notes individual notes
shall have priority.
・Before using this product, be sure to read the catalog and instruction manual. There is risk of electric shock or damage to the
product or fire due to improper use.
・Input voltage, Output current, Output power, ambient temperature and ambient humidity should be kept within
specifications, otherwise the product will be damaged, or cause electric shock or fire.
・If the built­in fuse is blown, do not use the product even after replacing the fuse as. There is risk of abnormality inside.
Be sure to request repair to our company.
ZWS240RC Series
Instruction Manual
<Page> 1/12
TDK­Lambda
Series
ZWS240RC
INSTRUCTION MANUAL
B138­04­01A
