LAN Option Rear Panel View

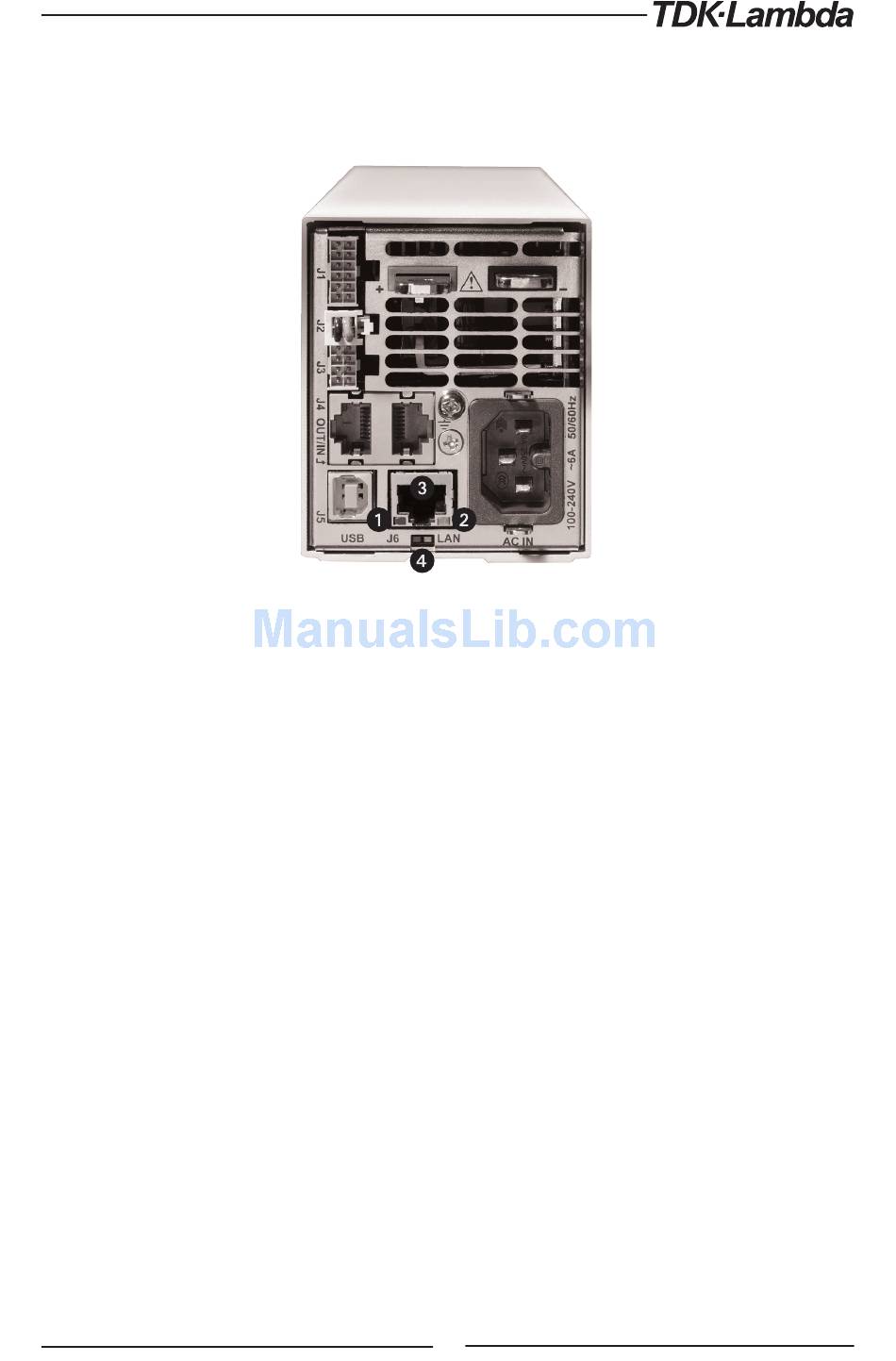

The power supply rear panel, with the LAN option installed, is shown below.

1. Link LED

2. Activity LED

3. RJ-45 Socket
4. LAN Status LEDS
3.1.4 Link LED
LED embedded in the RJ-45 socket glows green when the connection is made to an active network.
3.1.5 Activity LED
Amber LED blinks when any message packets are detected.

3.1.6 LAN Status LED

There are two LED's at the bottom of the RJ-45 connector:
• Normal Operation: Steady green
The power supply has an active LAN connection
•
Device Identify: Blinking green
The identify function is turned on from a remote computer using the web page or a SCPI
command. The front panel blinks along with the rear. It is used to identify one power supply
in a rack of instruments. The blinking is turned off by the web page, by sending another
SCPI command, or by changing any front panel control. In a multi-drop chain, only the
master LAN supply blinks.
• LAN Fault: Steady red
Shows the LAN mode is not enabled, the LAN connection was never made, or that the LAN
connection was made and then broken.
Fig.3-1: Rear Panel LAN Features
