ETC Element User Manual page 233

N e t w o r k D r i v e s
{Network Drives...} allows you to select an alternative show file storage location on another
console or computer. After setting this location, it will appear as an option within the save and open
dialogs in Element.

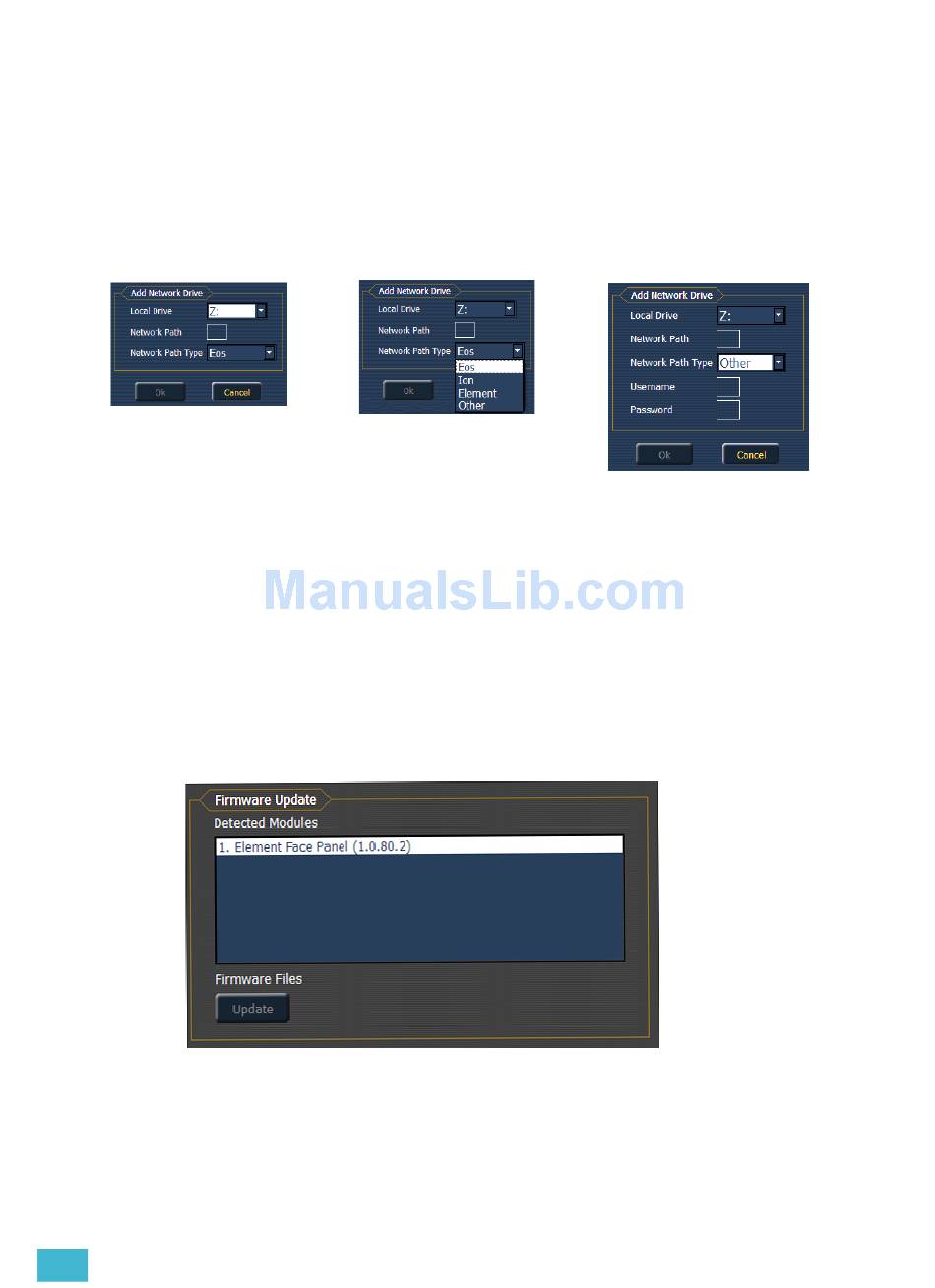

In the {Network Drives...} dialog box, there is a {Add} button for creating a network drive. In the
Add Network Drive dialog box, you are able to select the drive letter that is appropriate, the network
path, examples would be \\IPAddress\ShowArchive or \\DeviceName\ShowArchive, and network
path type, which is either Eos, Ion, Element, or Other. If Other is selected, you will have additional
fields to fill out for Provider, Username, and Password.
S h a r e d F o l d e r s
{Shared Folders...} allows you to see if any folders are currently being shared by the console. You
can select the folder and click {Don't Share} if you no longer want to share the folder. By selecting
{Don't Share} here, you will also uncheck the box for Share Show Archive in the General tab.
L o g O ff
This will log off the current user, and is recommended to only be used while receiving support from
ETC Technical Services.
F i r m w a r e U p d a t e
The firmware update window will display any detected devices that use firmware and may require
an update. With the device selected, if an update is available, the {Update} button will be
highlighted in yellow. If the button is greyed out, an update is not available.
B
Element Configuration Utility 221
