ETC Echoflex ELED2 Installation Manual
Tunable white dimming controller
Hide thumbs
Also See for Echoflex ELED2:
- Installation manual (12 pages) ,
- Configuration manual (26 pages)
Table of Contents
Advertisement
Quick Links
Installation Guide
ELED2(H)
Tunable White Dimming Controller
IMPORTANT SAFEGUARDS
READ AND FOLLOW ALL
SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
CAUTION - This equipment has more than one
•
power supply connection point. To reduce the risk
of electric shock, disconnect both the branch circuit-
breakers or fuses and emergency power supplies
before servicing.
CAUTION – Risk of Electric shock hazard. The
•
controller uses high voltage and should only be in-
stalled by qualified personnel in accordance with
National Electrical Code and any local regulations.
CAUTION - To avoid electrical overload, total
•
connected load should not exceed output rating.
•
This product is suitable for use in dry locations
where the ambient temperature is -5°C to +50°C
(23°F to 122°F).
•
Do not use outdoors.
•
Do not mount near gas or electric heaters
•
Equipment should be mounted in locations and
at heights where it will not be subjected to
ELED2(H) Installation Guide
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ETC Echoflex ELED2
Summary of Contents for ETC Echoflex ELED2
- Page 1 Installation Guide ELED2(H) Tunable White Dimming Controller IMPORTANT SAFEGUARDS READ AND FOLLOW ALL SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS CAUTION - This equipment has more than one • power supply connection point. To reduce the risk of electric shock, disconnect both the branch circuit- breakers or fuses and emergency power supplies before servicing.
- Page 2 tampering by unauthorized personnel. • The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition. • Do not use this equipment for other than its intended use. • Servicing should be performed by qualified ser- vice personnel.

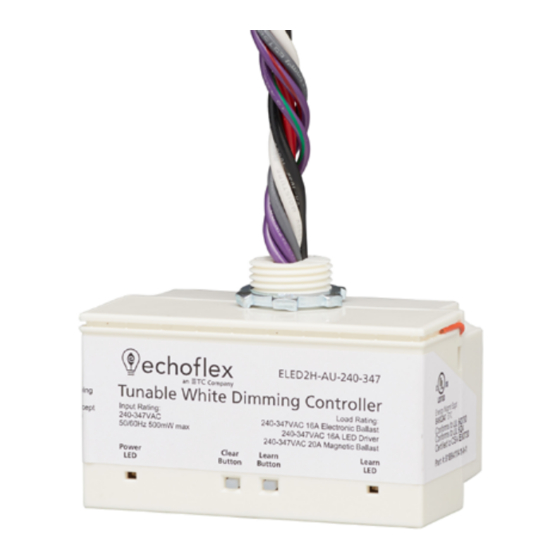

- Page 3 Overview This guide covers the Tunable White Dimming Controller, with model numbers of ELED2-BU 120-277 and ELED2H-AU 240-347. Both models are equipped with a 902 MHz radio. The box contents includes the controller and installation guide. A programming guide with detailed features of the controller is available for download on www.echoflexsolutions.com.
- Page 4 Installing the Controller For best results mount the controller on the outside of the electrical box either directly at the electrical load or before the load in the circuit. Review these instructions completely before installing the controller. 1. Locate the circuit breaker panel and terminate power to the circuit. 2.
- Page 5 Wiring Diagram Red - To other LED drivers (ELED2) 20A@ 120-277VAC, Neutral to others Electronic Ballast or LED Driver White - Neutral (ELED2H) 20A@ 240-277VAC Red - Load, switched Hot Electronic Ballast or LED Driver Tunable White LED fixture 16A@ 347VAC Electronic Ballast or Violet with Green stripe Black - Line, LED Driver...
- Page 6 If linking a sensor, press the sensor’s TEACH or LINK button, refer to the sensor’s documentation. The POWER LED will remain lit for four seconds while it links the new device. It will resume toggling allowing you to link another device up to a total of twenty devices. 3.
- Page 7 Wiring Diagrams - For use in Emergency Fixtures (2 of 2) Normal Hot Neutral Normal Neutral ELED2 Load Control Tunable White Dimming Controller Power Clear Learn Learn Button Button Dim - Analog color Dim + control LED + LED Driver LED + Battery Backup Emmitter...
- Page 8 Set Point Input Channel 3 BLUE POWER LED Blink Codes Factory Default CCT sensor linked 1 long blinks followed by short blinks counting sensors (typical max 1) Central Command 2 long blinks followed by short blinks counting sensor Operating Mode and LED Activity Mode LEARN LED: POWER LED:...
