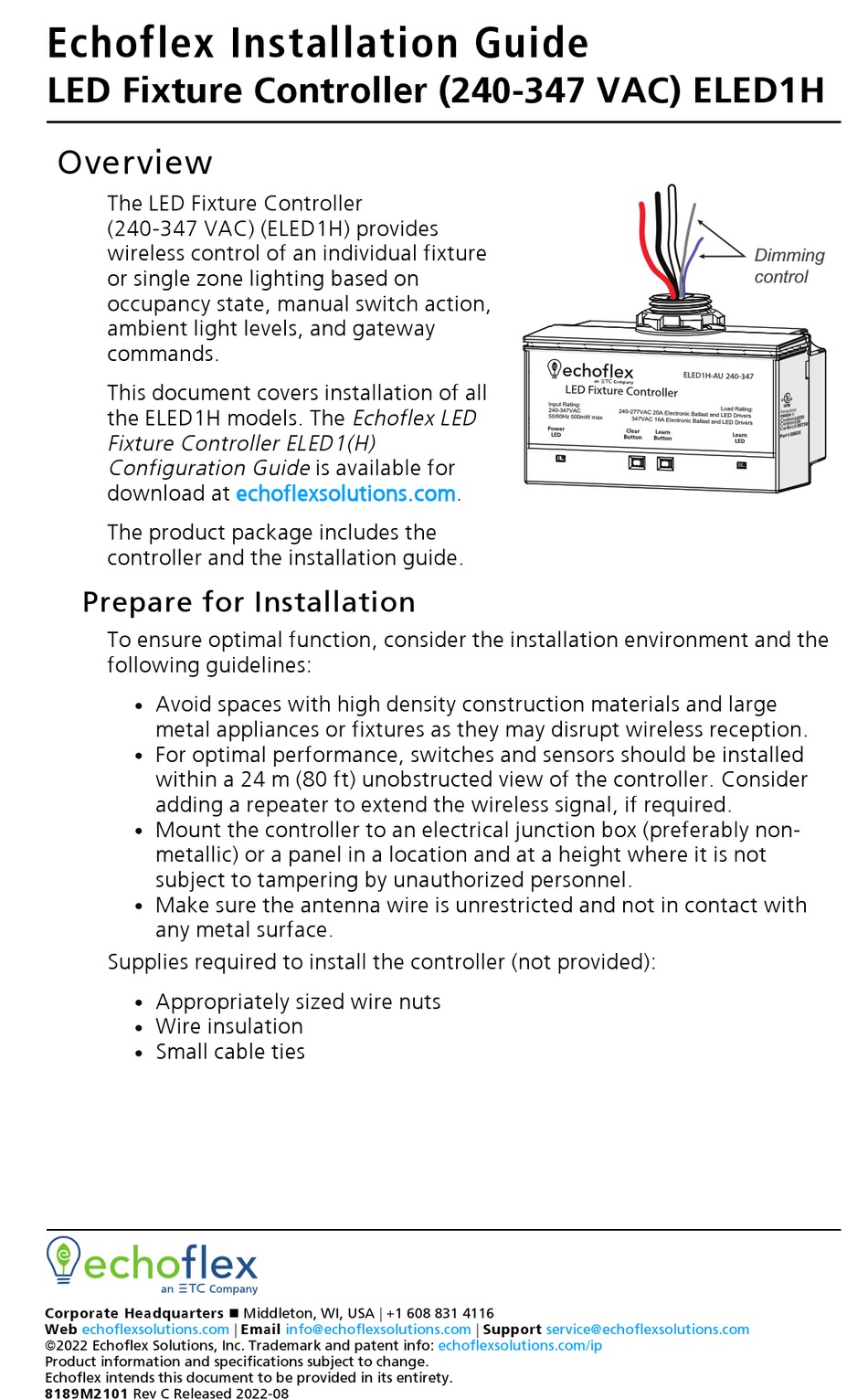

Echoflex Installation Guide
LED Fixture Controller (240-347 VAC) ELED1H
Overview

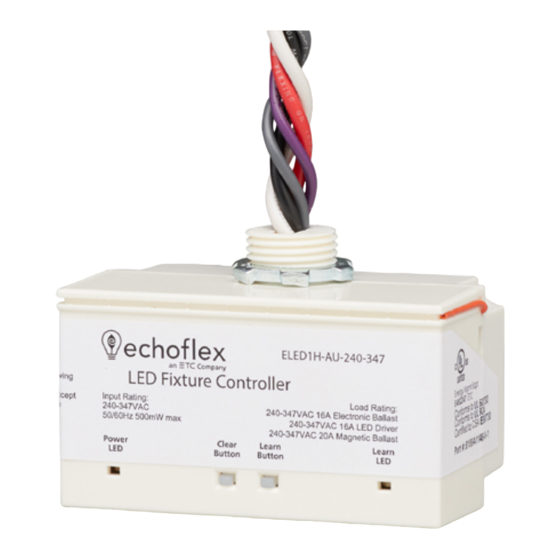

The LED Fixture Controller
(240-347 VAC) (ELED1H) provides
wireless control of an individual fixture
or single zone lighting based on
occupancy state, manual switch action,
ambient light levels, and gateway
commands.
This document covers installation of all
the ELED1H models. The Echoflex LED
Fixture Controller ELED1(H)
Configuration Guide is available for
download at echoflexsolutions.com.
The product package includes the
controller and the installation guide.
Prepare for Installation
To ensure optimal function, consider the installation environment and the
following guidelines:
Avoid spaces with high density construction materials and large
•
metal appliances or fixtures as they may disrupt wireless reception.
For optimal performance, switches and sensors should be installed
•
within a 24 m (80 ft) unobstructed view of the controller. Consider
adding a repeater to extend the wireless signal, if required.
Mount the controller to an electrical junction box (preferably non-
•
metallic) or a panel in a location and at a height where it is not
subject to tampering by unauthorized personnel.
Make sure the antenna wire is unrestricted and not in contact with
•
any metal surface.
Supplies required to install the controller (not provided):
Appropriately sized wire nuts
•
Wire insulation
•
Small cable ties
•
Corporate Headquarters n Middleton, WI, USA | +1 608 831 4116
Web echoflexsolutions.com
©2022 Echoflex Solutions, Inc. Trademark and patent
Product information and specifications subject to change.
Echoflex intends this document to be provided in its entirety.
8189M2101 Rev C Released 2022-08
| Email info@echoflexsolutions.com | Support service@echoflexsolutions.com
info: echoflexsolutions.com/ip
Dimming
control
