ETC echoflex ELED2 Installation Manual

Echoflex Installation Guide
ELED2 Controller
Overview
The ELED2 Controller provides wireless lighting control of light intensity
and correlated color temperature (CCT). The controller includes two
0-10 V outputs and is available in models intended for general lighting
and for horticultural applications.

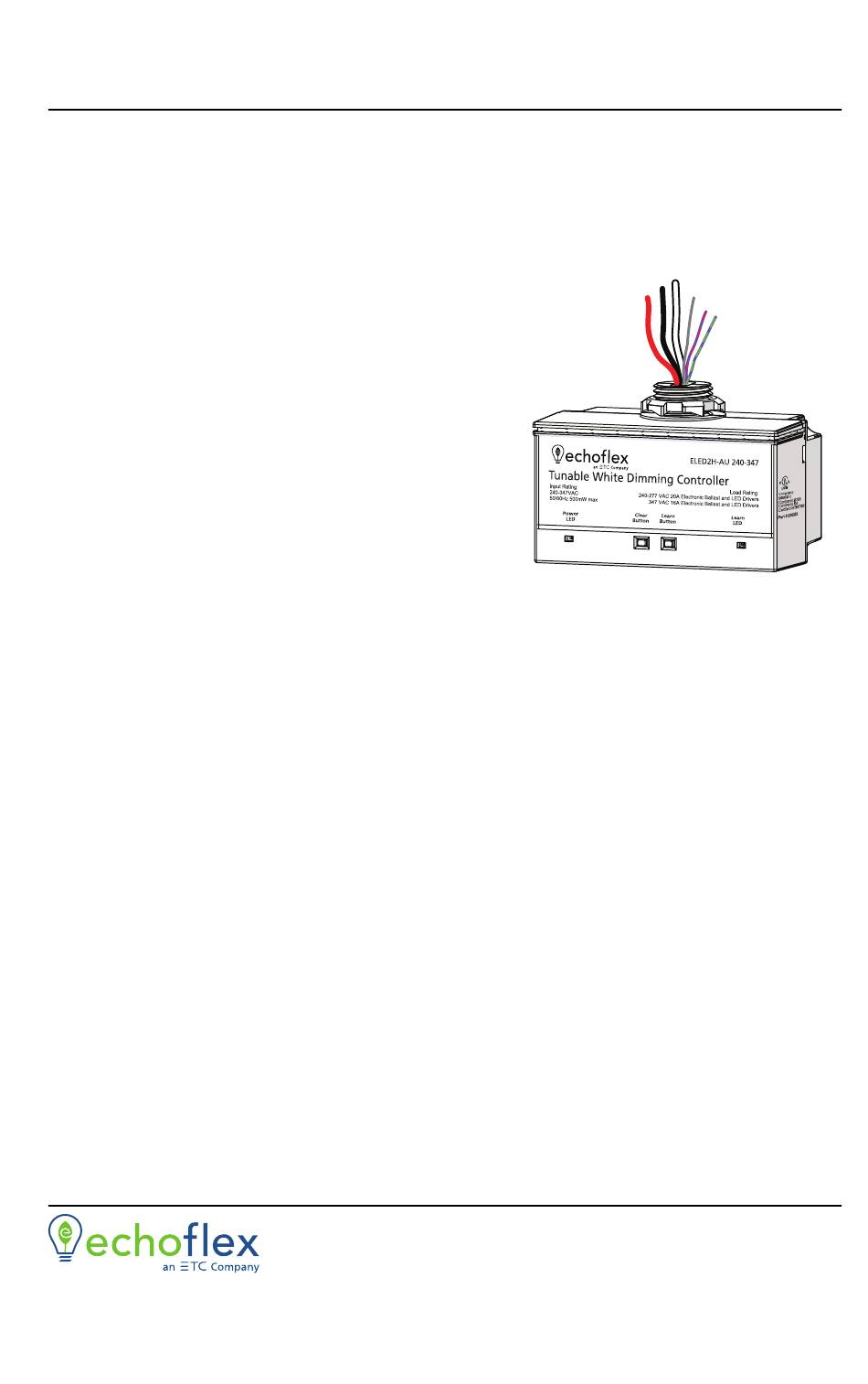

The Tunable White Dimming Controller
models control light intensity and color
temperature levels for general lighting
applications, whether for a single
compatible fixture or an entire zone. It
also supports external set point input
from a gateway or outdoor CCT sensor.
Available in regular and high-voltage.
The Bicolor Luminaire Controller model
modulates light intensity and blends
cool and warm LEDs to provide the
desired CCT output for horticultural
applications.
This document covers installation of all the ELED2 models. Echoflex
Configuration Guides for both applications are available for download at
echoflexsolutions.com. The product package includes the controller and
the installation guide.
Prepare for Installation
To ensure optimal function, consider the installation environment and the
following guidelines:
• Avoid spaces with high density construction materials and large
metal appliances or fixtures as they may disrupt wireless reception.
• For optimal performance, switches and sensors should be installed
within a 24 m (80 ft) unobstructed view of the controller. Consider
adding a repeater to extend the wireless signal, if required.
• Mount the controller to an electrical junction box (preferably
non-metallic) or a panel in a location and at a height where it is not
subject to tampering by unauthorized personnel.
Supplies required to install the controller (not provided):
• Appropriately sized wire nuts
• Wire insulation and small cable ties
Corporate Headquarters n Middleton, WI, USA | +1 608 831 4116
© 2023 Echoflex Solutions, Inc. | Trademark and patent info:
Web echoflexsolutions.com
Third-party license agreement
change. Echoflex intends this document to be provided in its entirety.
8189M2111 Rev C Released 2023-07
| Email info@echoflexsolutions.com
info: etcconnect.com/licenses
echoflexsolutions.com/ip
| Support service@echoflexsolutions.com
| Product information and specifications subject to

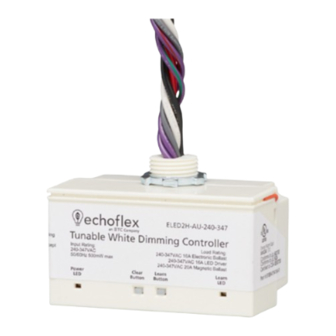

ELED2
