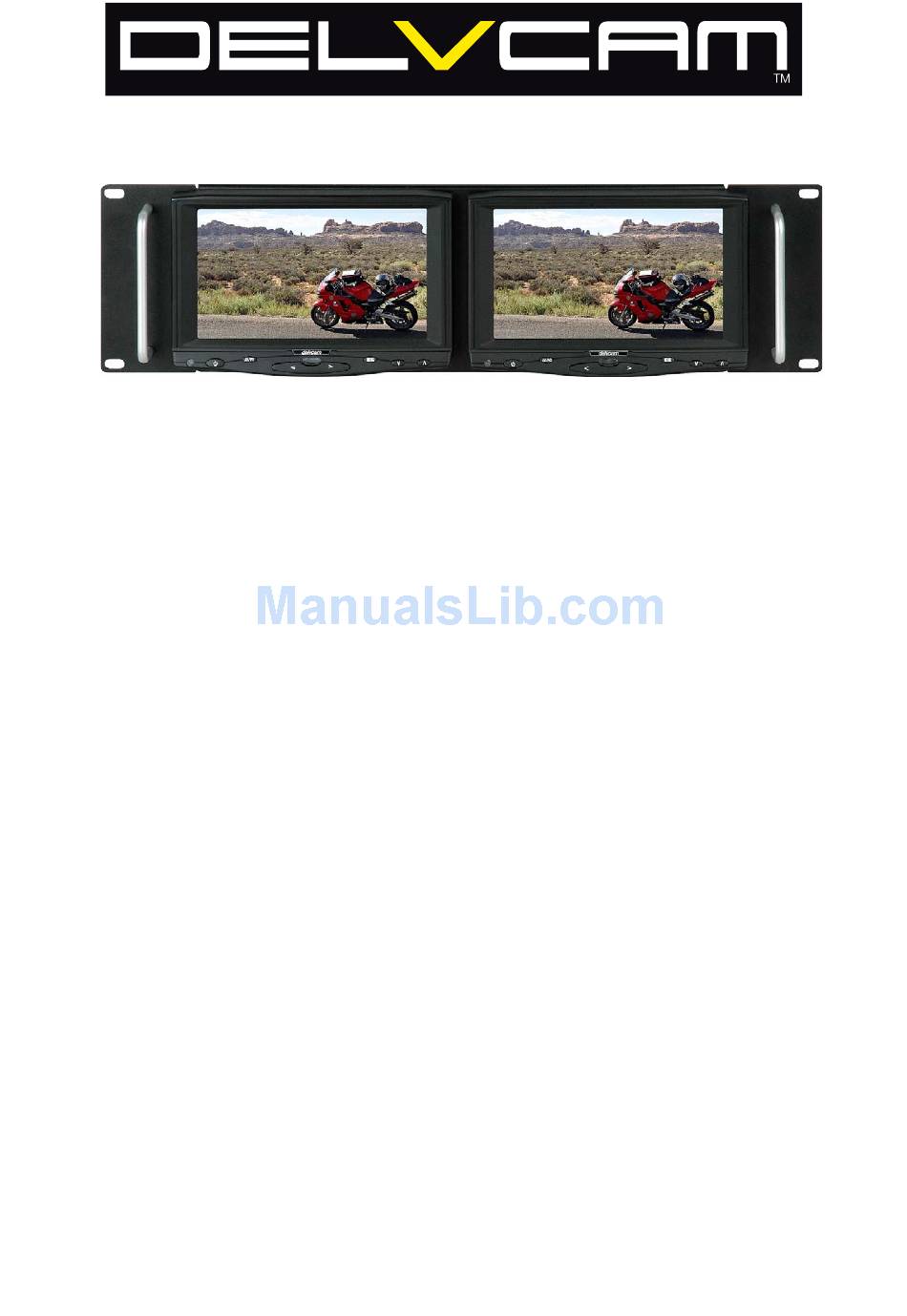

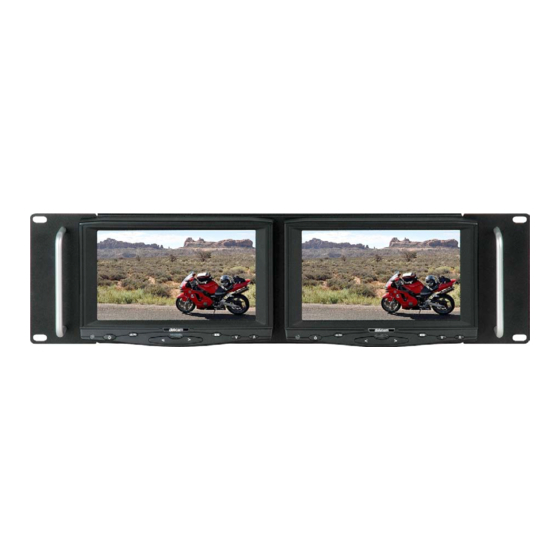

DELV-HD7RM DUAL RACK MOUNT
HDMI-VGA TOUCH SCREEN MONITOR
With Dual Composite Video & Audio

USER MANUAL

Thank you for purchasing the DELVCAM HD7RM High Definition liquid crystal display monitor. This
product employs new integrate circuits and high quality TFT LCD modules. It operates with low power
consumption, emits no radiation, and is a compact form factor. The color TFT LCD is the most suitable
display for VGA, VCD DVD and GPS system for motorcars and ships. It can also be used in the
high-end media facilities for in-line monitoring of HDMI, VGA and Composite Video signals. This
product is manufactured to the highest standards and will operate well in all applications where
performance is demanded but for a cost effective price.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DELV-HD7RM and is the answer not in the manual?

Questions and answers

Related Manuals for DELVCAM DELV-HD7RM

Summary of Contents for DELVCAM DELV-HD7RM

  • Page 1: User Manual

    With Dual Composite Video & Audio USER MANUAL Thank you for purchasing the DELVCAM HD7RM High Definition liquid crystal display monitor. This product employs new integrate circuits and high quality TFT LCD modules. It operates with low power consumption, emits no radiation, and is a compact form factor. The color TFT LCD is the most suitable display for VGA, VCD DVD and GPS system for motorcars and ships.
  • Page 2 To ensure the best use of the unit Please read this handbook carefully beforehand. CAUTION 1. Please use the AC adapter attached in the accessory kit. 2. Do not expose this product to direct sunlight, heat or humid conditions. 3. Keep away from strong light while using this product to obtain the best quality visible image.
  • Page 3 DESCRIPTION OF MONITOR FUNCTIONS Picture 1 1. Indicator light : Power on/off (VGA), AV switch. Volume down or to adjust the value of setting function 5. Infrared receiving window Volume up or to adjust the value of setting function To activate OSD menu. Selection key, to adjust phase directly.
  • Page 4 NOTE: THE GRAPHIC ON THE LEFT REAR PANEL INDICATES THE INPUT/OUTPUTS FOR BOTH MONITORS. 1. USB INTERFACE JACK FOR TOUCH SCREEN OPERATION 2. VGA PORT FOR VGA INPUT 3. COMPOSITE VIDEO #2 INPUT 4. COMPOSITE VIDEO #1 INPUT 5. AUDIO INPUT 6.
  • Page 5 7. HDMI INPUT 8. SPEAKER...

  • Page 6: Remote Controller

    REMOTE CONTROLLER Power on/off : MUTE : To activate OSD menu. : Volume down or to adjust the value of setting function : Volume up or to adjust the value of setting function : Selection key, to adjust the brightness directly : Selection key, to adjust phase directly : Aspect ratio switch, 4:3/16:9 UP/ DOWN Switch...
  • Page 7 Manual Menu Operation After connecting power, the unit will be in standby state red light). Press ” ” on the unit or on the remote controller, the buttons of the unit will blue light, at that time the unit begins to work. Press the same button again the unit will return to its standby state (Note the blue button will black out in 5 or 6 seconds soon after you turn off unit.).

  • Page 8: Description Of Osd

    Description of OSD In (VGA) mode （Color） After enter into “Color” item of OSD, use “ ”/“ ”to select and then push“ ”/“ ”to adjust. Brightness: To adjust the brightness. Contrast: To adjust the contrast of image. Color Temp To adjust the contrast of Color Temp. Color temperature of OSD is adjustable.
  • Page 9 Note: when you select the “USER” item a mini box will appear in the right bottom corner of the OSD as pictured below. Adjust Auto Config To adjust automatically .If the auto-adjust is not satisfy your request, you can adjust manually. H Position To adjust the picture in horizontal.
  • Page 10 Function Reset Back to original setting. Display Ratio To change the display ratio,16:9/4:3. LR Rotation To change the picture left/right. UD Rotation To change the picture up/ down. Sound Volume: To adjust the volume. In AV mode Color Brightness: To adjust the brightness. Contrast: To adjust the contrast.
  • Page 11 Language 2 languages for OSD as below English H Position To adjust the OSD position in horizontal. V Position To adjust the OSD position in vertical. OSD Timeout To adjust the clock. Transparent To adjust the level of transparent. Function Reset Back to original setting.

  • Page 12: Touch Screen Operation

    TOUCH SCREEN OPERATION The DELV-HD7RM is equipped for Touch Screen Operation with PC based computers. This converts the screen of the monitor to act as a GUI for PC based software applications. To use this feature you will need to use the USB cable that is provided and load the driver software.
