Page 1: User Guide
Delvcam DELV-DUALFPV-7PL User Guide... -
Page 2: Table Of Contents
Important Safety Instructions: l Please read User Guide before using this product. l Please keep User Guide for future reference. l Please read the cautions to prevent possible danger and loss of property. Contents Features ............................. 2 Safety Instructions ..........................2 ... -
Page 3: Features
Features Ø High resolution: 1280×800; Ø High brightness: 400cd/㎡; Ø High contrast: 800:1; Ø Dual 5.8GHz receivers for optional; Ø Channel auto searching; Ø Auto antenna switching to get best signal; Ø Multiple Picture-in-Picture (PIP) modes; Ø 4-hour timer & alert indicator. Safety Instructions Ø... -
Page 4: Installation & Initial Setup
Installation & Initial Setup v Unpacking Carefully unpack the monitor and verify that the following items are included: l Monitor l Sun shade l AV input cable l AV output cable l 12V DC adapter l 5.8G antenna l 2600mAh built-in battery l... -

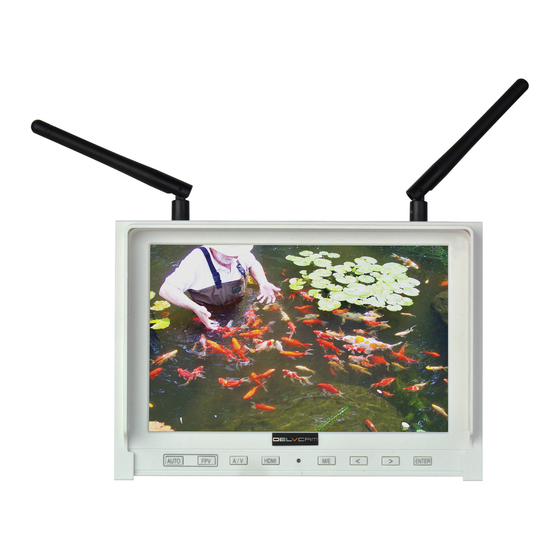

Page 5: Product Description
Product Description 1. AUTO: channel auto searching 2. PIP: picture-in-picture mode. 3. A/V: video& 5.8G switch. 4. HDMI: switch to HDMI state. 5. Battery indicator Status 1: the indicator light turns to fully red when battery charging. Status 2: the indicator light turns to half red when powered with DC power, but not with battery. - Page 6 1. Antenna port. 2. Frequency control. (Please refer to aerial photography signal receiver) 3. OUT: video output interface. 4. IN: video input interface. 5. Bracket mount (Depth limit 0.5cm). 6. Earphone jack. 7. HDMI input interface. 8. POWER: DC12V power input. 1.
-
Page 7: Aerial Photography Signal Receiver
Aerial Photography Signal Receiver v Frequency Chart 0: ON; 1:OFF Frequency / L.O. Band 1 B1:5.865GHz/5.385GHz B2:5.845GHz/5.365GHz B3:5.825GHz/5.345GHz B4:5.805GHz/5.325GHz B5:5.785GHz/5.305GHz B6:5.765GHz/5.285GHz B7:5.745GHz/5.265GHz B8:5.725GHz/5.245GHz Band 2 C1:5.733GHz/5.253GHz C2:5.752GHz/5.272GHz C3:5.771GHz/5.291GHz C4:5.790GHz/5.310GHz C5:5.809GHz/5.329GHz C6:5.828GHz/5.348GHz C7:5.847GHz/5.367GHz C8:5.866GHz/5.386GHz Band 3 D1:5.705GHz/5.225GHz D2:5.685GHz/5.205GHz D3:5.665GHz/5.185GHz D4:5.645GHz/5.165GHz D5:5.885GHz/5.405GHz D6:5.905GHz/5.425GHz D7:5.925GHz/5.445GHz D8:5.945GHz/5.465GHz... -
Page 8: Wiring Instructions
v Frequency Control Demo Tip: To avoid adjacent frequency disturbance, please ensure two transmitters frequency difference more than 20MHz. For example: (ANT1) 5800MHz - (ANT2) 5790MHz = 10MHz < 20MHz (×) (ANT1) 5828MHz - (ANT2) 5790MHz = 38MHz > 20MHz (√) v... -
Page 9: Menu Settings
v Video Input Cable 1. Video input interface. 2. Yellow: video 1 input plug. 3. White: video 2 input plug. Menu Settings Before setting the functions, please make sure the device is connected correctly. Shortcut keys The image menu Turn power on, press “ ”... -
Page 10: Menu Operation
Menu Operation Turn power on, press “MENU” on the device. The menu of function setting will display on the screen. Press < / > buttons to choose menu; then press ENTER to confirm; after that, press MENU to return. PICTURE ITEMS OPTIONS Brightness... - Page 11 MARKER ITEMS OPTIONS Center Marker ON, OFF Safety Marker OFF, 95%, 93%, 90%, 88%, 85%, 80% FPV Marker ON, OFF DISPLAY ITEMS OPTIONS Aspect Ratio Full Screen, 4: 3, 16: 9, 1.85: 1, 2.35: 1 Pixel-to-Pixel ON, OFF Underscan ON, OFF Zoom OFF, ×2, ×4, ×6, ×8 Image Flip...
- Page 12 DSLR AUX & AUDIO ITEMS OPTIONS Camera ON, OFF HDMI mode ( Only H / V Delay OFF, H&V, V, H Check Field OFF, Mono, Red, Green, Blue Color Bar ON, OFF Volume 0 – 100 SYSTEM ITEMS OPTIONS Language English, Chinese LOGO ON, OFF...
-
Page 13: Technical Specifications
Technical Specifications Panel 7” LED Backlit ( IPS ) Physical Resolution 1280×800 400cd/㎡ Brightness Contrast 800:1 Viewing Angle 178°/178°（H/V） Input Voltage DC 7~24V Aspect Ratio 16:9 Current 1300mA Power Consumption ≤18W Operating Temperature -20°~ 60°C Storage Temperature -30°~ 70°C Dimension (LWD) 185×126×30 (mm) Weight 385g...
