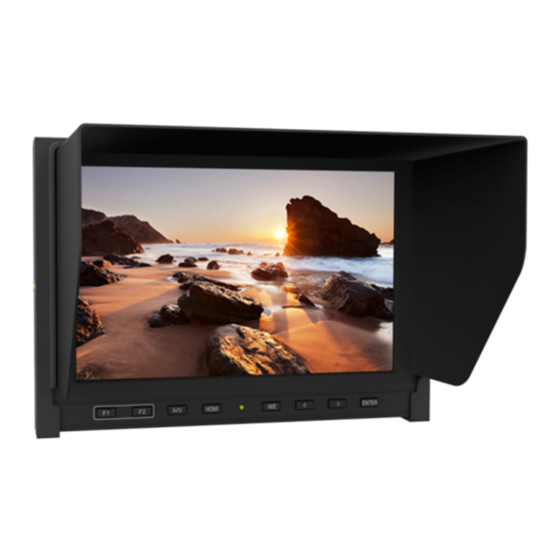

Summary of Contents for DELVCAM delv-hdmib
-

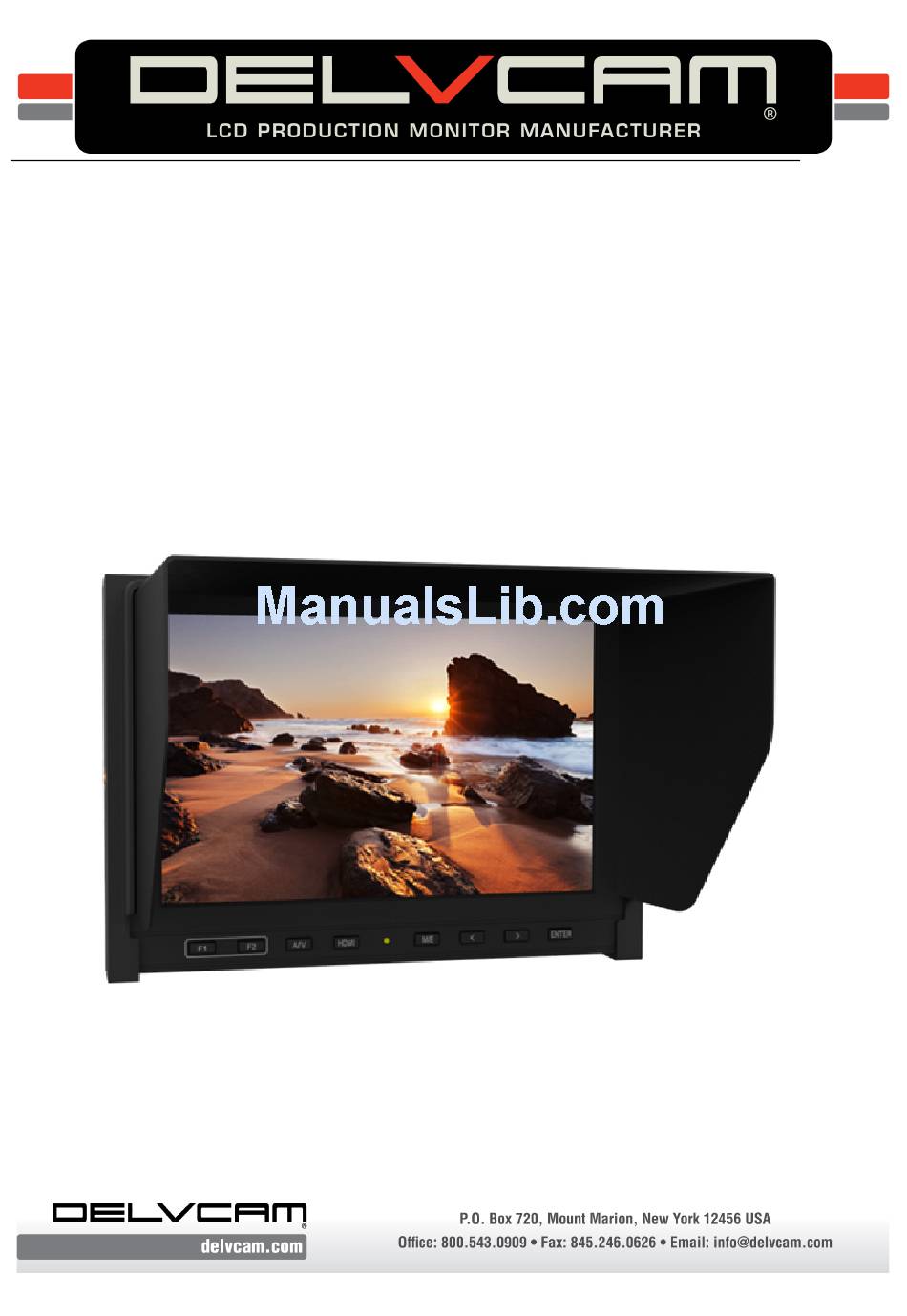

Page 1: User Guide
Delvcam DELV-HDMIB User Guide... -
Page 2: Table Of Contents
Important Safety Instructions: l Please read User Guide before using this product. l Please keep User Guide for future reference. l Please read the cautions to prevent possible danger and loss of property. Contents Features ............................. 2 Safety Instructions ..........................2 ... -
Page 3: Features
YP-01150117 Features Ø High resolution: 1280×800; Ø High brightness: 400cd/㎡; Ø High contrast: 800:1; Ø Built-in battery & battery level; Ø HDMI & AV input; Ø Foldable sun shade; Safety Instructions Ø Please do not place the display screen face down. Ø... -
Page 4: Installation & Initial Setup
Installation & Initial Setup v Unpacking Carefully unpack the monitor and verify that the following items are included: l Monitor l Sun shade l AV input cable l AV output cable l 12V DC adapter l HDMI A/C cable l Shoe mount l... -
Page 5: Product Description
Product Description 1. F1、F2 User-definable buttons. 2. A/V: switch to AV state. 3. HDMI: switch to HDMI state. 4. Battery indicator Status 1: the indicator light turns to fully red when battery charging. Status 2: the indicator light turns to half red when powered with DC power, but not with battery. - Page 6 1. OUT: video output interface. 2. IN: video input interface. 3. Bracket mount (Depth limit 0.5cm). 4. Earphone jack. 5. HDMI input interface. 6. POWER: DC12V power input. 1. VESA mounting interface. 2. Speaker. 3. 2600mA battery slot ( built-in...
-
Page 7: Sunshade Installation
Sunshade Installation DV Battery Mount Plate (Optional) Following three types of battery plates are suitable for this device, model F970, QM91D, DU21 & LP-E6 (choose 2 out of 4). -
Page 8: Wiring Instructions
MODEL: F-970 MODEL: QM91D MODEL: DU21 MODEL: LP-E6 DV Battery Mount Plate: DV Battery Mount Plate Specification: Model DU21 for battery of Panasonic DV: NV-GS/PV-GS/DZ-MV/GS/H28/H258/H288GK series, comply with Panasonic battery DU06/VBD140/SANYO DZhs301sw/Hitachi DZ-HS303SW/BZ-BP14S/DZ3200/BP07W. Model QM91D for battery of SONY DV: DSCR1/F/S/MVCCD/E/HC15E/HC1E/AE1u/DCRTRV828/E/CCD-TRV 116/DCR-DVD/PS105K/300K/10P/1E series. -
Page 9: Menu Settings
v Video Input Cable 1. Video input interface. 2. Yellow: video 1 input plug. 3. White: video 2 input plug. Menu Settings Before setting the functions, please make sure the device is connected correctly. Shortcut keys The image menu When power on, press “ ”... -
Page 10: Menu Operation
l Battery: battery level indicator. l Voltage: voltage indicator (invisible when charging) l Timer: available for flying countdown or battery level countdown. l Channel frequency: searching channel automatically. l Signal: wireless signal sensitivity indicator. Menu Operation When power on, press “MENU” on the device. The menu of function setting will display on the screen. - Page 11 MARKER ITEMS OPTIONS Center Marker ON, OFF Safety Marker OFF, 95%, 93%, 90%, 88%, 85%, 80% DISPLAY ITEMS OPTIONS Aspect Ratio Full Screen, 4: 3, 16: 9, 1.85: 1, 2.35: 1 Pixel-to-Pixel ON, OFF Underscan ON, OFF Zoom OFF, ×2, ×4, ×6, ×8 Image Flip OFF, H, V, H / V Freeze Input...
- Page 12 DSLR AUX & AUDIO ITEMS OPTIONS Camera ON, OFF HDMI mode ( Only H / V Delay OFF, H&V, V, H Check Field OFF, Mono, Red, Green, Blue Color Bar ON, OFF Volume 0 – 100 SYSTEM ITEMS OPTIONS Language English, Chinese LOGO ON, OFF...
-
Page 13: Technical Specifications
Technical Specifications Panel 7” LED Backlit ( IPS ) Physical Resolution 1280×800 400cd/㎡ Brightness Contrast 800:1 Viewing Angle 178°/178°（H/V） Input Voltage DC 7~24V Aspect Ratio 16:9 Current 580mA Power Consumption ≤7W Operating Temperature -20°~ 60°C Storage Temperature -30°~ 70°C Dimension (LWD) 185×126×30 (mm) Weight 360g...
