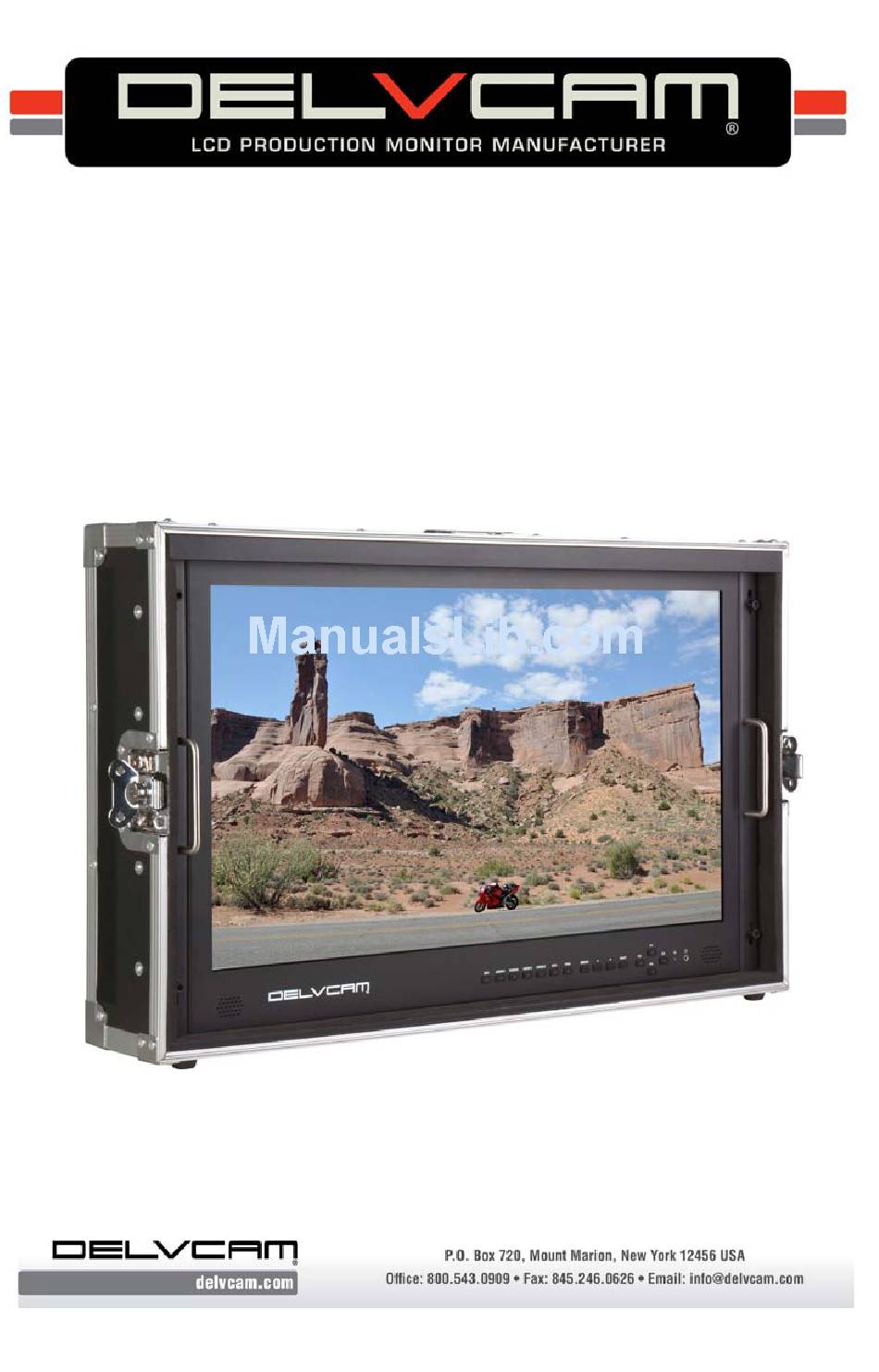

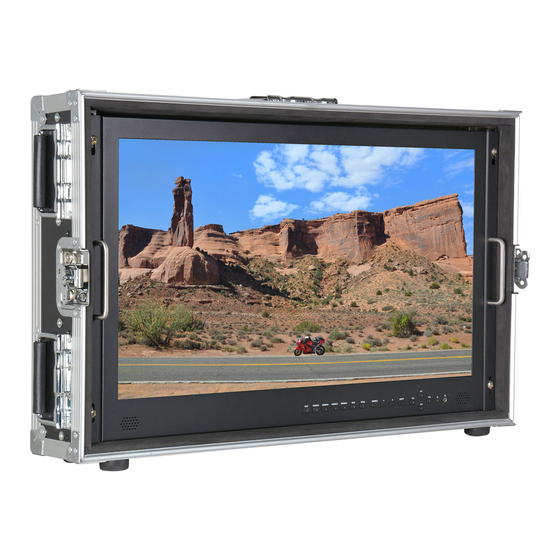

- Page 1 Delvcam DELV-4KSDI28 User Guide 28-inch 4K Ultra HD Monitor with Road Ready Case...
-
Page 2: Important Safety Instructions
Rugged carrying case provides added protection, stability, and portability. INCLUDED ACCESSORIES Collapsible Sunshade Carrying Case 15V 4-Pin XLR Power Adapter OPTIONAL ACCESSORIES Battery Plate Bracket V-mount/Anton Bauer Mount Power Cable TALLY Connector Kit Page 2 Delvcam DELV-4KSDI28... -
Page 3: Specifications
20.72lbs / 46.3lbs with case SUNSHADE INSTALLATION Remove the protective backing from the Velcro that is on the edge of the sunshade. Place the sunshade on the outside edge of the carrying case and press Velcro into place. Page 3 Delvcam DELV-4KSDI28... -
Page 4: Monitor Front
7 ► Select options in the menu. 8 EXIT Back or exit 9 F1-F4 User definable buttons Default function options: F1 Display Mode, F2 Display Rotate, F3 Safety Marker, F4 Aspect 10 Power Indicator Light Red: Standby, Green: Working 11 Earphone Jack Page 4 Delvcam DELV-4KSDI28... -
Page 5: Monitor Rear
7 HDMI input × 4 (HDMI 1: HDMI2.0, support 4K 60Hz, HDMI 2, HDMI 3 and HDMI 4: HDMI1.4, support 4K 30Hz) 8 Unbalanced audio input L/R 9 SDI input/output ports 10 XLR Power 11 Power switch I = ON, O = OFF Page 5 Delvcam DELV-4KSDI28... -
Page 6: Menu Operation
Functions can be customized to meet user’s needs: center marker, safety marker, aspect ratio, under scan, check field, image freeze, peaking, dis- play mode and image flip. Default options F1：Display Mode F2：Display Rotate F3：Safety Marker F4：Aspect Page 6 Delvcam DELV-4KSDI28... - Page 7 Audio Audio Source Analog, Digital 1, Digital 2, Digital 3, Digital 4 Auto Adjust Press to confirm H Position 0-100 VGA—for adjusting VGA V Position 0-100 signal modes Clock 0-100 Phase 0-100 Info Displays current information Page 7 Delvcam DELV-4KSDI28...
-
Page 8: Troubleshooting
SETTINGS Reset Press to confirm Menu Time 5-60s OSD H Position 0-100, to set menu display area OSD V Position 0-100, to set menu display area System Transparency 0-255, to set menu transparency OSD Rotate 0°, 90°, 270° Border Width 0-10 Border Color R, G, B, W...
