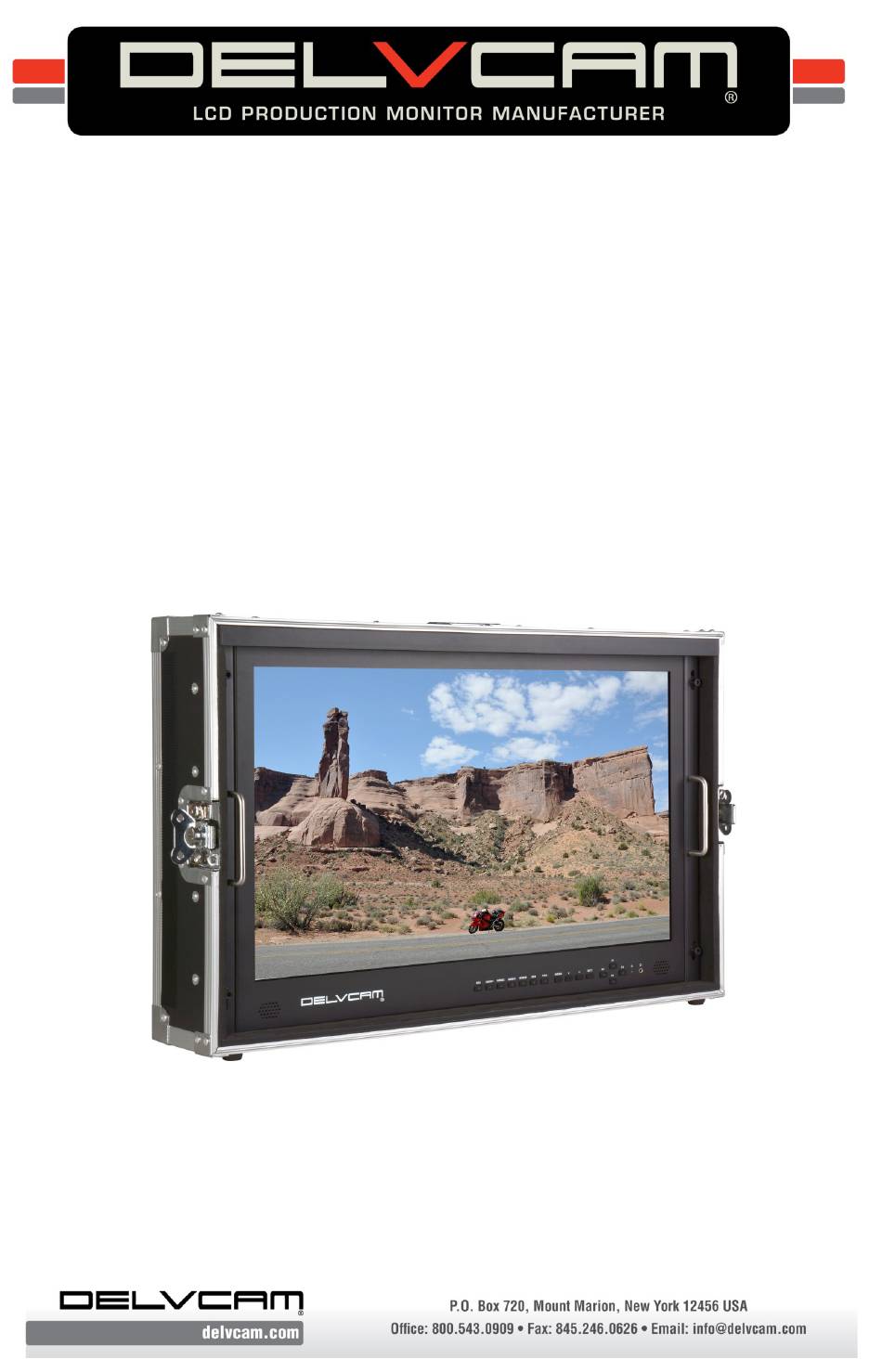

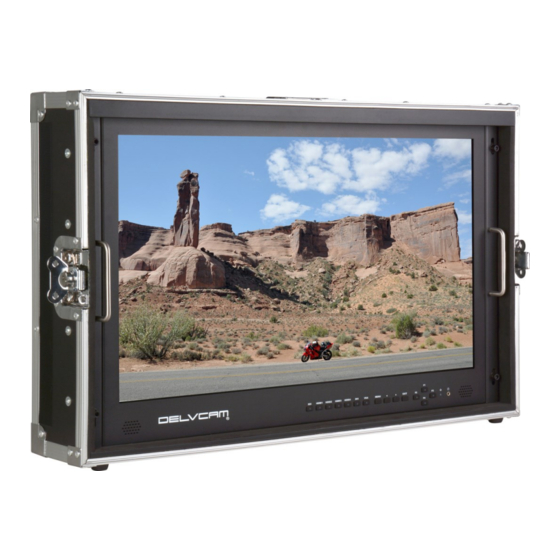

- Page 1 Delvcam DELV-4KSDI28 (28") DELV-4KSDI24 (24") DELV-4KSDI15 (15") User Guide 28"/24"/15” 4K Ultra HD Monitor with Road Ready Case...
-
Page 2: Important Safety Instructions
Rugged carrying case provides added protection, stability, and portability. INCLUDED ACCESSORIES • Collapsible Sunshade • Carrying Case • 15V 4-Pin XLR Power Adapter • Battery Plate Bracket • V-mount with Power Cable • TALLY Connector Kit Delvcam DELV-4KSDI28 / DELV-4KSDI24 / DELV-4KSDI15 Page 2... -
Page 3: Specifications
SUNSHADE INSTALLATION Remove the protective backing from the Velcro that is on the edge of the sunshade. Place the sunshade on the outside edge of the carrying case and press Velcro into place. Delvcam DELV-4KSDI28 / DELV-4KSDI24 / DELV-4KSDI15 Page 3... -
Page 4: Monitor Front
8 EXIT Back or exit 9 F1-F4 User definable buttons Default function options: F1 Display Mode, F2 Display Rotate, F3 Safety Marker, F4 Aspect 10 Power Indicator Light Red: Standby, Green: Working 11 Earphone Jack Delvcam DELV-4KSDI28 / DELV-4KSDI24 / DELV-4KSDI15 Page 4... -
Page 5: Monitor Rear
4K 60Hz, HDMI 2, HDMI 3 and HDMI 4: HDMI1.4, support 4K 30Hz) 8 Unbalanced audio input L/R 9 SDI input/output ports 10 XLR Power 11 Power switch I = ON, O = OFF Delvcam DELV-4KSDI28 / DELV-4KSDI24 / DELV-4KSDI15 Page 5... -
Page 6: Button Operation
Functions can be customized to meet user’s needs: center marker, safety marker, aspect ratio, under scan, check field, image freeze, peaking, display mode and im- age flip. Default options F1：Display Mode F2：Display Rotate F3：Safety Marker F4：Aspect Delvcam DELV-4KSDI28 / DELV-4KSDI24 / DELV-4KSDI15 Page 6... - Page 7 Analog, Digital 1, Digital 2, Digital 3, Digital 4 Auto Adjust Press to confirm H Position 0-100 VGA—for adjusting VGA V Position 0-100 signal modes Clock 0-100 Phase 0-100 Info Displays current information Delvcam DELV-4KSDI28 / DELV-4KSDI24 / DELV-4KSDI15 Page 7...
-
Page 8: Troubleshooting
SETTINGS Reset Press to confirm Menu Time 5-60s OSD H Position 0-100, to set menu display area OSD V Position 0-100, to set menu display area System Transparency 0-255, to set menu transparency OSD Rotate 0°, 90°, 270° Border Width 0-10 Border Color R, G, B, W...
