Page 1: User Guide

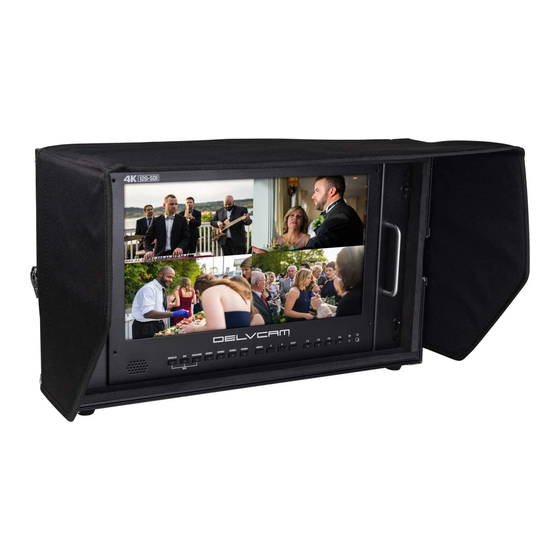

DELV‐12GSDI‐15 User Guide 15.6” 4K 12G‐SDI Mul format Monitor with Road Ready Case Supports 4K Quad Link... -
Page 2: Important Safety Instructions
Fits standard 19" 6RU equipment rack Carrying Case Rugged carrying case provides added protection, stability, and portability. INCLUDED ACCESSORIES Collapsible Sunshade Carrying Case 15V 4-Pin XLR Power Cable Battery Plate Bracket V-Mount Tally Connector Kit Delvcam DELV‐12GSDI‐15 Page 2... -
Page 3: Specifications
389×267×38mm (524 x 305 x 170mm with case) 7.1 lb (6.5 lb with case) Weight: 3.2 kg (2 kg with case) SUNSHADE INSTALLATION Place the sunshade on the outside edge of the carrying case and press Velcro into place. Delvcam DELV‐DELV‐12GSDI‐15 Page 3... -
Page 4: Monitor Front
6 ► Select options in the menu. 7 EXIT Back or exit 8 F1-F4 User definable buttons Default function options: F1 Display Mode, F2 Display Rotate, F3 Safety Marker, F4 Aspect 9 Power Indicator Light Red: Standby, Green: Working 10 Earphone Jack Delvcam DELV‐DELV‐12GSDI‐15 Page 4... -
Page 5: Monitor Rear
6 SDI output (BNC) - corresponds to SDI input 7 HDMI input HDMI 1: HDMI 2.0, 4K 60Hz HDMI 2, 3, & 4: HDMI 1.4, 4K 30Hz 8 15VDC power supply XLR connector 9 Power Switch Pin number Signal ① ……... ②③ +15V ④ Delvcam DELV‐DELV‐12GSDI‐15 Page 5... -
Page 6: Volume Operation
Available options: center marker, safety marker, aspect ratio, under scan, check field, image freeze, peaking, display mode and image flip. Default options F1：Display Mode F2：Display Rotate F3：Safety Marker F4 : Aspect Delvcam DELV‐DELV‐12GSDI‐15 Page 6... - Page 7 Resets to default Menu Time 5-60s OSD H Position 0-100 OSD V Position 0-100 System Language English, Chinese Transparency 0-255 OSD Rotate 0°, 90°, 270° Border Width 0-10 Border Color R, G, B, W Info Displays current information Delvcam DELV‐DELV‐12GSDI‐15 Page 7...
- Page 8 3G-SDI 4:4:4 GBR 10bits 3G-LevelA/DL 3G-Level B 1280×720 (23.98/24/25/29.97/30/50/59.94/60p) 4:4:4 GBR+A 10bits 4:4:4 YCbCr 10bits 4:4:4 YCbCr+A 10bits 1920×1080/2048×1080 (50/59.94/60i) (23.98/24/25/29.97/30p) 4:2:2 YCbCr 10bits DS 3G-Level B (23.98/24/25/29.97/30Psf) 4:2:2 YCbCr 10bits DS 3G-Level B 1280×720 (23.98/24/25/29.97/30P Delvcam DELV‐DELV‐12GSDI‐15 Page 8...
- Page 9 4:4:4 YCbCr 12bits 4:2:2 YCbCr 12bits 4:2:2 YCbCr 10bits 3840×2160/4096×2160 (47.95/48/50/59.94/60p) 4:4:4 GBR 10bits 3840×2160/4096×2160 (23.98/24/25/29.97/30p) 4:4:4 GBR+A 10bits 4:4:4 YCbCr 10bits 3G-SDI Quad Link 2SI 4:4:4 YCbCr+A 10bits 4:4:4 GBR 12bits 4:4:4 YCbCr 12bits 4:2:2 YCbCr 12bits Delvcam DELV‐DELV‐12GSDI‐15 Page 9...
-
Page 10: Troubleshooting
TROUBLE SHOOTING 1. No Image - Ensure that the power is on and the cables are properly connected. - Use the standard power adapter that is included as improper voltage input may cause damage or injury. 2. Incorrect or Abnormal Colors - Ensure that the cables are properly connected.
