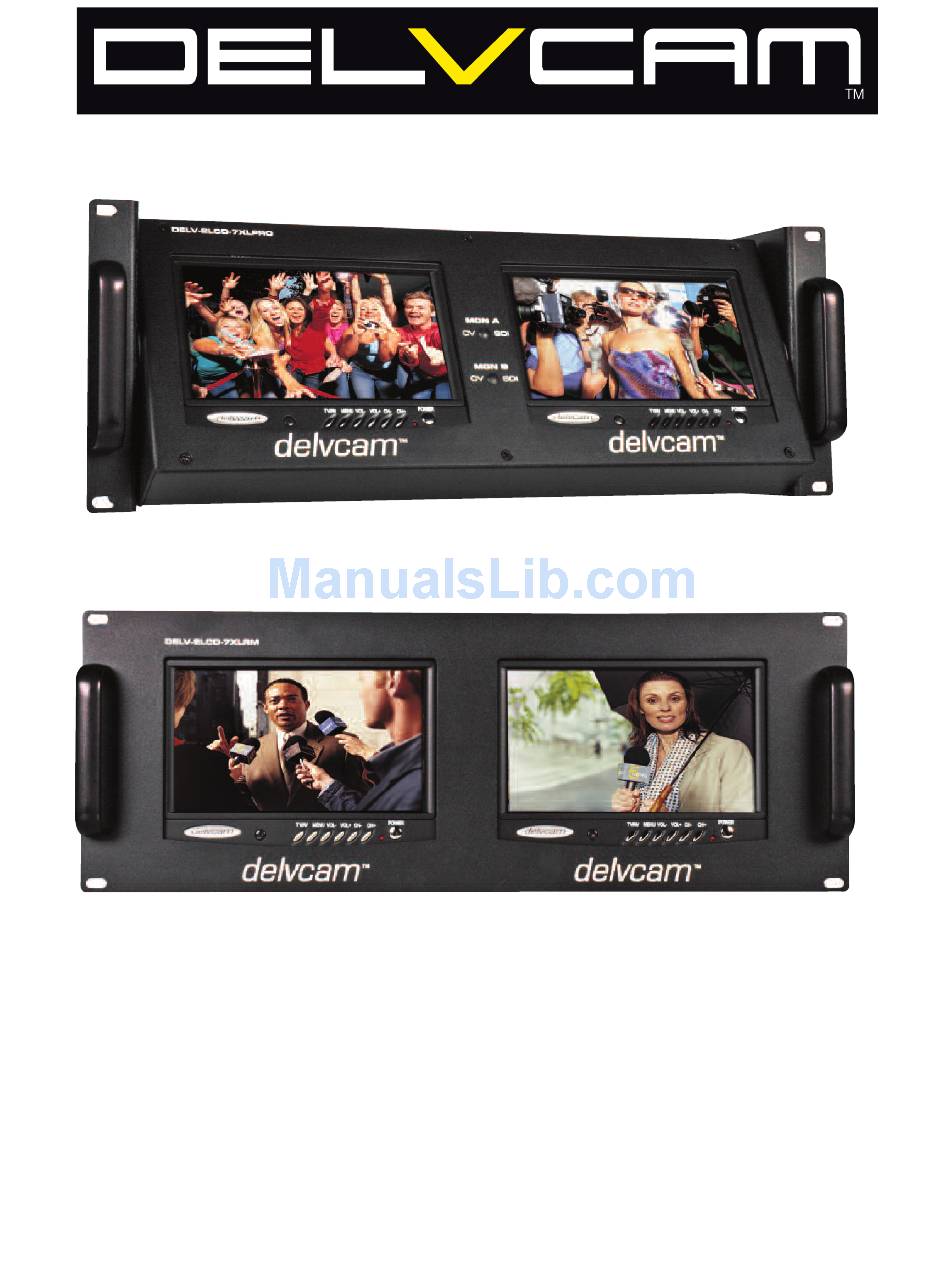

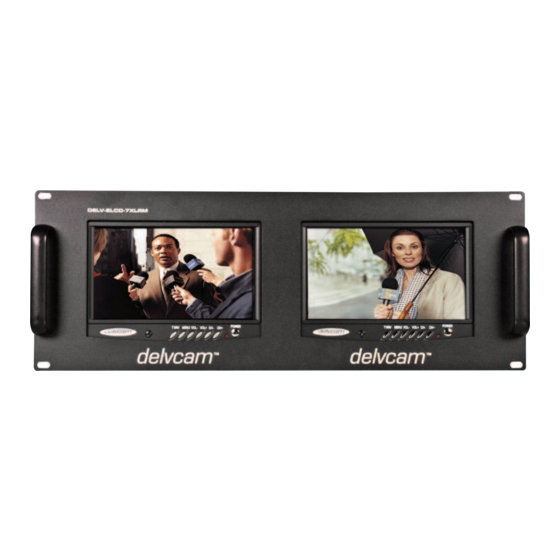

- Page 1 DELV-2LCD-7XLPRO DELV-2LCD-7XLRM DELV-2LCD7XLS (SDI) NTSC 7" C TFT 16:9 / 4:3 OLOR LCD R ACKMOUNT ONITOR ERIES ANUAL...
-
Page 2: Product Description
I. Product Description Get ready for the new and demanding high resolution video production market, the Delvcam LCD series advanced monitoring system is loaded with features. A dual mon- itor rackmount solution for the high end video environment, the Delvcam LCD series provides both 16:9 and standard 4:3 aspect ratio video monitoring in a well designed, rackmount housing with optional adjustable pitch. -
Page 3: Items Included
III. Items Included DELV-2LCD-7XLPRO Hand-Held IR Remote Control Unit (2) 75 Ohm Terminator (2) RF Adapter (Monitor A Only) 110-220V 50/60Hz Power Adapter: 12VDC @ 4A Items Included DELV-2LCD-7XLRM & DELV-2LCD7XLS (SDI) DELV-2LCD-7XLRM ONLY Hand-Held IR Remote Control Unit (2) - Page 4 Complete instructions for LCD setup and operation are covered in the included LCD manual. Please note that the manual does cover mechanical items and topics that are no longer covered for the Delvcam dual-rack monitor configuration. It is recommended that you read and study that manual first.
-
Page 5: Rear Panel Connections
V. Rear Panel Connections DELV-2LCD-7XLPRO Power Entry Monitor B - Video input (looping) Monitor B - Audio input Monitor A - RF (CATV) input Monitor A - Audio input Monitor A - Video input (looping) VI. Monitor Tilt Operation Mount Monitor in Rack... - Page 6 VII. Rear & Side Panel Features DELV-2LCD-7XLRM For presentation clarity, information is shown for one monitor only Interface Area - Side View Monitor A & B Headphone Jack Internal Antenna AV Input 2 Speaker - Left AV Input 1 Speaker - Right 12V DC Power Input External RF Input Jack...
- Page 7 VIII. Rear Panel Connections DELV-2LCD-7XLS (SDI) For presentation clarity, information is shown for one monitor only Audio L-R Input Power Input 12V DC @ 1.2A Encoder Circuit On / Off Note: If battery powered this switch must be turned off after use. Composite Video / SDI Video Switch Composite Video Input - Note: CVI uses side port AV1 input SDI Video Input (terminated)
-
Page 8: Safety Warning
AFETY ARNING 1. To prevent fire or shock hazard, do not expose this equipment to the environment of high humidity and dust. Do not use it in an unprotected outdoor installation or any area classified as wet. 2. The temperature for installation should be kept between -40°C ~ +95°C. Avoid direct sunlight or extreme changes of temperature.
