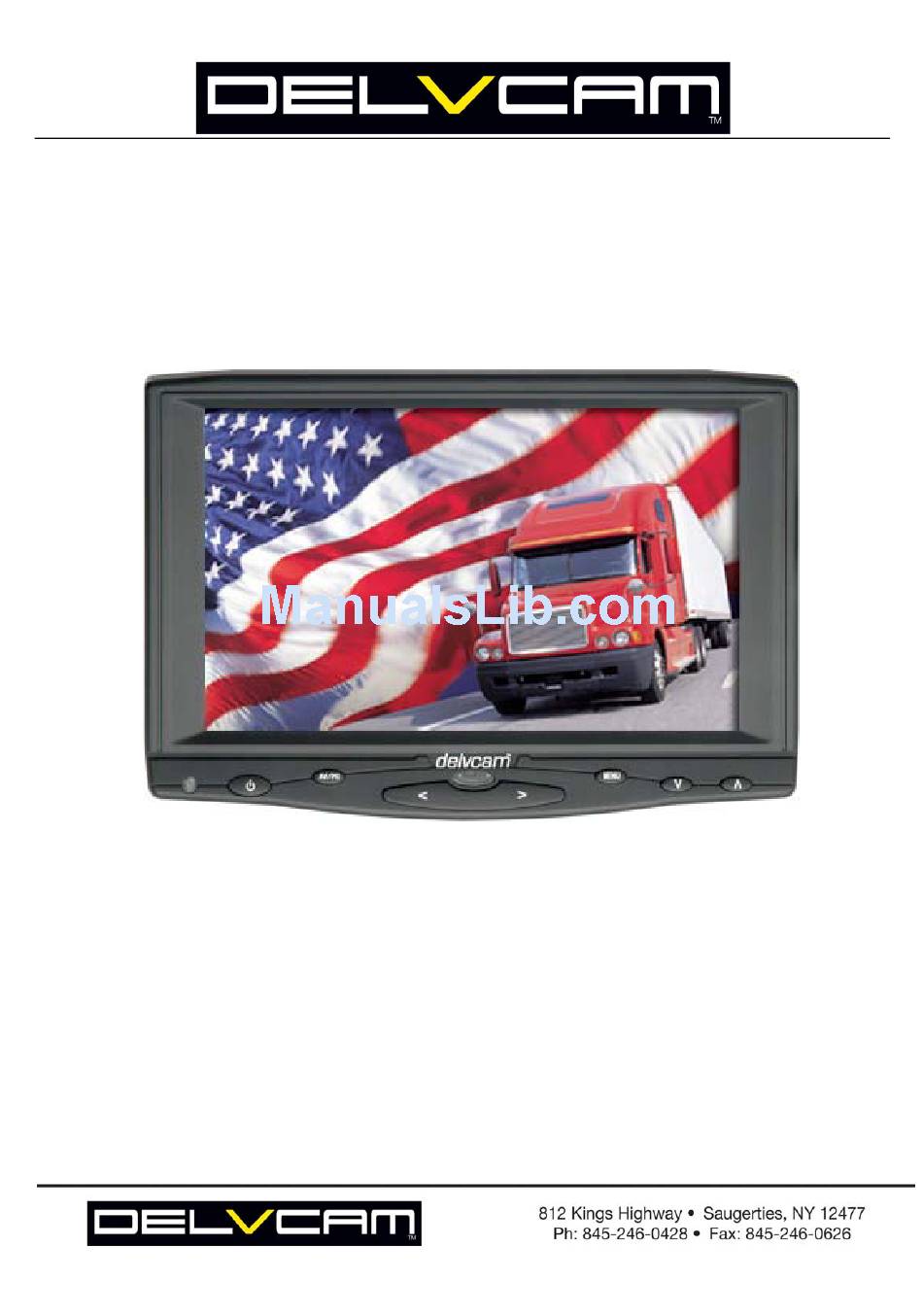

DELV-HD7
HDMI-VGA-VIDEO MONITOR
With Dual Composite Video/Audio

USER MANUAL

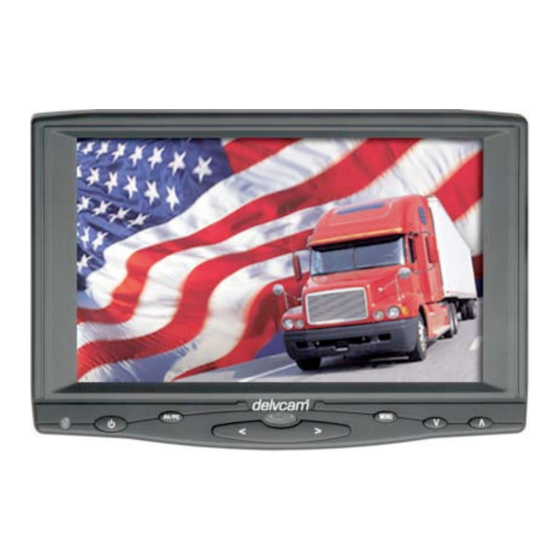

Thank you for purchasing the DELVCAM HD-7 High Definition liquid crystal display monitor. This
product employs new integrate circuits and high quality TFT LCD modules. It operates with low power
consumption, emits no radiation, and is a compact form factor. The color TFTLCD is the most suitable
display for VGA,VCD, DVD and GPS system for motorcars and ships. It also can be used in the high
end media facilities for in-line monitoring of HDMI, VGA and Composite Video signals. This product is
manufactured to the highest standards and will operate well in all applications where performance is
demanded but for a cost effective price.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DELV-HD7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DELVCAM DELV-HD7

Summary of Contents for DELVCAM DELV-HD7

  • Page 1: User Manual

    With Dual Composite Video/Audio USER MANUAL Thank you for purchasing the DELVCAM HD-7 High Definition liquid crystal display monitor. This product employs new integrate circuits and high quality TFT LCD modules. It operates with low power consumption, emits no radiation, and is a compact form factor. The color TFTLCD is the most suitable display for VGA,VCD, DVD and GPS system for motorcars and ships.

  • Page 2: Specifications

    CONTENTS 1. PRODUCT DESCRIPTION --------------------3  DESCRIPTION OF MONITOR FUNCIONS --------------------3  REMOTE CONTROLLER --------------------4  MEDIA BREAKOUT CABLE --------------------5 2. MENU OPERATION --------------------6 SPECIFICATIONS: DISPLAY PANEL TFT LCD 7” LCD MONITOR 144000 Pixels RESOLUTION 800X480(VGA) UP RESOLUTION 1920X1440(VGA) BRIGHTNESS 300 cd/m CONTRAST 500:1...
  • Page 3 DESCRIPTION OF MONITOR FUNCTIONS Picture 1 1. Indicator light : Power on/off (VGA), AV switch. Volume down or to adjust the value of setting function 5. Infrared receiving window Volume up or to adjust the value of setting function To activate OSD menu. Selection key, to adjust phase directly.

  • Page 4: Remote Control Operation

    REMOTE CONTROL OPERATION Power on/off : MUTE : To activate OSD menu. : Volume down or to adjust the value of setting function : Volume up or to adjust the value of setting function : Selection key, to adjust the brightness directly. : Selection key, to adjust phase directly.
  • Page 5 MULTIMEDIA BREAKOUT CABLE: used to interface VGA/Composite Video/Audio 1. input end: connect to matching jack on monitor 2. 9-pin plug for VGA adapter(below) 3. Power jack 12 VDC input: This power input is the same as the chassis mounted power jack 4.

  • Page 6: Manual Operation

    Manual operation After connecting power, the unit will be in standby state red light - Press ” ” on the unit or on the remote controller, the buttons of the unit will blue light, at that time the unit begins to work. Press the same button again the unit will return to its standby state (Note the blue button will black out in 5 or 6 seconds soon after you turn off unit.).

  • Page 7: Description Of Osd

    Description of OSD In (VGA) mode （Color） After enter into “Color” item of OSD, use to select and then push ”to adjust. Brightness: To adjust the brightness. Contrast: To adjust the contrast of image. Color Temp To adjust the contrast of Color Temp. Color temperature of OSD is adjustable.
  • Page 8 Note: when you select the “USER” item a mini box will appear in the right bottom corner of the OSD. As pictured below. Adjust Auto Config To adjust automatically .If the auto-adjust is not satisfy your request, you can adjust manually. H Position To adjust the picture in horizontal.
  • Page 9 Function Reset Back to original setting. Display Ratio To change the display ratio,16:9/4:3. LR Rotation To change the picture left/right. UD Rotation To change the picture up/ down. Sound Volume: To adjust the volume.
  • Page 10 In AV mode Color Brightness: To adjust the brightness. Contrast: To adjust the contrast. Hue: To adjust the hue adjust in NTSC mode. Saturation: To adjust the saturation. Language 2 languages for OSD as below English H Position To adjust the OSD position in horizontal. V Position To adjust the OSD position in vertical.
  • Page 11 Function Reset Back to original setting. Display Ratio To change the display ratio,16:9/4:3. LR Rotation To change the picture left/right. UD Rotation To change the picture up/ down. Sound Volume: To adjust the volume.

  • Page 12: Safety Precautions

    SAFETY PRECAUTIONS To prevent fire or shock hazard, do not expose this equipment to an environment of high humidity and/or dust. Do not use in an unprotected outdoor installation or any area classified as overly damp or wet. The temperature for installation should be kept between 0°C ~ 60°C. Avoid direct sunlight exposure or extreme changes of temperature over a short period of time.
