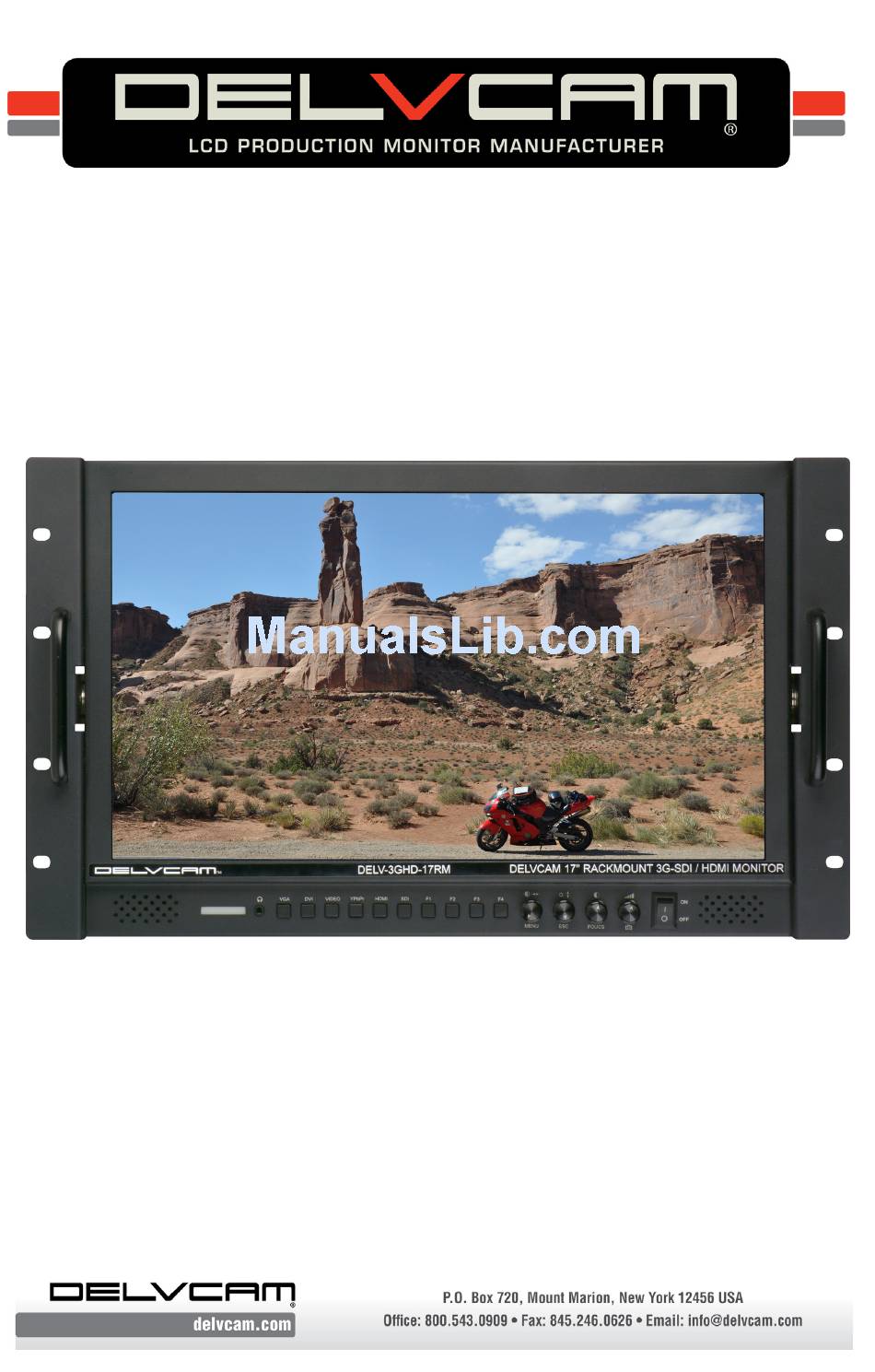

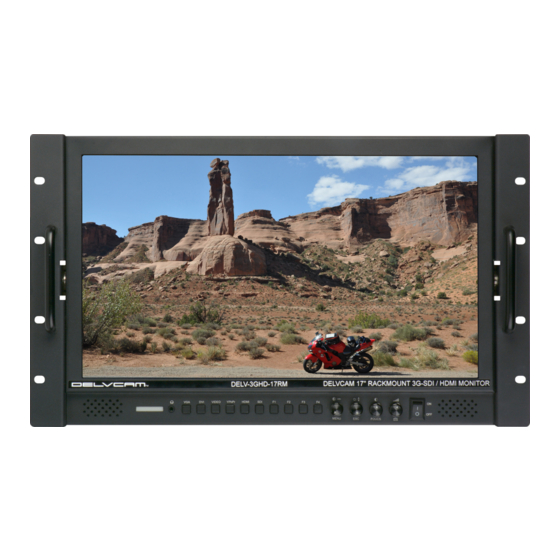

- Page 1 Delvcam DELV-3GHD-17RM 17.3" High Resolution 3G-SDI/HDMI Rackmount LCD Video Monitor...
-
Page 2: Important Safety Instructions
Ultra-slim design with grip handles Durable black powder-coated steel 2RU cabinet High Quality Image 1920 x 1080 resolution Mutliple Inputs/Outputs 3G-SDI, HDMI, YPbPr, CVBS, Video, Audio INCLUDED ACCESSORIES 12VDC/3A Power Adapter Tally Interface Board Tilting Rackmount Kit Delvcam DELV-3GHD-17RM Page 2... -
Page 3: Specifications
SDI Support Format: 1080i(60/59.94/50) 1080p(60/59.94/50/30/29.97/25/24/24fps/ 23.98/23.98fps) Audio: Stereo Earphone Jack/Speakers Power Input: 12VDC 4-pin XLR Input Voltage: 7-18VDC Power Consumption: Backlight; Dimensions (LxHxD): 16.3 x 11.02 x 1.38 in /414 x 280 x 35.1 mm Weight: 5.98lb/2710 g Delvcam DELV-3GHD-17RM Page 3... -
Page 4: Monitor Front
6 YPbPr Analog color signal input selection 7 HDMI signal input selection 8 SDI signal input selection 9 F1-F4 Customizable buttons 10 MENU/Saturation/L/R Rotate 11 EXIT/Brightness/U/D Rotate 12 Focus Assist/Contrast 13 Camera Mode/Volume 14 POWER ON/OFF Delvcam DELV-3GHD-17RM Page 4... -
Page 5: Monitor Rear
18 Audio R channel input 7 HDMI signal input 19 3G-SDI signal input 8 HDMI signal output 20 3G-SDI signal output Tally Indicator Input 4-pin XLR Indicator Pin # Signal Color Connection Green No connection No connection Yellow +12V Delvcam DELV-3GHD-17RM Page 5... -
Page 6: Operation
Zoom All: Rotate MENU knob to ad- just the image OSD Time: Menu display time U/D Zoom: Rotate MENU knob to adjust the image L/R Zoom: Rotate MENU knob to adjust the image Delvcam DELV-3GHD-17RM Page 6... - Page 7 Turn MENU knob to select Center Marker, Safe Frames, Check Field, Aspect Ratio, Image Flip, P2P, Image Freeze, Backlight, or Color Temp. Press MENU button to set selected function. Repeat to set F2, F3 and F4 buttons. Delvcam DELV-3GHD 17RM Page 7...
-
Page 8: Troubleshooting
TROUBLE SHOOTING 1. No Image - Ensure that the cables are properly connected. - Ensure the signal source is synchronized with the output interface. - Use the standard power adapter that is included as improper power input may cause damage or injury. 2.
