Summary of Contents for DELVCAM DELV-8LCD-SDI

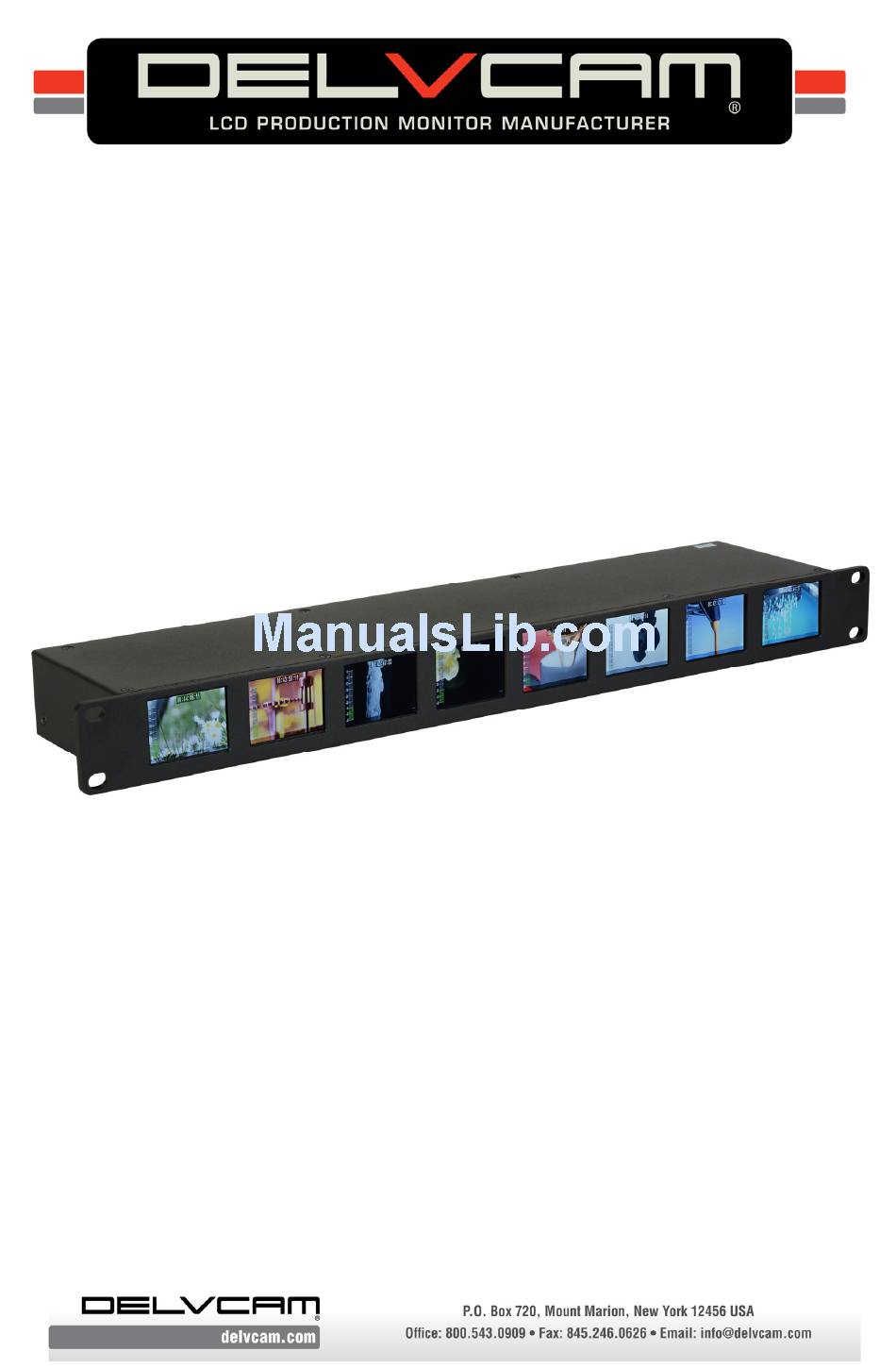

- Page 1 Delvcam DELV‐8LCD‐SDI 1RU Rackmount 8‐LCD 3G‐SDI Video Monitor...
-
Page 2: Important Safety Instructions
Ac vated with DIP switches for each monitor Computer Interface Control func ons such as brightness, contrast, UMD, audio level meter, and me code for each monitor INCLUDED ACCESSORIES 15VDC/2.5A Power Adapter Power Cord Delvcam DELV‐8LCD‐SDI Page 2... -
Page 3: Specifications
Level A & Level B 720p(60/59.94/50/30/29.97/25/24/23.98) Level B 2X 1080i(60/59.94/50) ITU-R BT 656:576i(50) Audio: Embedded Audio Meter per screen Input Voltage: 12-24VDC Current: 15VDC/2.5A Power Consumption: Dimensions (LxHxD): 19 x 4.13 x 1.73 in Weight: 3.43 lb Delvcam DELV‐8LCD‐SDI Page 3... - Page 4 1 Time Code—Controls monitors to the left of Switch 2 Audio Level Meter —Controls monitors to the left of Switch 3 Time Code—Controls monitors to the right of Switch 4 Audio Level Meter—Controls monitors to the right of Switch Delvcam DELV‐8LCD‐SDI Page 4...
- Page 5 4. UMD Data: Enter no more than 32 characters. Click Data Send to display the characters. Default se ngs are the numbers 1 through 8. 5. The interface opera on overrides dipswitch se ngs for audio level meters and me codes. Delvcam DELV‐8LCD‐SDI Page 5...
-
Page 6: Troubleshooting
TROUBLE SHOOTING No Image - Ensure that the cables are properly connected. - Use the standard power adapter that is included as improper voltage input may cause damage or injury.
