Summary of Contents for DELVCAM DELV-SDI-7

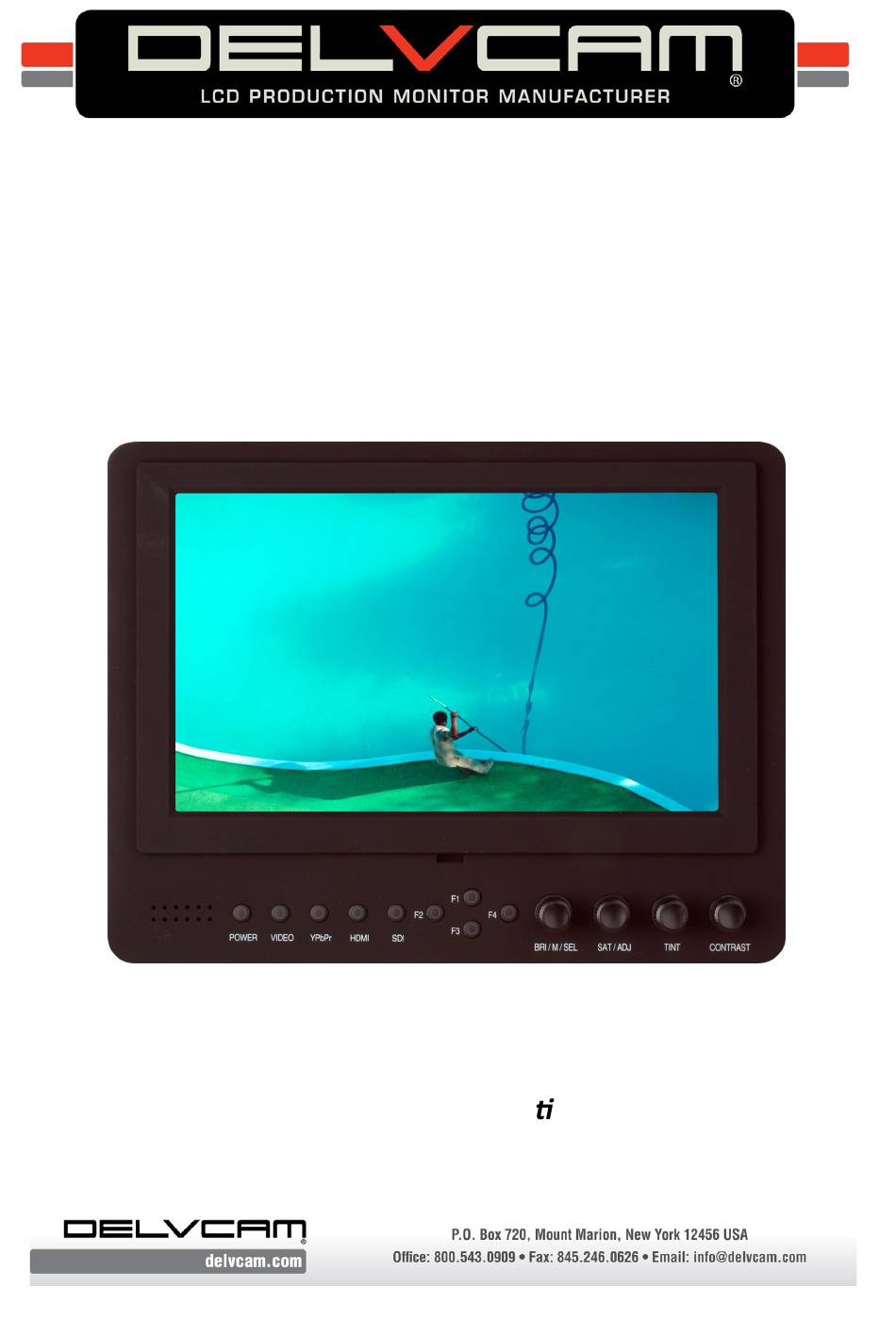

- Page 1 Delvcam DELV‐SDI‐7 7"Advanced Func on 3G‐SDI Camera‐Top LCD Monitor...
-
Page 2: Important Safety Instructions
Bauer/V-Mount, DU21 Ba ery Plate QM91D Shoe Mount Ba ery Plate F-970 Li-Ion Ba ery HDMI Type A-C DELV-ABBC-21 DC Adapter DELV-Magicarm Shoe Mount Adapter 24PFS,25FPS,30FPS ,50FPS and 60FPS Delvcam DELV‐SDI‐7 Page 2... -
Page 3: Specifications
1080p/25Hz; 1080p/29.97Hz; 1080p/30Hz; 1080i/50Hz; 1080p/50Hz; 1080p/59.94Hz; 1080i/59.94Hz; 1080i/60Hz 480i/59.94Hz, 576i/50Hz, 720p/50Hz, 720p/59.94Hz, HD-SDI: 720p/60Hz, 1080i/50Hz, 1080p/50Hz, 1080i/59.94Hz, 1080p/59.94Hz, 1080i/60Hz Audio: Speaker Input Voltage: 12VDC (XLR) Power Consumption: Dimensions (LxHxD): 7.66x5.91x1.52 in Weight: 1.06 lbs/1.41 lbs (with cover) Delvcam DELV‐SDI‐7 Page 3... -

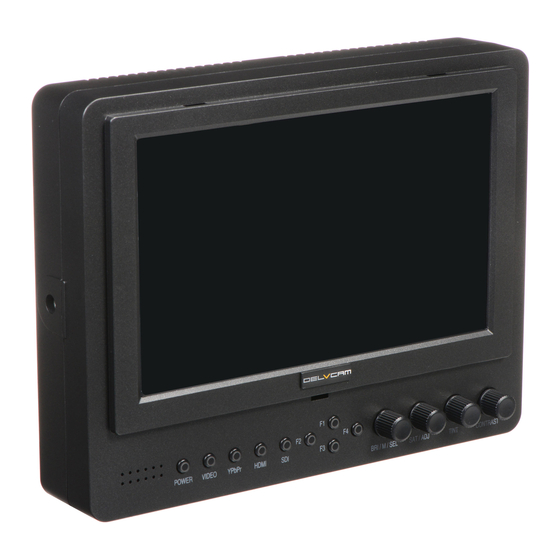

Page 4: Monitor Front
7 Pb Input 8 Pr input 9 HDMI Output 10 HDMI Input 11 Battery Plate Pin Number 12 DC Power Input 13 4-Pin XLR DC Power Input - - - 14 Battery Power On/Off Switch +12V Delvcam DELV‐SDI‐7 Page 4... -
Page 5: Operation
Full Screen, 4:3, 16:9 Pixel-to-Pixel ON/OFF Camera (5DII) (5DIII 480P /1080I Mode) H/V Delay OFF, H&V Delay, V Delay, H Delay Underscan ON/OFF MARKER Center Marker OFF, ON Screen Markers OFF, 95%, 93%, 90%, 88%, 85%, 80% Delvcam DELV‐SDI‐7 Page 5... - Page 6 Small, Medium, Large—can adjust source, position, and swap PBP, POP—can adjust ON/OFF Input Format OSD 5s, 10s, 15s Logo ON/OFF Freeze Input ON/OFF Image Flip ON/OFF Peaking Mono/Color Asst Func Manual/AUto Man Default OK/Cancel Factory Use Only Delvcam DELV‐SDI‐7 Page 6...
- Page 7 Aspect Ratio Definable Camera Options Center Marker Check Field Color Bar Exposure False Color Freeze Input Histogram H/V Delay Peaking Pixel to Pixel Screen Marker Underscan Zoom R1-R4 User Brightness Definable Contrast Options Saturation Sharpness Tint Delvcam DELV‐SDI‐7 Page 7...
-
Page 8: Troubleshooting
TROUBLE SHOOTING 1. No Image - Ensure that the cables are properly connected. - Use the standard power adapter that is included as improper voltage input may cause damage or injury. 2. Incorrect or Abnormal Colors - Ensure that the cables are properly connected. - Check the signal source video output.
