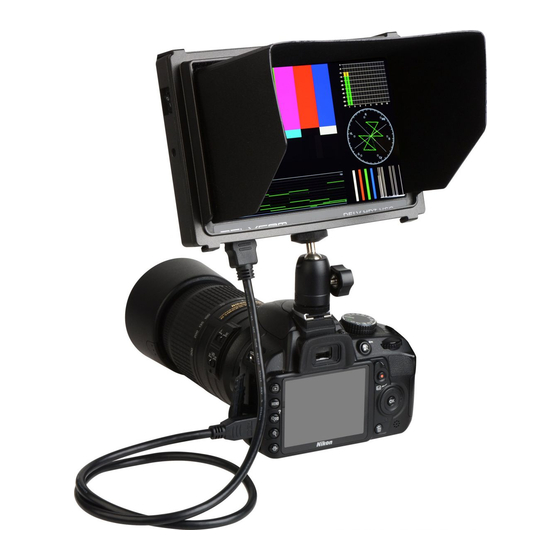

- Page 1 Delvcam DELV-HD7-HSC User Guide 7" HD LCD Video Monitor with HDMI/SDI Cross Conversion & Waveform/Vectorscope...
- Page 2 OPTIONAL ACCESSORIES Sunshade Anton Bauer Mount HDMI AC Cable V-Mount 12VDC Adapter Battery Shoe Mount Battery Plates – F-970, LP-E6 Mount Plate Bracket VESA Battery Bracket Delvcam DELV-HD7-HSC Page 2...
- Page 3 SMPTE-372M 1080p(60/59.94/50/30/29.97/25/24/23.98) SMPTE-425M-AB 1080p(60/59.94/50) -Level A &Level B 720p(60/59.94/50/30/29.97/25/24/23.98) -Level B2X 1080i(60/59.94/50) ITU-R BT.656 576i(50) Audio: Earphone Jack/Speaker Power Input: 12VDC Input Voltage: 7-24VDC Power Consumption: Backlight; Dimensions (LxHxD): 7.17x4.88x0.87in / 182×124×22mm Weight: 0.9lb / 405g Delvcam DELV-HD7-HSC Page 3...
- Page 4 9 SDI Output 2 Menu Dial 10 Earphone Jack 3 Exit 11 HDMI Output 4 F1, F2 User Definable Buttons 12 HDMI Input 5 SDI/HDMI Input switch 13 12VDC Power Input 6 Fan Cooling Holes 7 Speaker Delvcam DELV-HD7-HSC Page 4...
- Page 5 Blue Offset 0-511 Center Marker OFF, ON Aspect Marker OFF, 16:9, 1.85:1, 2.35:1, 4:3, 3:2 Safety Marker OFF, 95%, 93%, 90%, 88%, 85%,80% Marker Color Red, Green, Blue, White, Black Marker Mat OFF, 1-7 Thickness 2, 4, 6 Delvcam DELV-HD7-HSC Page 5...
- Page 6 Histogram Y, RGB, Color Time Code OFF, LTC, VITC (SDI mode only.) Volume 0-100 Level OFF, ON (default ON under waveform Meter multifunction) Audio Ch Ch1&Ch2, Ch3&Ch4, Ch5&Ch6, Ch7&Ch8, Ch9&Ch10, ChH11&Ch12, Ch13&Ch14, Ch15&Ch16 (SDI mode only.) Delvcam DELV-HD7-HSC Page 6...
- Page 7 Turn MENU knob to select Center Marker, Aspect Marker, Check Field, Underscan, Scan, Aspect, DSLR, Freeze, H/V Delay, Peak- ing, False Color, Exposure, Histrogram, Level Meter, Waveform or TimeCode Press MENU button to set selected function. Press Exit Repeat to set F2. Delvcam DELV-HD7-HSC Page 7...
- Page 8 TROUBLE SHOOTING 1. No Image - Ensure that the cables are properly connected. - Use the standard power adapter that is included as improper voltage input may cause damage or injury. 2. Incorrect or Abnormal Colors - Ensure that the cables are properly connected. - Check the signal source video output.
