Summary of Contents for DELVCAM DELV-3GHD-17IRM
-

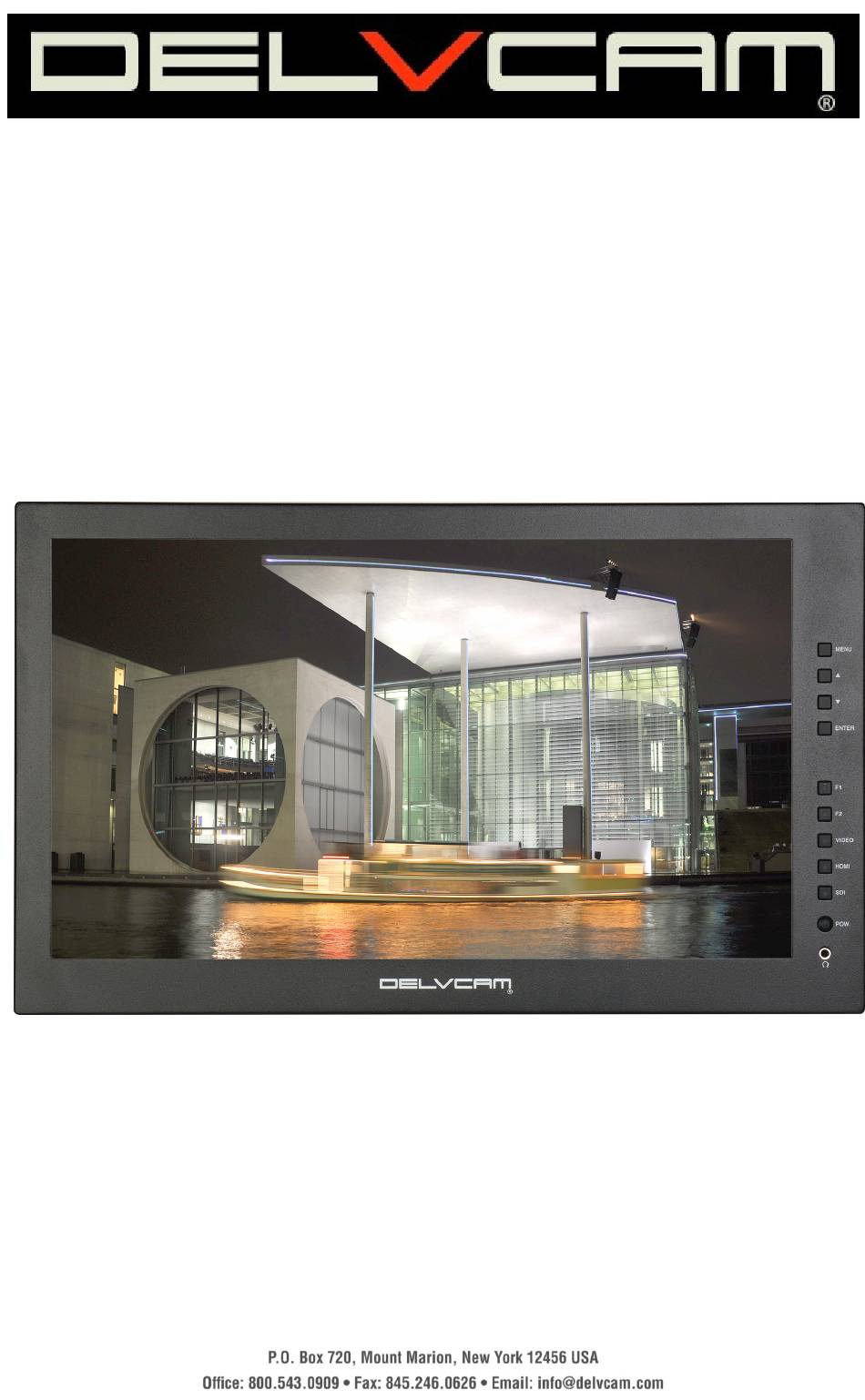

Page 1: User Guide
Delvcam DELV-3GHD-17IRM User Guide 17-Inch Rackmount 3G-SDI LCD Monitor with HDMI-SDI Cross Conversion... -
Page 2: Important Safety Instructions
1902 x 1080 resolution and 700:1 contrast ratio Wide Viewing Angles 178°/178° H/V Rugged Slim Design with Grip Handles Durable black powder-coated steel cabinet INCLUDED ACCESSORIES Frame Bracket 15VDC/2.5A Power Adapter Battery Plate Bracket V-Mount Tally Connector Delvcam DELV-3GHD-17IRM Page 2... -
Page 3: Specifications
Stereo Earphone Jack Speaker: Mono, Right Channel Input Voltage: 12-18VDC (XLR) Power Consumption: Backlight: Mount: VESA 75x75/100x100 Dimensions (LxHxD): 17.48 x 10.39 x 1.28 in / 444 x 264 x 32.5 mm Weight: 7.5 lb./3.4 kg Delvcam DELV-3GHD-17IRM Page 3... -
Page 4: Monitor Front
Select Menu Option Select Menu Option 4 ENTER Confirms Menu Option Selection 5 F1-F2 User Definable Buttons 6 VIDEO Select Button 7 HDMI Select Button 8 SDI Select Button 9 Power LED Indicator 10 Earphone Jack Delvcam DELV-3GHD-17IRM Page 4... -
Page 5: Monitor Rear
2 USB (Factory use only) 3 VESA 75 x 75/ 100 x 100 Mount 4 Connector Protector Bar 5 Tally Port 6 SDI Input/Output 7 Composite Video Input/Output 8 Audio L/R Input 9 HDMI Input/Output 10 4-Pin XLR Power Port Delvcam DELV-3GHD-17IRM Page 5... -
Page 6: Feature Settings
3. Press ENTER to confirm. Repeat for other function button. FUNCTION MENUS Brightness 0-100 Contrast 0-100 Saturation 0-100 Tint 0-100 Sharpness 0-100 Color Temp: 6500°/7500°/9300°K/User - Red/Green/Blue, choose color in User mode Delvcam DELV-3GHD-17IRM Page 6... - Page 7 Logo: OFF, ON Language HDMI/SDI Conversion: OFF, ON 3G Format: Normal, GBRA444 10Bit, YCbCrA444 10Bit, YCbCrA422 12Bit, GBR444 12Bit, YCbCr444 12Bit (SDI mode only) Manufacturer Default: OFF Backlight: 0-100 ISP: Program Upgrades Delvcam DELV-3GHD-17IRM Page 7...
-
Page 8: Troubleshooting
TROUBLE SHOOTING 1. No Image - Ensure that the cables are properly connected. - Use the standard power adapter that is included as improper voltage input may cause damage or injury. - Check that the correct input is selected. 2. Black and White Image Only - Check color saturation, brightness and contrast settings.
