X1379083901
X1379085001
BAS-SVX10C-EN
RT1 thermistor,
W
10 k at 25°C
Note 1:
Temperature
Pot 1 is
setpoint
factory
Pot 5,
calibrated.
1 kW
Field
adjustment
voids
warranty.
System
SW1
Fan
Auto
SW2
On
RT1 thermistor,
W
10 k at 25°C
Note 1:
Temperature
Pot 1 is
setpoint
factory
Pot 5,
calibrated.
1 kW
Field
adjustment
voids
warranty.
System
SW1
Fan
Auto
SW2
On

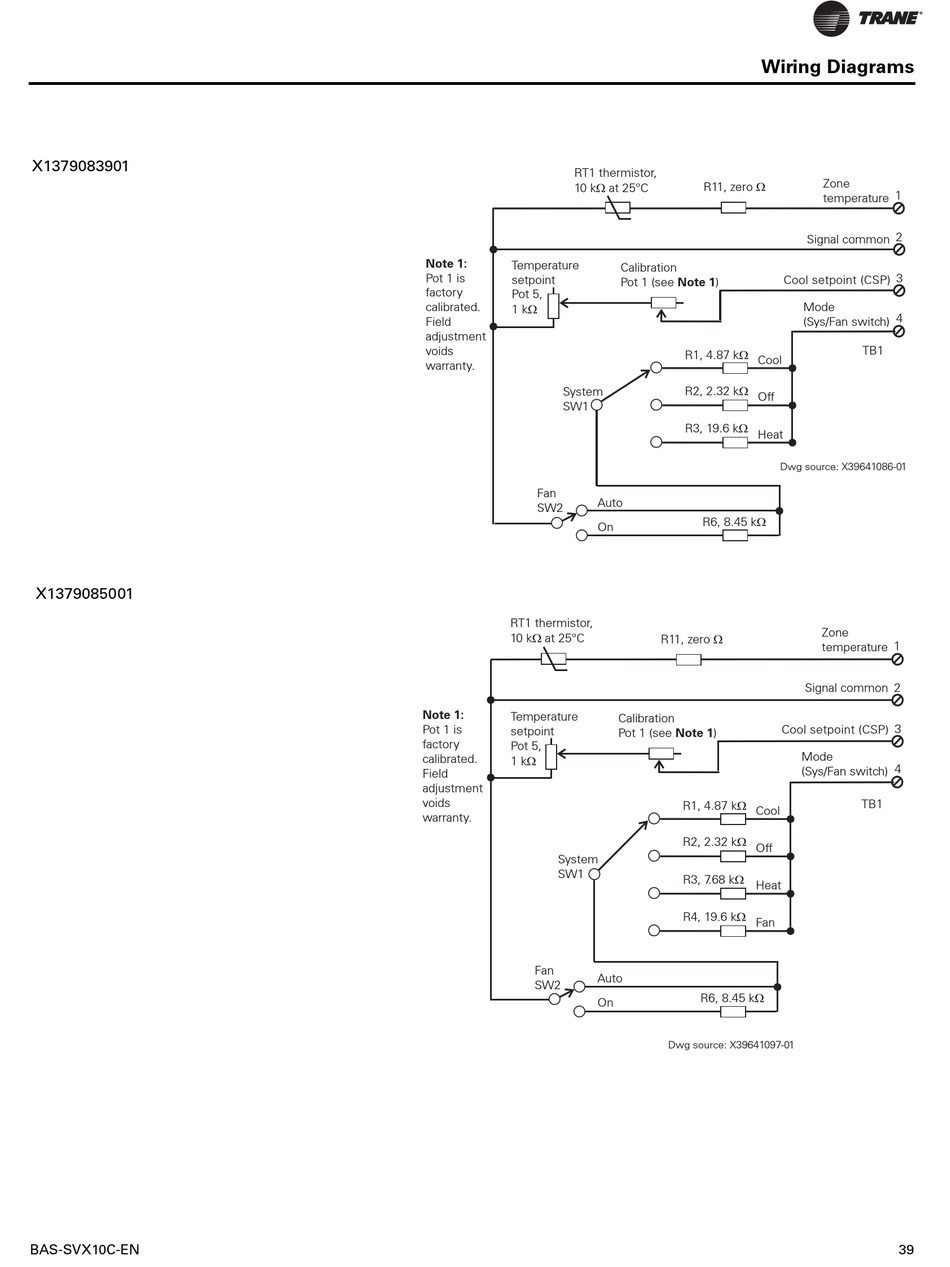

Wiring Diagrams
R11, zero W
Calibration
Cool setpoint (CSP)
Pot 1 (see Note 1 )
R1, 4.87 kW
Cool
R2, 2.32 kW
Off
R3, 19.6 kW Heat
Dwg source: X39641086-01
R6, 8.45 kW
R11, zero W
Calibration
Cool setpoint (CSP)
Pot 1 (see Note 1 )
R1, 4.87 kW
Cool
R2, 2.32 kW
Off
R3, 7 .68 kW Heat
R4, 19.6 kW Fan
R6, 8.45 kW
Dwg source: X39641097-01
Zone
1
temperature
2
Signal common
3
Mode
4
(Sys/Fan switch)
TB1
Zone
1
temperature
Signal common 2
3
Mode
4
(Sys/Fan switch)
TB1
