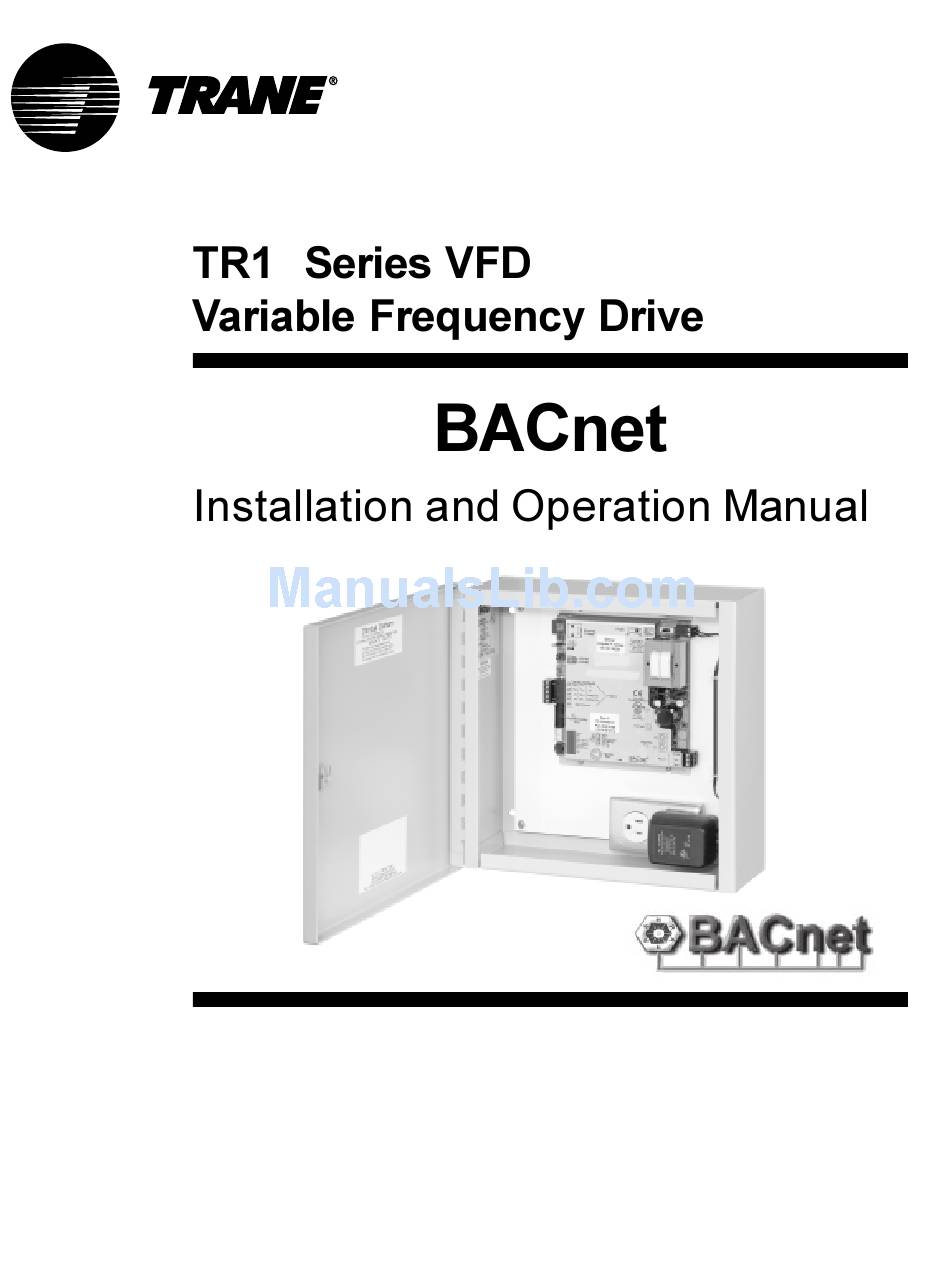

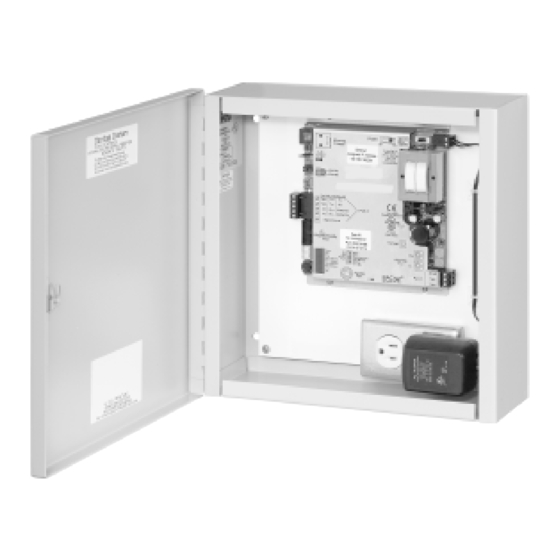

- Page 1 ™ December, 2003 TR1-SVX03A-EN 175R5564...
- Page 2 Warnings Against Unintended Start Rotating shafts and electrical equipment can be hazardous. Therefore, it is strongly recommended that all electrical work conform to National Electrical Code (NEC) and all local regulations. Installation, start- up and maintenance should be performed only by qualified personnel. Electronic components of BACnet portal are sensitive to electrostatic discharge (ESD).
-
Page 5: Ethernet Port
Power Switch 6" " Ethernet Ground 24 VAC Port Ethernet Power 10 baseT 24 Vac Single Class 2 BACnet Source Only 24 VAC, 60-80 Hz Assigned IP Address Port 2 7.2VA, 0.3A Use Copper Conductors Only Configuration EIA-232 Portal Address Label EIA-485 Jumpers BACLink... - Page 6 Torque Control Wiring 24 VAC Input Wiring BACnet portal is a Class 2 device (less than Specification 4.5 in-lbs (0.5 Nm) 18 – 24 AWG 22 AWG (0.3mm 30VAC, 100VA maximum). Take appropriate (0.75mm – 0.2mm isolation measures when mounting BACnet shielded twisted pair portal in control panels where non-Class 2 devices (for example, 120VAC) or wiring are...
- Page 8 NOTE It is highly recommended to use shielded twisted-pair wires to reduce electrical noise on drive communications. Ensure that drive is grounded properly according to instructions in the drive manual. N(-) EIA-485 P(+) EIA-485 SWITCH SETTING Switch 1 Reserved/No function Switches 2 &...
- Page 9 Parameter Name Setting Protocol METASYS N2 Address Baud rate 9600 BAUD (fixed at 9600 for N2 protocol) Coasting LOGIC OR DC brake LOGIC OR Start LOGIC OR Reversing DIGITAL INPUT Select setup LOGIC OR Select speed LOGIC OR Override release time The values in default values.
- Page 10 Wire Connections Ethernet Standard default Æ BACLink ô BACLink Æ ô Optional factory setting EIA-485 EIA-485 NOTE: EIA-485 (2-wire) Net+ and Net- from Port 2 to drive input terminals 68 (+) and 69 (-)
- Page 11 NOTE Steps 2 and 3 in the following connection procedure may have already been factory-set based upon customer ordering information. Default IP address is 192.168.168.xxx. Default subnet mask is 255.255.255.0. Default gateway address is 0.0.0.0. Switch 1 Off/ On Switch 2 Off/ On IP Address Defa ult/ Assig ned...
- Page 12 ARCnet EIA-485 BACLink ® ™ ARCnet NOTE: EIA-485 Net+ and Net- from Port 2 to drive input terminals 68 (+) and 69 (-) Switch 1 Off/ On Switch 2 Off/ On IP Address Defa ult/ Assig ned ARC156/ Other Port 1 Portal Address +0/ +100 EIA-232...
- Page 13 EIA-485 EIA-485 Other BACLink ® ™ EIA-485 Switch 1 Off/ On Switch 2 Off/ On IP Address Defa ult/ Assig ned ARC156/ Other Port 1 Portal Address +0/ +100 NOTE: EIA-485 (2-wire) from Port 2 to drive input terminals 68 (+) and 69 (-) EIA-232 EIA-485...
- Page 14 EIA-232 Other ® BACLink ™ Tx (+) pin1 Rx (-) pin 2 GND pin 5 EIA-485 Switch 1 Off/ On Switch 2 Off/ On IP Address Defa ult/ Assig ned ARC156/ Other Port 1 Portal Address +0/ +100 EIA-232 EIA-485...
- Page 15 SYMPTOM CAUSE SOLUTION Transmit LED ON steady Reversed polarity to drive or short in Reverse wires to drive terminals 68 and receive LED OFF. EIA-485 cable. (+) and 69 (-) or remove short. Transmit LED blinks slowly 3 • • Drive not ON.
- Page 16 BACnet REFERENCE NUMBER DESCRIPTION RANGE 0=Coast stop 1=No coast_# Motor will coast freely to a stop. Drive will not run in any mode coast when coast is active. 0=Stop 1=Start start_# Provides a start command when active. Motor will ramp to stop when stop is active.
- Page 17 BACnet REFERENCE NAME DESCRIPTION RANGE PARA No. bus_ref_# Drive speed command 0% to 100% (open loop) or setpoint (closed loop) via the serial bus. bus_feedback_# Drive feedback value 0% to 100% via the serial bus. bus_feedback_2_# Second drive feedback 0% to 100% value via the serial bus.
- Page 18 BACNet Reference Name UNIT DESCRIPTION PARA NO. reference_# Reference in % between min and max reference. Speed reference in open loop. Setpoint reference in closed loop. feedback_# Par. Feedback using the unit of measure selected in parameter 415. freq_# Drive output frequency. motor_curr_# Current being supplied to motor.
- Page 19 BACnet REFERENCE NAME SELECTION PARA NO. 0=OK 1=Limit current_status_# voltage_status_# 0=OK 1=Limit 0=Not Running 1=Running motor_run_status_# 0=Out of Range 1=In frequency_status_# Range 0=Local 1=Remote control_status_# 0=Not on Ref. 1=On Ref. reference_status_# 0=OK 1= Warning warning_status_# 0=OK 1=Tripped trip_status_# 0=Not Enabled 1=Enabled coast_status_# 0=OK 1=Warning frequency_low_#...
- Page 20 BACnet REFERENCE NAME SELECTION PARA NO. 0=False 1=True reverse_# term_33_# 0=Off 1=On 0=Off 1=On terminal_32_# 0=Off 1=On terminal_29_# 0=Off 1=On terminal_27_# 0=Off 1=On terminal_19_# 0=Off 1=On terminal_18_# terminal_17_# 0=Off 1=On 0=Off 1=On terminal_16_# NOTE: # symbol represents drive ID number. The values in default values.
-
Page 21: Network Information
BACnet Communications Site Survey CSO FIRM CSO PO # CSO CONTACT CSO PHONE Each BACnet portal can control and monitor any mix of TR1 Series VFDs up to a total of ten. Use separate BACnet Communications Site Survey sheet for each portal. NETWORK INFORMATION BACnet can communicate over all of the following networks. - Page 22 Literature Order Number TR1-SVX03A-EN File Number SL-VEN-TR1-000-SVX03A-EN-1203 Supersedes Stocking Location Commercial Communications, Inc.
