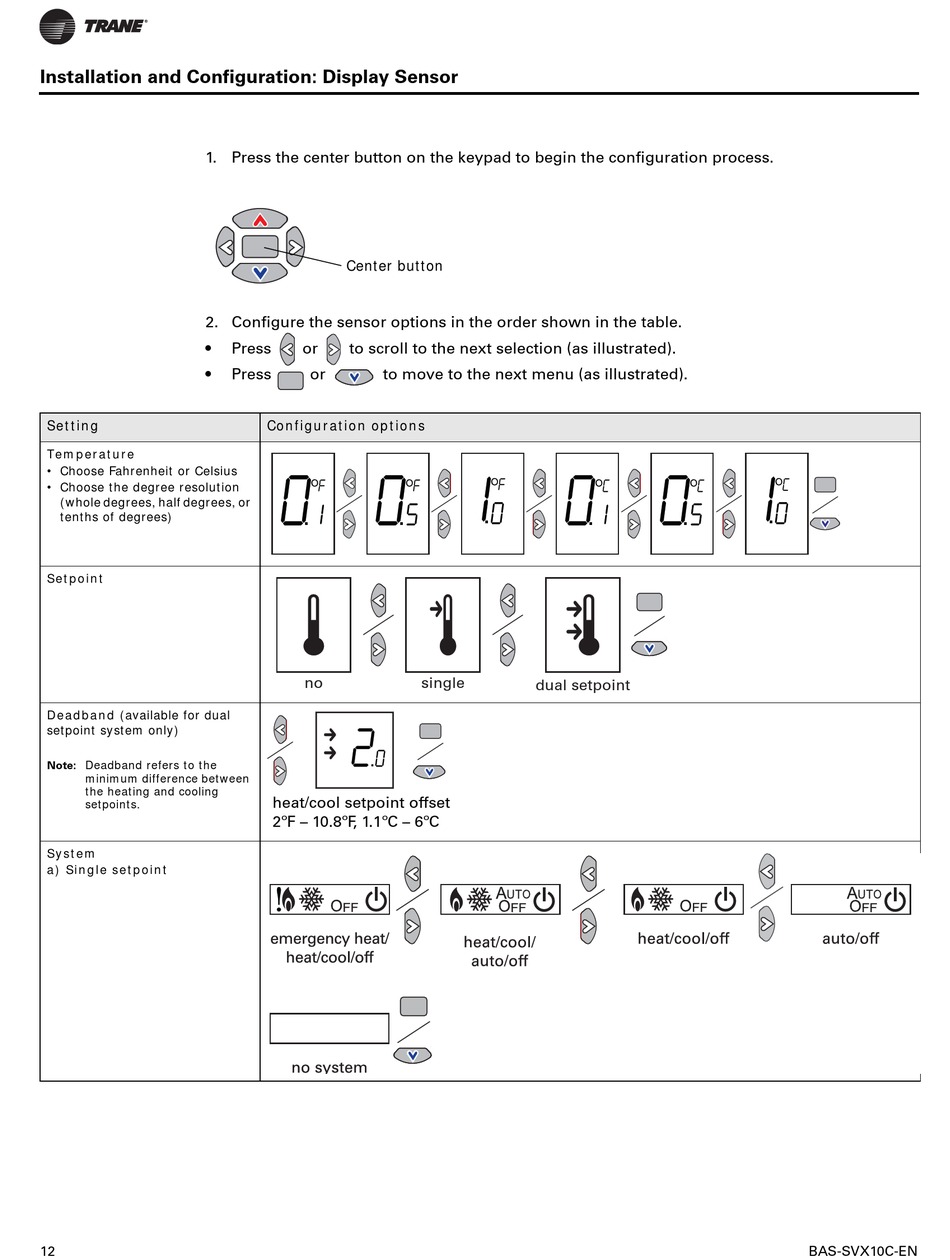

Installation and Configuration: Display Sensor
1. Press the center button on the keypad to begin the configuration process.
2. Configure the sensor options in the order shown in the table.
•
•
Setting
Temperature
• Choose Fahrenheit or Celsius
• Choose the degree resolution
(whole degrees, half degrees, or
tenths of degrees)
Setpoint
Deadband (available for dual
setpoint system only)
Note: Deadband refers to the
minimum difference between
the heating and cooling
setpoints.
System
a) Single setpoint
12
Center button
Press or to scroll to the next selection (as illustrated).
Press or to move to the next menu (as illustrated).
Configuration options
. .
no
i
.
heat/cool setpoint offset
heat/cool setpoint offset
2ºF – 10.8ºF , 1.1ºC – 6ºC (1.8˚F – 10.8˚F , 1˚C – 6˚C)
.
.
single
dual setpoint
i
.
.
BAS-SVX10C-EN
