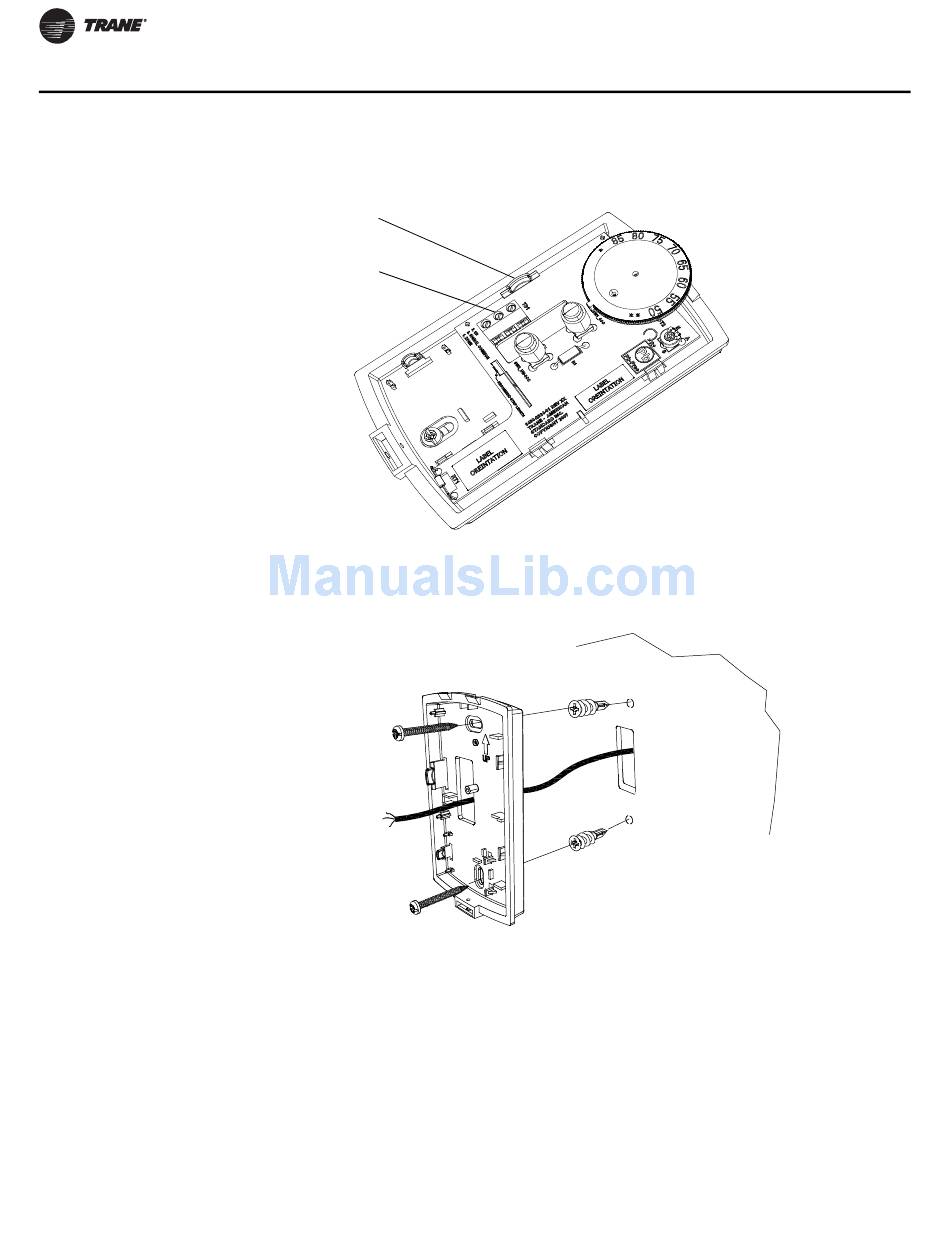

Installation: All Models Other Than the Display Sensor
3. Remove the circuit board by pressing the thumb catch on the left side of the board. Use the
4. Feed the wires through the opening in the back plate.
5. Hold the back plate against the mounting surface and mark the screw locations.
6. Secure the back plate to the mounting surface using the included hardware.
7. Feed the wires through the opening in the circuit board.
8. Replace the circuit board by sliding the right side of the board under the two catches on the right
18
terminal block to lift the circuit board from the back plate.
Thumb catch
Terminal block
side of the back plate, while aligning slot on board with tab on back plate. Press firmly on the
left side of the circuit board to snap it into place.
BAS-SVX10C-EN
