Installation and Configuration: Display Sensor
1. Review the display to ensure that you have selected the correct configuration options.
2. To return the display to operating mode, press the configuration button (see step 1,
14

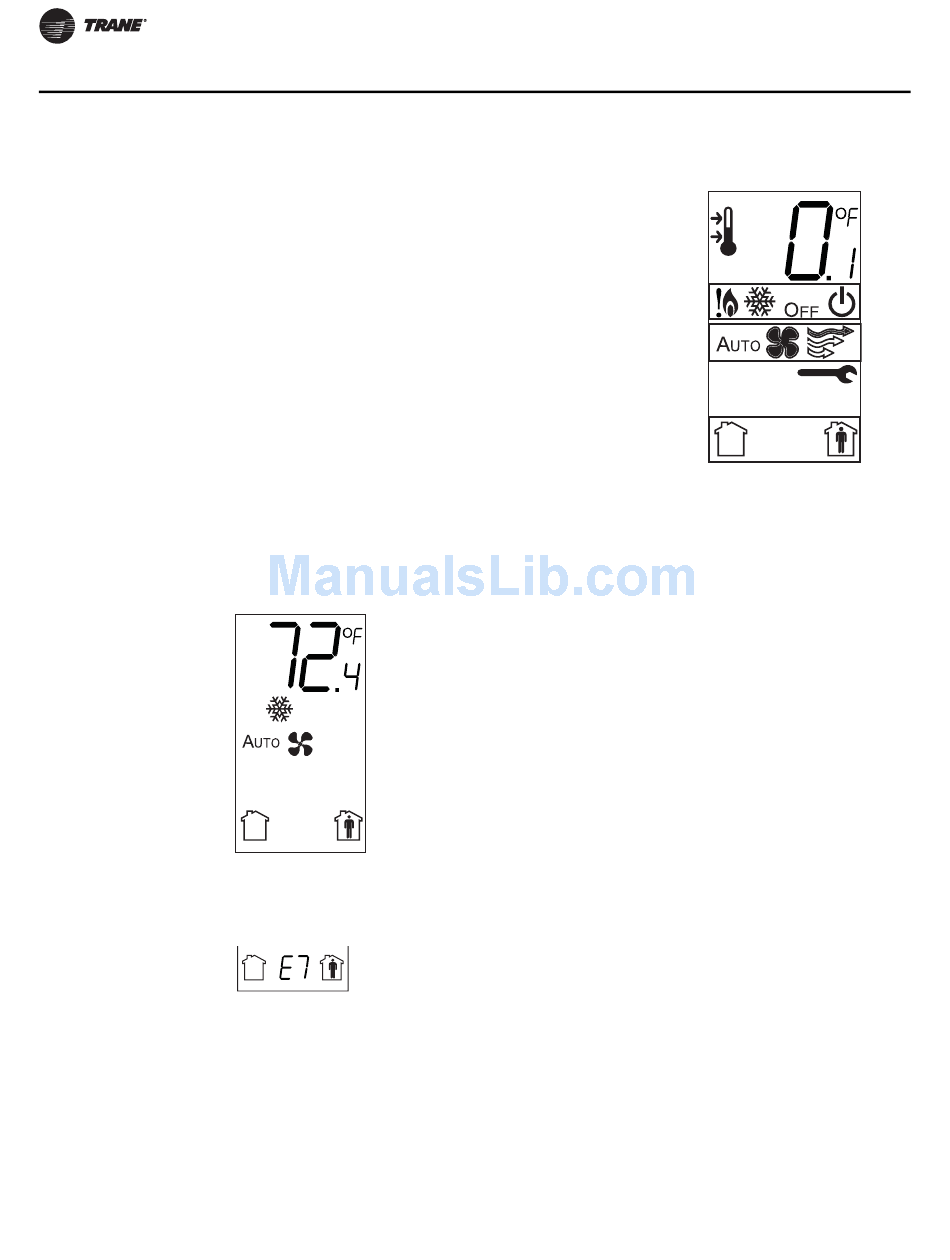

The example shows a display that has been configured for:
• Dual setpoint
• Temperature units (Fahrenheit)
• Temperature resolution to tenths of a degree
• System settings: Emergency Heat, Heat, Cool, Off
• Fan settings: Auto or On
• Occupied/unoccupied option enabled
Note: The sensor will revert to operating mode if no buttons are pressed for 10 minutes.
The following example shows a configured display in operating mode.
Display shows the following:
If an error code exists, it appears at the bottom of the display between the occupancy symbols,
as shown below. See
"Error codes, " p.
• Temperature units (Fahrenheit)
• Temperature resolution to tenths of a degree
• System setting: Cooling
• Fan setting: Auto
• Occupied/unoccupied option enabled
28, for error code definitions.
p.
11).
BAS-SVX10C-EN
