Adjusting the Display

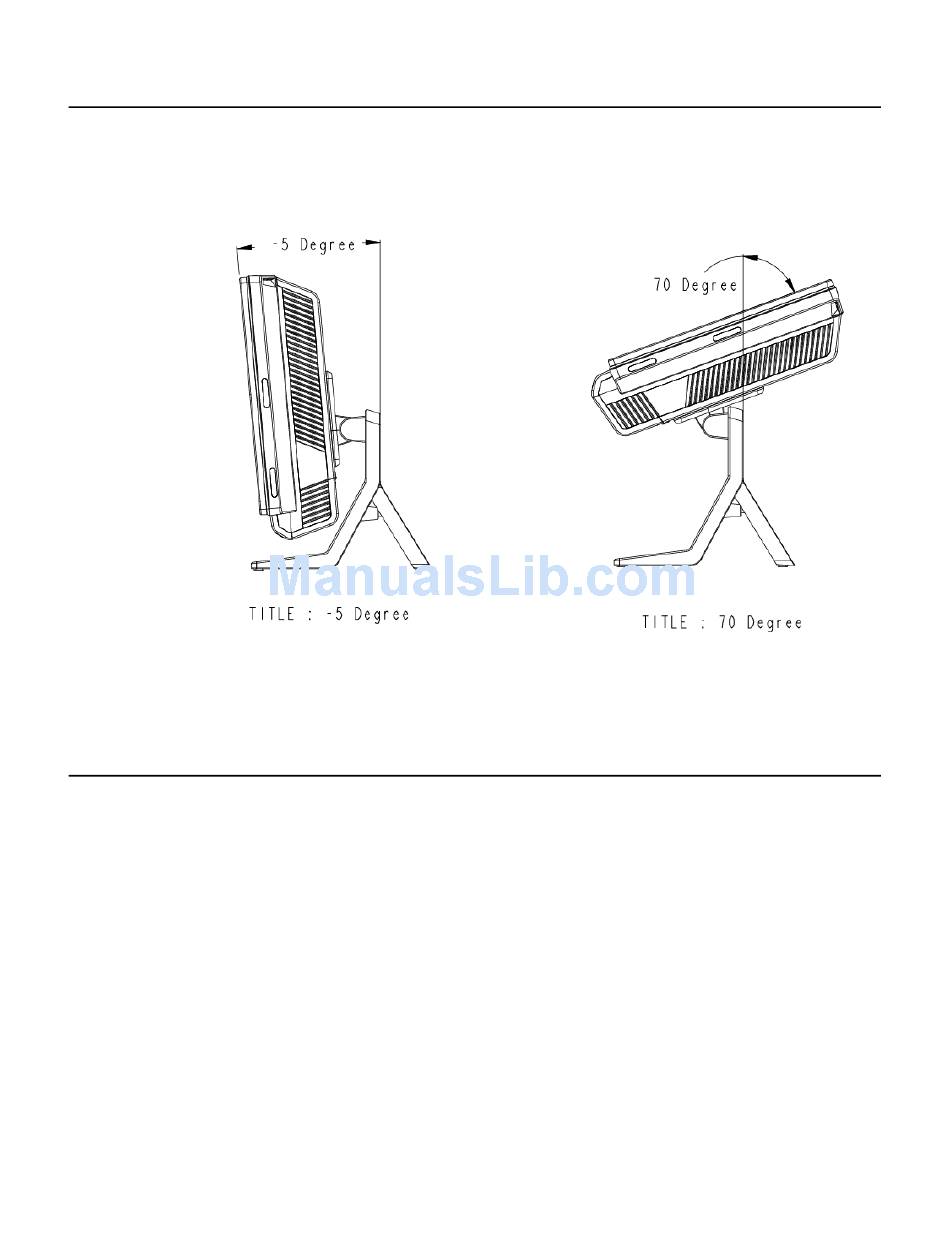

The display screen can be adjusted from -5 to 70 degrees, as shown below.
CAUTION:
the display.
Calibrating the Touchscreen
The touchscreen is pre-calibrated for accurate touch response.
If for any reason the touchscreen needs to be recalibrated, (For Windows XP)
right-click the Elo icon in the Taskbar and then click "Align" (for Windows XP), or
double-click the Elo Alignment shortcut on the system desktop (for Windows 7)
This launches the calibration program. The window shown below opens. Follow
the instructions to calibrate the touchscreen.
To prevent tipping or dropping, be sure to hold the base when adjusting
C-S
T
ERIES
OUCHCOMPUTER
U
G
2
SER
UIDE
