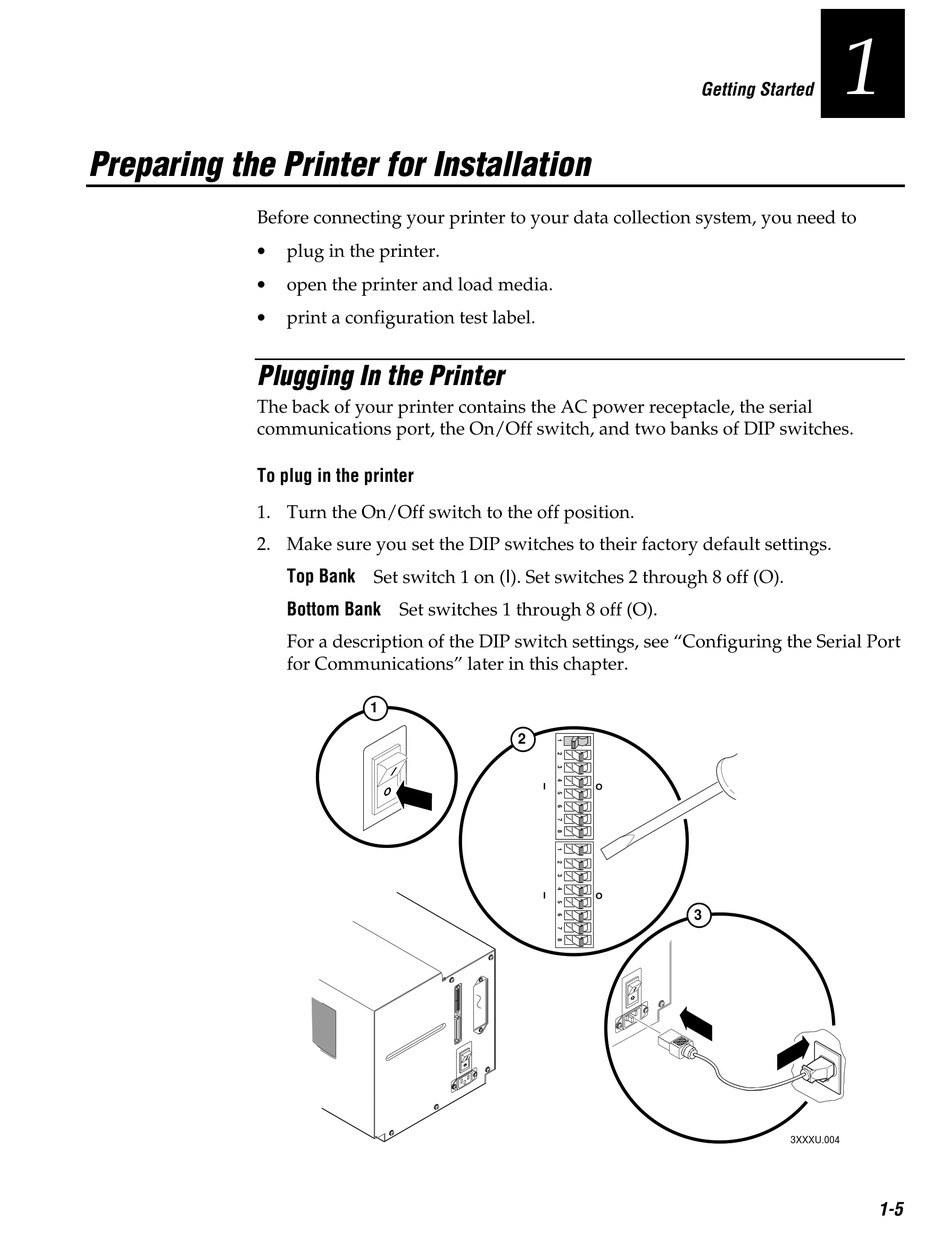

Preparing the Printer for Installation

Before connecting your printer to your data collection system, you need to

Plugging In the Printer

The back of your printer contains the AC power receptacle, the serial
communications port, the On/Off switch, and two banks of DIP switches.
To plug in the printer
1. Turn the On/Off switch to the off position.
2. Make sure you set the DIP switches to their factory default settings.
NugFont
HelvC
plug in the printer.
open the printer and load media.
print a configuration test label.
Top Bank Set switch 1 on (I). Set switches 2 through 8 off (O).
Bottom Bank Set switches 1 through 8 off (O).
For a description of the DIP switch settings, see "Configuring the Serial Port
for Communications" later in this chapter.
1
O
O
C o d e 39
2
I O
I O
3
O
1
Getting Started
3XXXU.004
