Outer Rails

Installing the Outer Rails to the Rack (Figures 2-3 and 2-4)
1. Attach the shorter outer rail to the outside of the longer outer rail. You must
align the pins with the slides. Both bracket ends must face the same direction.
2. Adjust both the shorter and longer rails to the proper distance so that the rail
fi ts snugly into the rack.
3. Secure the long bracket to the front side of the outer rail with two M5 screws
and the short bracket to the rear side of the outer rail with three M5 screws.
4. Repeat steps 1-4 for the left outer rail.
Secure to the
Front of the Rack

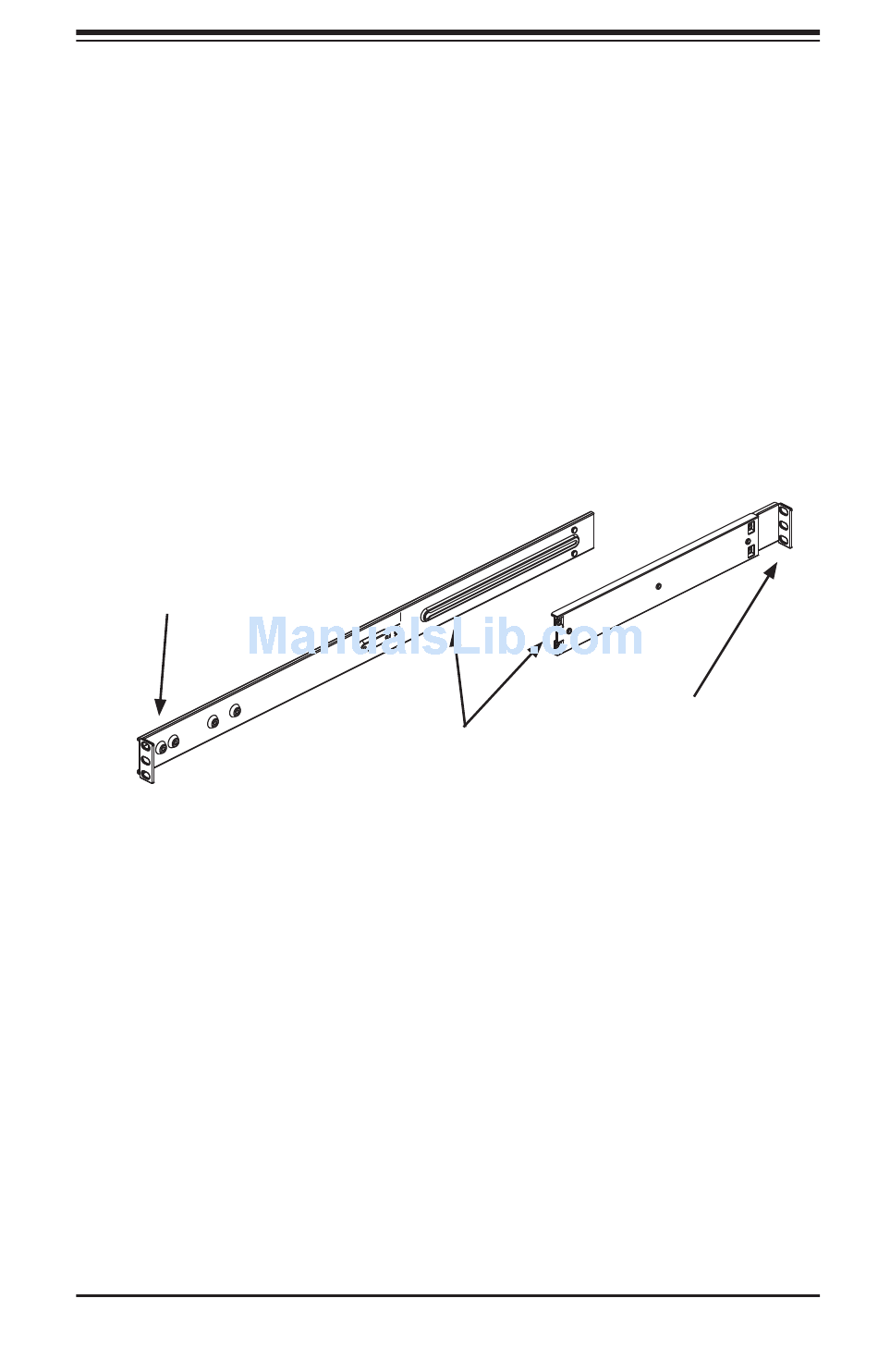

Figure 2-3. Assembling the Outer Rails
Attach Outer Rails
Together
2-7
Chapter 2: Server Installation
Secure to the
Rear of the Rack
