CONNECTION AND INSTALLATION

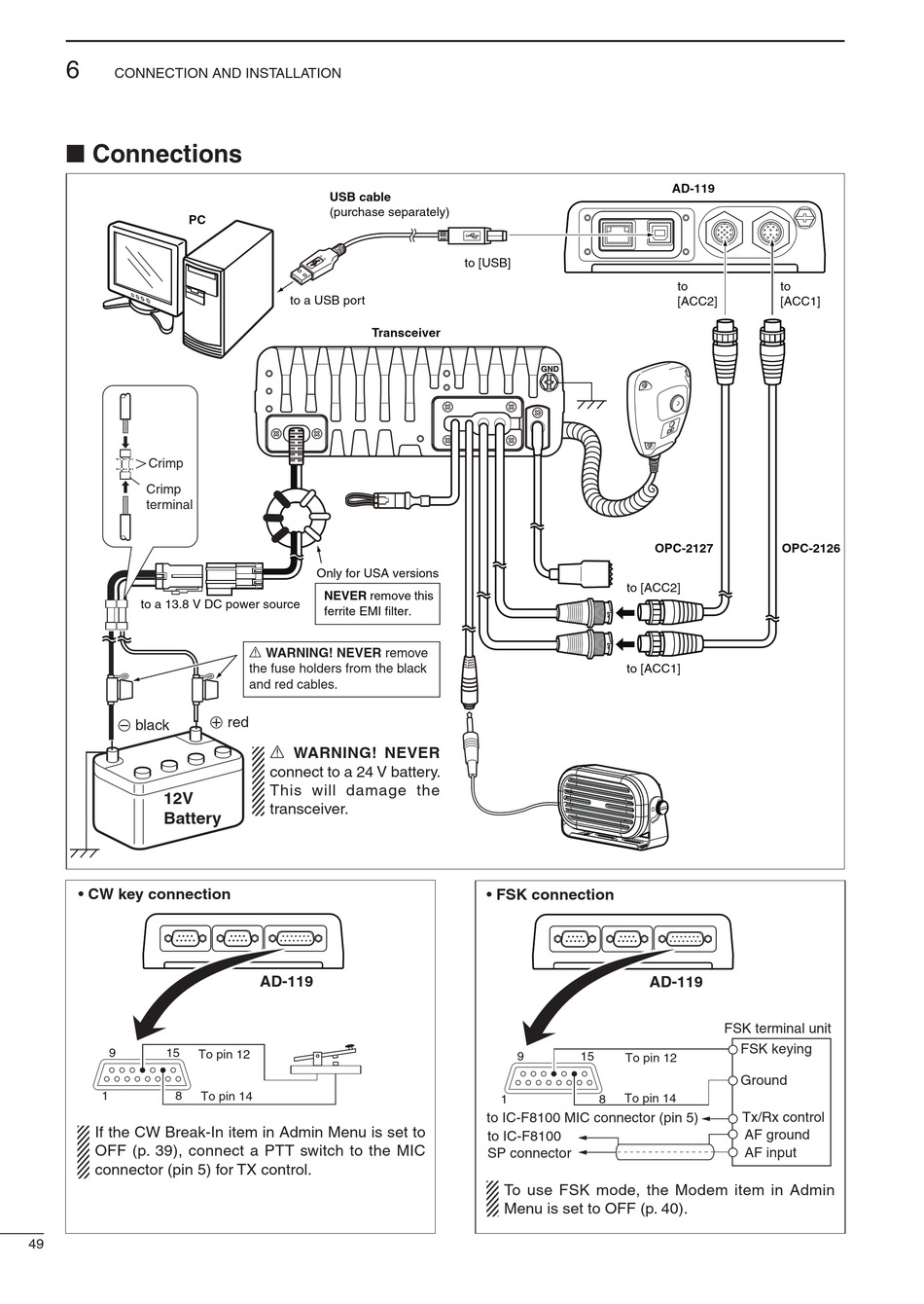

■ Connections

PC
Crimp
Crimp
terminal
to a 13.8 V DC power source
_ black
12V 12V
Battery Battery
• CW key connection
9 15
To pin 12
1 8
To pin 14
If the CW Break-In item in Admin Menu is set to
OFF (p. 39), connect a PTT switch to the MIC
connector (pin 5) for TX control.
49
USB cable
(purchase separately)
to a USB port
Transceiver
Only for USA versions
NEVER remove this
ferrite EMI filter.
R WARNING! NEVER remove
the fuse holders from the black
and red cables.
+ red
R WARNING! NEVER
connect to a 24 V battery.
This will damage the
transceiver.
AD-119
to [USB]
to [ACC2]
to [ACC1]
• FSK connection
9 15
To pin 12
To pin 14
1 8
to IC-F8100 MIC connector (pin 5)
to IC-F8100
SP connector
To use FSK mode, the Modem item in Admin
Menu is set to OFF (p. 40).
AD-119
to to
[ACC2] [ACC1]
OPC-2127 OPC-2126
AD-119
FSK terminal unit
FSK keying
Ground
Tx/Rx control
AF ground
AF input
