1

PANEL DESCRIPTION

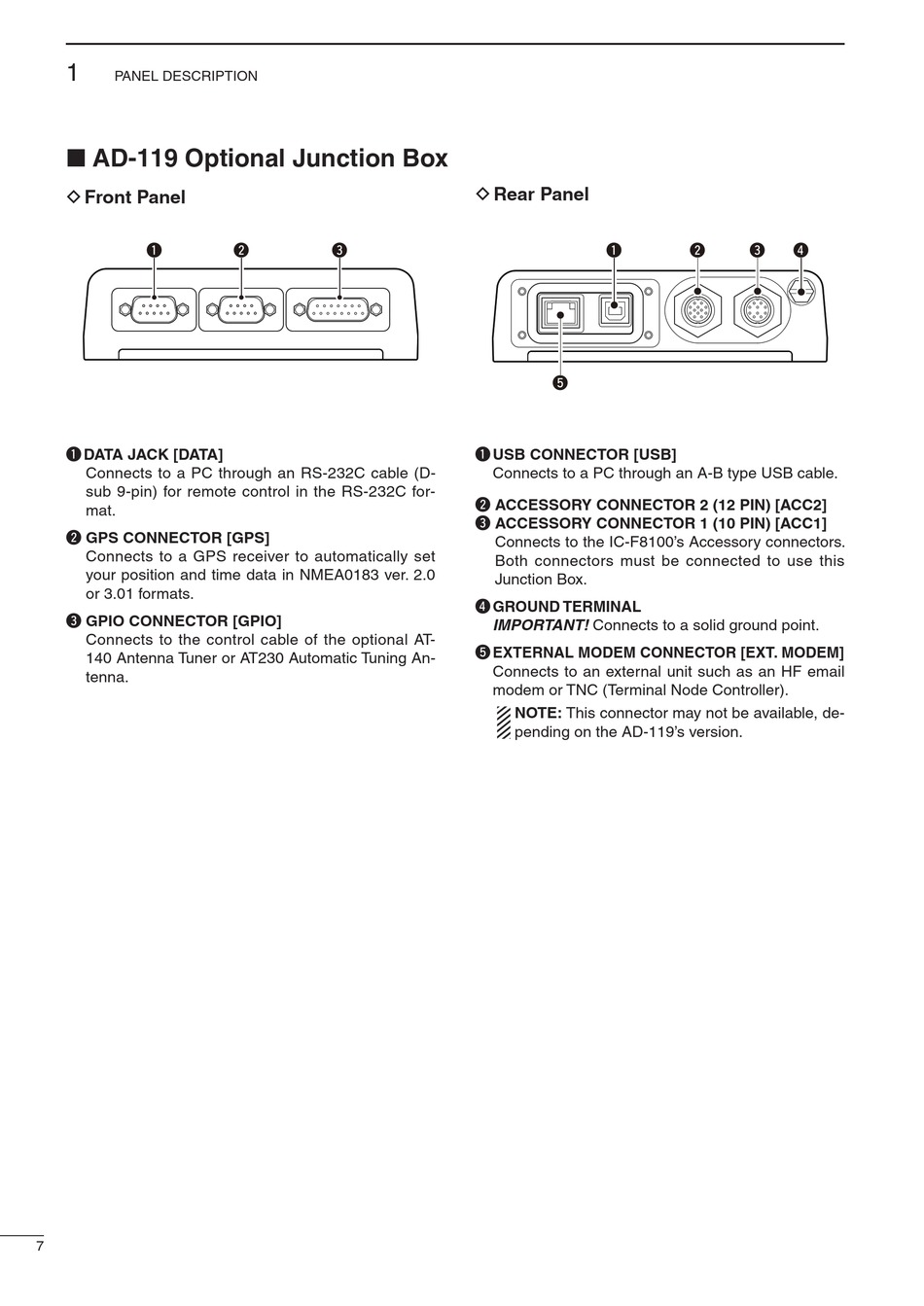

■ AD-119 Optional Junction Box
D Front Panel
q
q DATA JACK [DATA]
Connects to a PC through an RS-232C cable (D-
sub 9-pin) for remote control in the RS-232C for-
mat.
w GPS CONNECTOR [GPS]
Connects to a GPS receiver to automatically set
your position and time data in NMEA0183 ver. 2.0
or 3.01 formats.
e GPIO CONNECTOR [GPIO]
Connects to the control cable of the optional AT-
140 Antenna Tuner or AT230 Automatic Tuning An-
tenna.
7
w e
D Rear Panel
q
t
q USB CONNECTOR [USB]
Connects to a PC through an A-B type USB cable.
w ACCESSORY CONNECTOR 2 (12 PIN) [ACC2]
e ACCESSORY CONNECTOR 1 (10 PIN) [ACC1]
Connects to the IC-F8100's Accessory connectors.
Both connectors must be connected to use this
Junction Box.
r GROUND TERMINAL
IMPORTANT! Connects to a solid ground point.
t EXTERNAL MODEM CONNECTOR [EXT. MODEM]
Connects to an external unit such as an HF email
modem or TNC (Terminal Node Controller).
NOTE: This connector may not be available, de-
pending on the AD-119's version.
w e r
