CAUTION: DO NOT transmit continuously while
using an AT230, otherwise the AT230 will be dam-
aged.
AT-140
AT230
Ground
(see page 51)
Ground
(see page 51)
IC-F8100 main unit
to a 13.8 V
DC power source
to [ACC1]
to a
GPS receiver
AT-140
Ground
(see page 51)
to a 13.8 V
DC power source
to
[ACC1]
Ground
to [ACC2]
OPC-2205
OPC-2142
(10 m; 32.8 ft): 4 pin

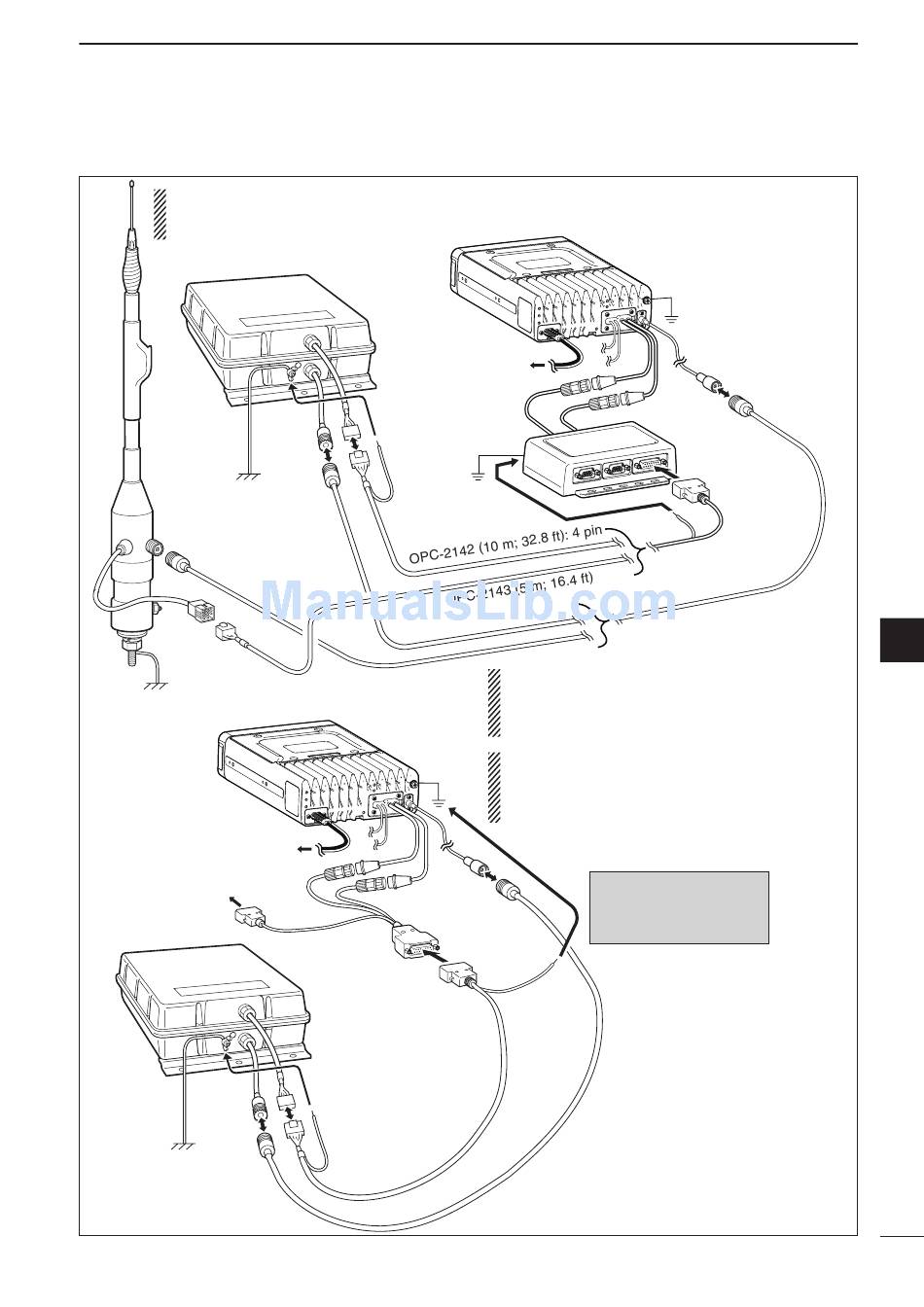

CONNECTION AND INSTALLATION
IC-F8100 main unit
to
[ACC2]
DO NOT pull the antenna and control cable re-
ceptacles. This may cause a cable disconnection
(in the tuner unit), inside connector damage or a
bad connection.
Wrap both the antenna and the control cable con-
nectors with rubber vulcanizing tape, and then
wrap electrical tape over the rubber vulcanizing
tape to help in waterproofing.
DO NOT stretch the Ground
wire. This may cause a
ground wire disconnection
and/or damage.
