5. If you are installing multiple cards, repeat steps 1 through 4 for
each card.
6. If you installed multiple cards, connect each of the cards with one
of the Genlock cables available in the multi-screen cable kit. Use
the Genlock cable with two, three, or four connectors, depending
on how many cards you installed.
For example, if you installed two cards, use the Genlock cable
with two connectors. Connect the two cards by pushing one
connector into the Genlock pin slot on the first card, and then
pushing the other connector into the Genlock pin slot on the
second card. The Genlock cable connectors are keyed for proper

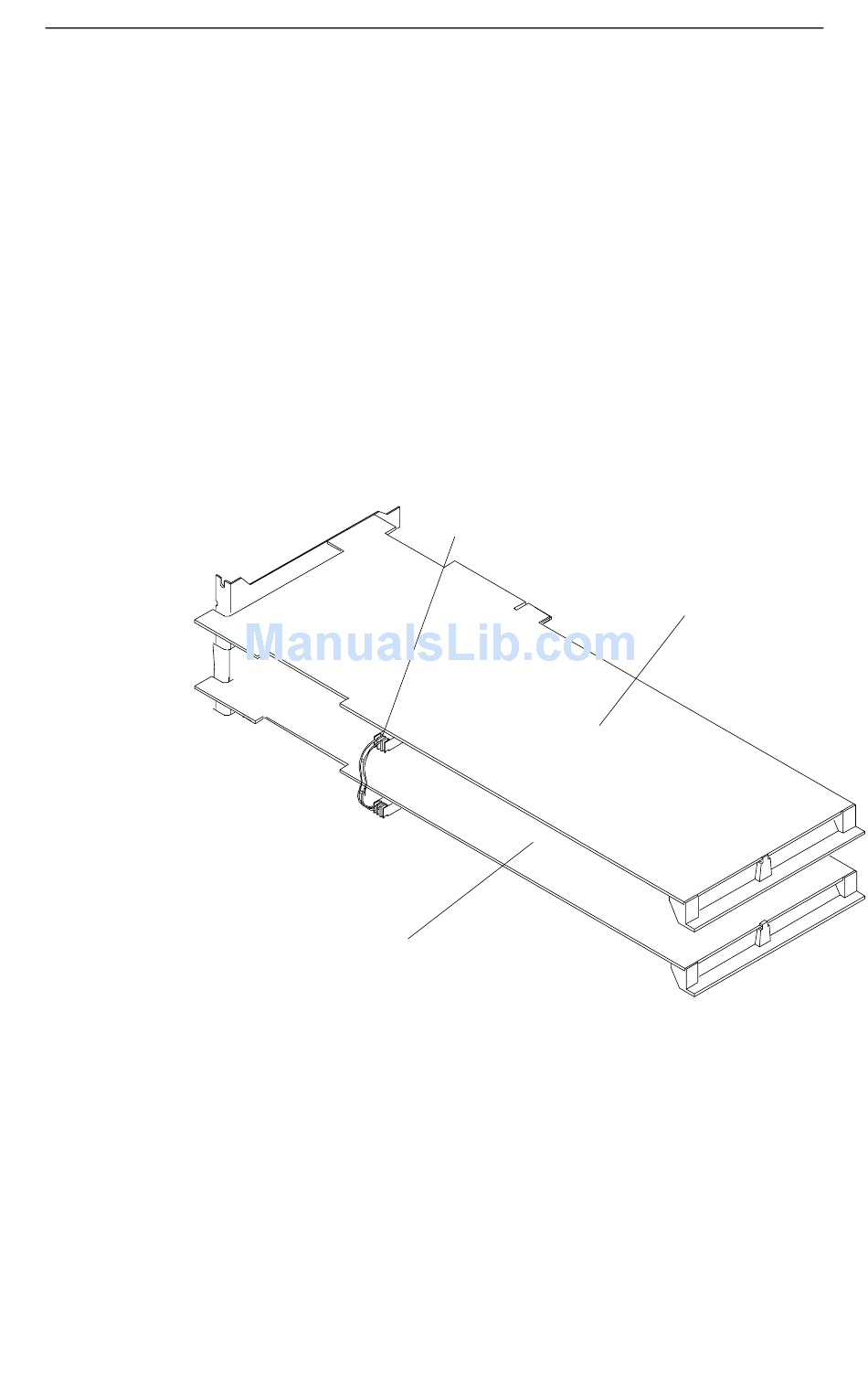

insertion. The following figure shows an example of connecting
two cards with a two-connector Genlock cable.
Finish the Installation
To finish the installation:
1. Close the computer.
2. Connect the computer monitor's video cable to the blue video
output port on the Intense 3D Pro 3400 card. See the following
figure.
Intense 3D Pro
3400 card
Genlock cable with
two connectors
Intense 3D Pro
3400 card
