5. If you are installing multiple boards, repeat steps 1 through 4 for
each board.
6. If you installed multiple boards, connect each of the boards with
one of the Genloc cables available in the multi-screen cable kit.
Use the Genloc cable with two, three, or four connectors,
depending on how many boards you installed.
For example, if you installed two boards, use the Genloc cable with
two connectors. Connect the two boards by pushing one connector
into the Genloc pin slot on the first board, and then pushing the
other connector into the Genloc pin slot on the second board. The

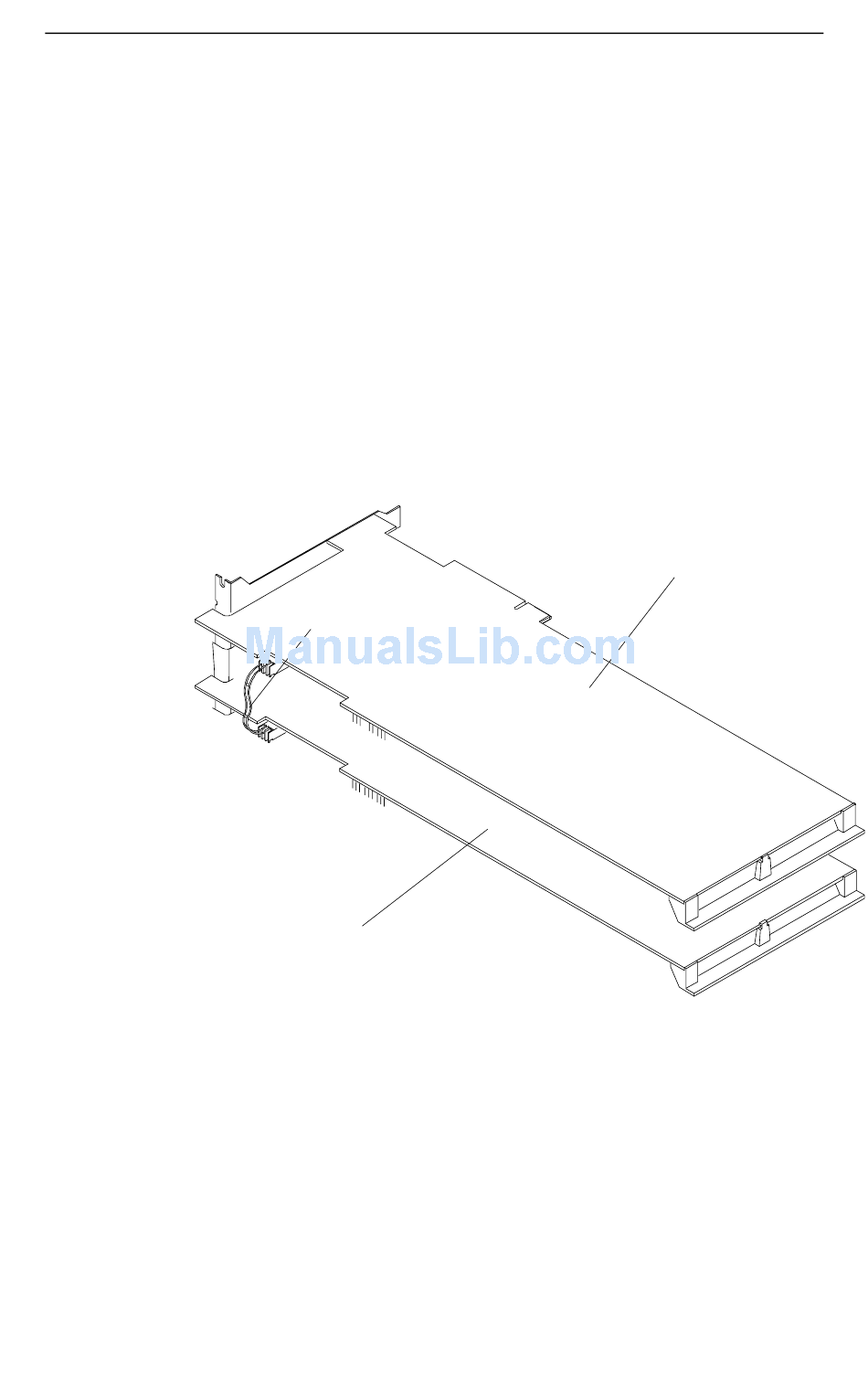

Genloc cable connectors are keyed for proper insertion. The
following figure shows an example of connecting two boards with a
two-connector Genloc cable.

Finish the Installation

To finish the installation:
1. Close the computer.
2. Connect the computer monitor's video cable to the blue video
output port on the Intense 3D Pro 2200S board. See the following
figure.
Genloc cable with
two connectors
Intense 3D Pro
2200S board
11
Intense 3D Pro
2200S board
