Intergraph Intense 3D Pro 3400 Installation Manual page 26

22

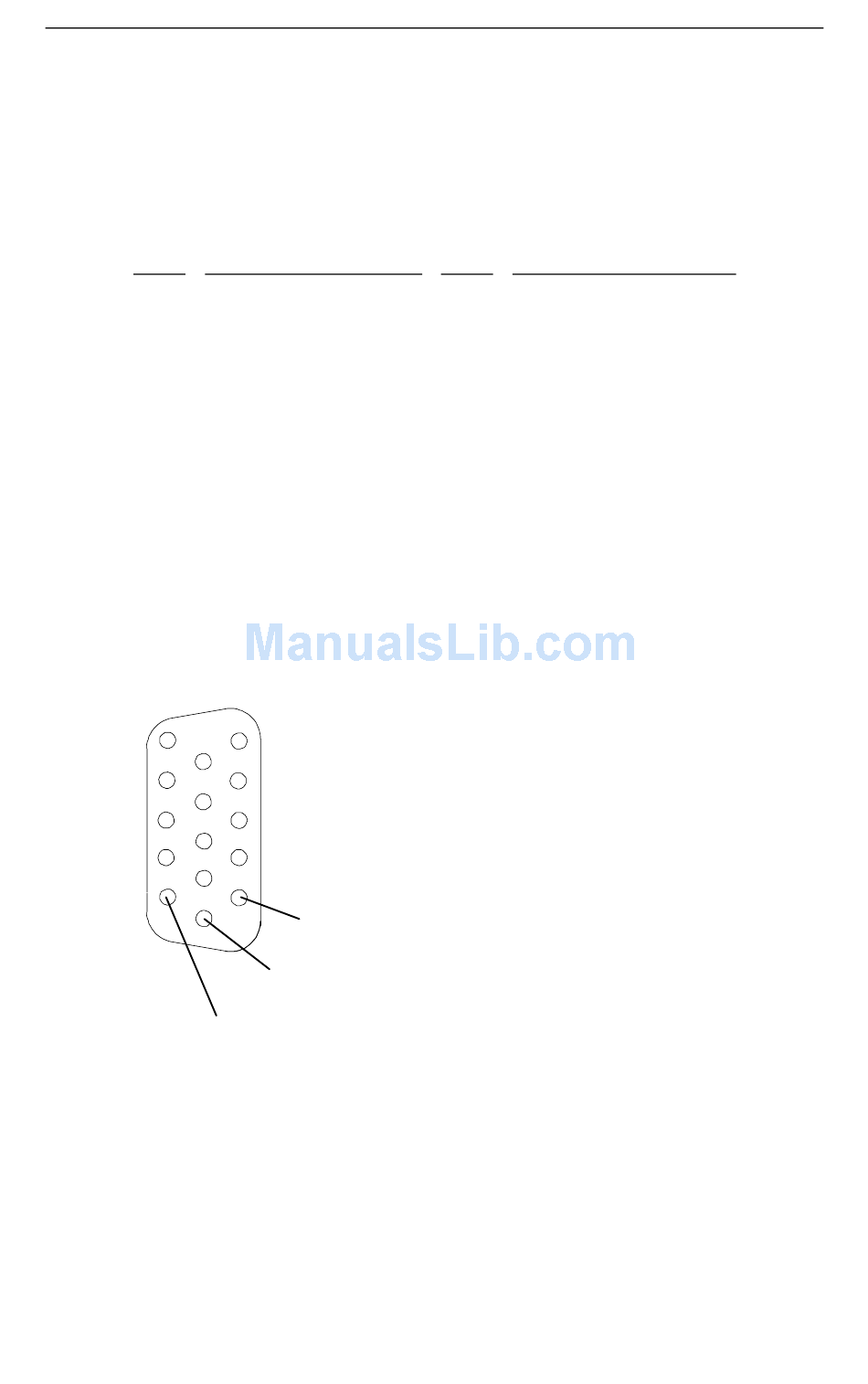

Video Output Port
The video output port is a blue, female, 15-pin, D-Sub connector. The
port provides connection to a computer monitor. The recommended
cable length is less than three meters.
Pin Signal Name
1 Red Analog Video
2 Green Analog Video
3 Blue Analog Video
4 Monitor ID (bit 2)
5 Ground
6 Ground
7 Ground
8 Ground
* Bidirectional Data (SDA) for DDC
** Data Clock (SCL) for DDC
1
6
11
Pin Signal Name
9 +5V Supply
10 Ground
11 Monitor ID (bit 0)
12 Monitor ID (bit 1) *
13 Horizontal Sync
14 Vertical Sync
15 Monitor ID (bit 3) **
