6. If you installed multiple cards, connect each of the cards with one
of the Genlock cables available in the multi-screen cable kit. Use
the Genlock cable with two, three, or four connectors, depending
on how many cards you installed.
For example, if you installed two cards, use the Genlock cable
with two connectors. Connect the two cards by pushing one
connector into the Genlock pin slot on the first card, and then
pushing the other connector into the Genlock pin slot on the
second card. The Genlock cable connectors are keyed for proper

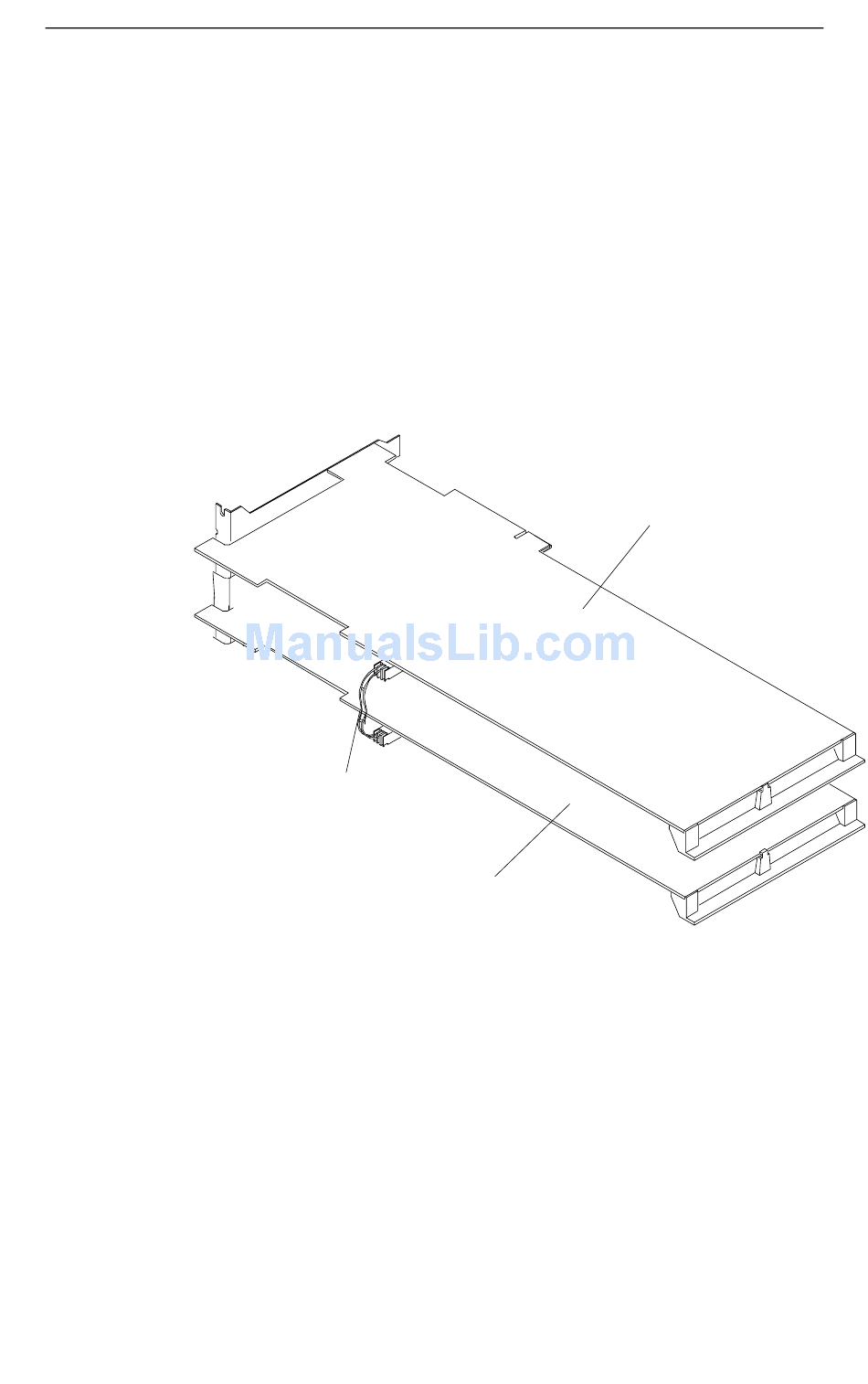

insertion. The following figure shows an example of connecting
two cards with a two-connector Genlock cable.
Genlock cable with
two connectors
Finish the Installation
To finish the installation:
1. Close the computer.
2. Connect the computer monitor's video cable to the blue video
output port on the Intense 3D Pro 3600 card. See the following
figure.
If you installed multiple cards for multiple screens, connect a
video cable from each computer monitor to the blue video output
port on each card.
Intense 3D Pro
3600 card
Intense 3D Pro
3600 card
