Power

MTCBA-H-EN2
Sleep: 0.180A, 1.665W @ 9V,
0.092A, 1.84W @ 20V,
0.061A, 1.958W @ 32V
Typical: 0.480A, 4.382W @ 9V,
0.230A, 4.60W @ 20V,
0.015A, 4.80W @ 32V
Max: 0.665A, 6.025W @ 9V,
0.310A, 6.175W @ 20V,
0.200A, 6.40W @ 32V

RF Specifications

GSM/EGSM RF Specifications
GSM 850
Frequency RX 869 to 894 MHz
Frequency TX 824 to 849 MHz
CDMA RF Specifications
CDMA 800
Frequency RX 869 to 894 MHz
Frequency TX 824 to 849 MHz

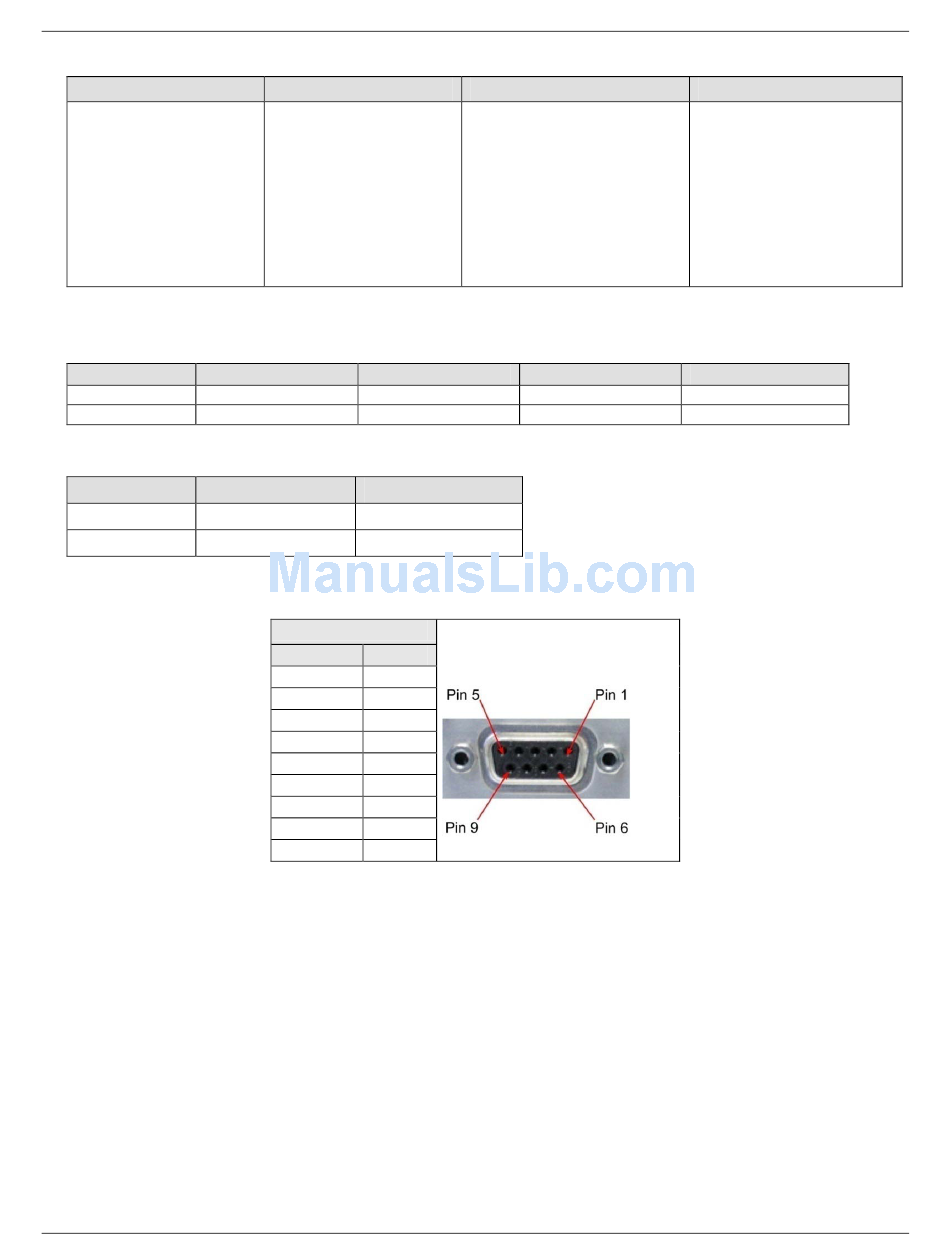

RS232 9-Pin Functions of the Female End Connector

The following table explains the pin functions.
Multi-Tech Systems, Inc. MultiModem rCell User Guide
MTCBA-G2-EN2
Sleep: 0.163A, 1.5W @ 9V,
0.082A, 1.6W @ 20V,
0.055A, 1.8W @ 32V
Typical: 0.240A, 2.2W @ 9V,
0.114A, 2.3W @ 20V,
0.077A, 2.5W @ 32V
Max: 0.340A, 3.0W @ 9V,
0.153A, 3.1W @ 20V,
0.100A, 3.2W @ 32V
Peak: 1.30A @ 9V, 0.518A @ 20V,
0.343A @ 32V
EGSM 900
925 to 960 MHz
880 to 915 MHz
CDMA 1900
1930 to 1990 MHz
1850 to 1910 MHz
External Power
Signal IN/OUT
Pin 1 CD O
Pin 2 RX O
Pin 3 TX I
Pin 4 DTR I
Pin 5 GND --
Pin 6 DSR O
Pin 7 RTS I
Pin 8 CTS O
Pin 9 RI O
Chapter 1 – Product Description and Specifications
MTCBA-E1-EN2
Sleep: 0.175A,1.6W @ 9V,
0.090A, 1.8W @ 20V,
0.060A,1.9W @ 32V
Typical: 0.277A, 2.5W @ 9V,
0.133A, 2.7W @ 20V,
0.089A, 2.8W @ 32V
Max: 0.506A, 4.5W @ 9V,
0.240A, 4.8W @ 20V,
0.150A, 4.8W @ 32V
Peak: 2.50A @ 9V, 1.00A @ 20V,
0.60A @ 32V
GSM 1800
1805 to 1800 MHz
1710 to 1785 MHz
Serial Cable
Female Connector
MTCBA-C1-EN2
Sleep: 0.186A,1.7W @ 9V,
0.091A, 1.8W @ 20V,
0.061A,1.9W@ 32V
Typical: 0.283A, 2.6W @ 9V,
0.137A, 2.7W @ 20V,
0.088A, 2.8W @ 32V
Max: 0.457A, 4.1W, @ 9V,
0.214A, 4.3W, @ 20V,
0.138A, 4.4W @ 32V
GSM 1900
1930 to 1990 MHz
1850 to 1910 MHz
9
