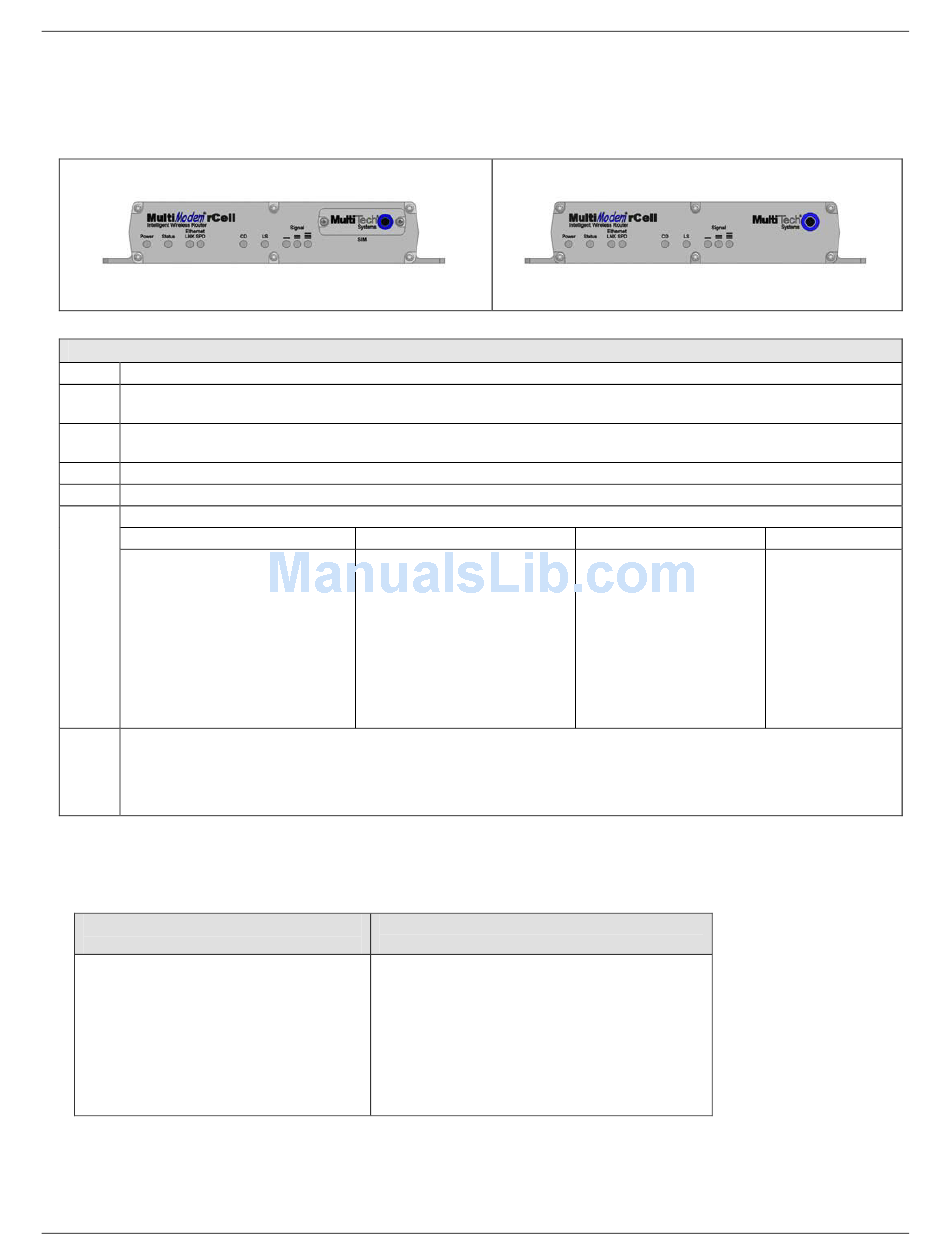

Front Panel

The front panel contains Power and Status LEDs, two Ethernet LEDs, two modem LEDs, and three signal LEDs. The Power
LED indicates that DC power is present and the Status LED blinks when the unit is functioning normally. The two Ethernet LEDs
indicate transmit and receive activity and connection speed of 10 or 100Mbps on the Ethernet link. The two modem LEDs
indicate carrier detection and link status. The three signal LEDs display the signal strength level of the wireless connection. The
SIM door on the right side of the router provides access to the SIM card holder on the MTCBA-H/G2/E1-EN2 versions.
Model MTCBA-H/G2/E1-EN2
Power Indicates presence of DC power when lit.
Status
The LED is a solid light when the rCell is booting up, saving the configuration, restarting, or updating the
firmware. When the Status LED begins to blink, the router is ready.
LNK Link. Blinks when there is transmit and receive activity on the Ethernet link. It shows a steady light when there is
a valid Ethernet connection.
SPD Speed. Lit when the Ethernet is linked at 100 Mbps. If it is not lit, the Ethernet is linked at 10 Mbps.
CD Carrier Detect. Lit when data connection has been established.
LS
MTCBA-H-EN2
Continuous "on" state
Indicates that the wireless
modem is registered on the
network.
Flashing state
Indicates attempted registration
on network.
Off state
Modem could not register
ALL OFF - Unit is off, not registered on network, or extremely week signal (0 < = RSSI < 6).
Signal
1 Bar "ON" – Very weak signal (7 < = RSSI <14)
1 Bar and 2 Bar "ON" – Weak signal (15 < = RSSI <23)
1 Bar, 2 Bar, and 3 Bar "ON" – Good signal (24 <= RSSI > = 31)

Package Contents

Unbundled Package with
No Accessories
1 router
1 Quick Start Guide
1 MultiModem CD
Note: You must supply mounting screws,
DC power supply, and an antenna.
Note: Your wireless provider will supply the SIM card.
Multi-Tech Systems, Inc. MultiModem rCell User Guide
LED Indicators
Line Status Dependent on Model
MTCBA-G2-EN2
Continuous "on" state
Indicates that the wireless
modem is not registered on
the network.
Flashing state
Indicates registration on
network.
Off state
Modem is off (not ready) or in
download mode.
Bundled Package
with Accessories
1 router
1 antenna
1 Ethernet cable
1 RS-232 cable
1 power supply
1 Quick Start Guide
1 MultiModem CD
Note: You must supply mounting screws.
Chapter 1 – Product Description and Specifications
Model MTCBA-C1-EN2
MTCBA-E1-EN2
Continuous "on" state
Indicates traffic between
the Provider and the
device.
MTCBA-C1-EN2
Non-functional
